Item#: N82E16817194110

ENERMAX REVOLUTION X't ERX430AWT 430W ATX12V 80 PLUS GOLD Certified Modular Active PFC Power Supply

  • ATX12V
  • Modular
  • 80 PLUS GOLD Certified
  • 100 - 240 V 47 - 63 Hz
  • ATX12V & EPS12V Power Supply

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
ENERMAX Power SupplyENERMAX Power Supply

Overview

REVOLUTION X't Series uses the best quality Japanese primary electrolytic capacitors, ensuring the best product stabilization. The powerful 12V rail provides outstanding compatibility for power hungry high-end GPUs while retaining superb power efficiency. REVOLUTION X't also designs to work under high-ambient @ 104°F (40°C) while maintaining continuous and stable power output. In terms of safety measures, REVOLUTION X't comes with advanced protection circuitries to the ensure optimal user experience, including: OVP (Over Voltage), OPP (Over Power), OTP (Over Temperature), SCP (Short-Circuit) and SIP (Surge and Inrush current). The additional CordGuard design also helps the user fixing the AC cord to avoid accidental shutdown of your PC.

Features

  • ATX12V v2.4 Ready!
    Compliant with the newest standard for desktop power supplies
  • World Famous Brand Main Electrolytic Capacitor
    Highest components standards for maximum durability and stability.
  • 24/7 @ 104°F (40°C) Ready!
    Non-Stop industrial class performance at 104°F (40°C) ambient.
  • World Ready!
    100-240VAC in with automatic adjustment and active PFC for global usage.
  • SafeGuard
    Industry-leading octuple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP.

Close-up Features

ENERMAX Power Supply

High efficiency performance certified to meet 80 PLUS® GOLD requirements.


ENERMAX Power Supply

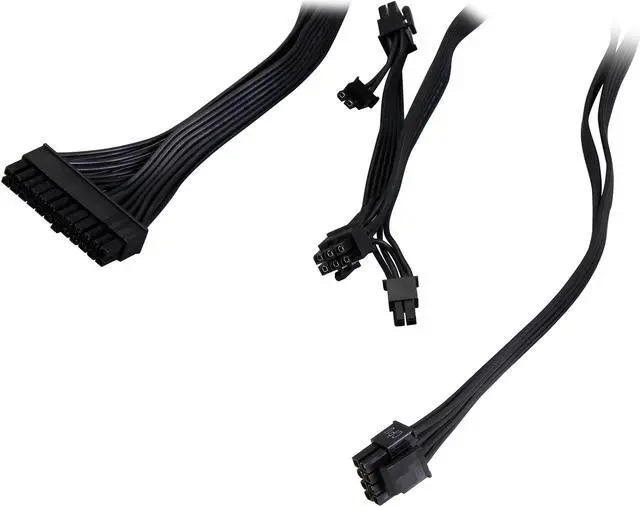

Hybrid Modular & 100% Flexible Flat Cable Design

Facilitate system installation, reduce cable clutter, and enhance internal airflow and cooling performance

ENERMAX Power Supply

Twister Bearing Fan

  • A. Minimal contact area for effective noise reduction.
  • B. Rotor with integrated magnet for frictionless and smooth motion.
  • C. Self-lubricating bearing material abrasion protection for longer lifetime.
ENERMAX Power Supply

ErP Lot 6 2013 Ready!

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.

*With ErP Lot 6 2013 enabled motherboard.

ENERMAX Power Supply


SpeedGuard

Advanced fuzzy logic fan speed control for optimal cooling and minimum noise. (Patented)

ENERMAX Power Supply


HeatGuard

After shut-down, HeatGuard will keep PSU fan running for 30-60 seconds to dissipate the remaining system heat and prolonging lifetime.

ENERMAX Power Supply


CordGuard

Fix the AC cord tightly to avoid accidental shutdowns of your PC.

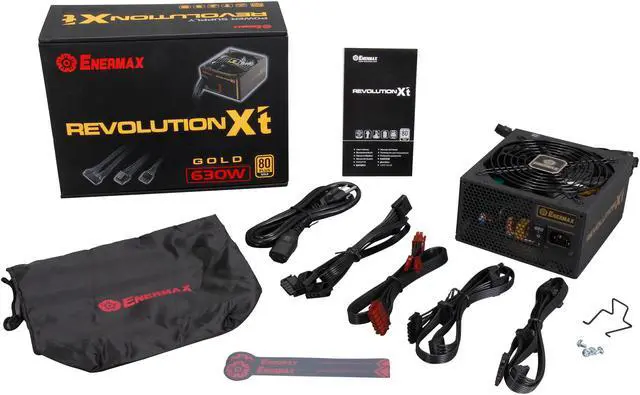

What's in the Box

ENERMAX Power Supply

Comparison with other model

  ENERMAX Power Supply ENERMAX Power Supply ENERMAX Power Supply ENERMAX Power Supply
Model ERX430AWT ERX530AWT ERX630AWT ERX730AWT
Dimensions 5.9 x 3.3 x 6.2 inches (150 x 86 x 160mm) 5.9 x 3.3 x 6.2 inches (150 x 86 x 160mm) 5.9 x 3.3 x 6.2 inches (150 x 86 x 160mm) 5.9 x 3.3 x 6.2 inches (150 x 86 x 160mm)
Wattage 430W 530W 630W 730W
80 PLUS
Certification
Gold Gold Gold Gold
Cables Modular Modular Modular Modular
Connectors
CPU 1 1 1 1
PCI-E 2 2 4 4
SATA 8 8 8 8
Peripheral 5 5 5 5


Learn more about the Enermax ERX430AWT

Warranty, Returns, And Additional Information

Customer Reviews of the Enermax ERX430AWT

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Benjamin C.
  • 5/23/2016 10:58:59 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsWorking well, but the 630W version disappeared?

Pros: Its been running smooth way past the 30-day mark. No problems with it whatsoever. I love the fact that the fan will continue some time after shutdown/sleep to make sure everything gets cooled off nicely.

Cons: I have a 630W version of this... so I suppose this is a weird power supply considering there is only the 430W version available now? Makes me scared about my purchase. Why was it retracted? Is there something I should be worried about?

Other Thoughts: I hope this thing doesn't blow up in my face with the sudden discontinue of my version. I also saw they did the same thing with a EU only model. Inconsistency can be scary.

Also had to add this version to Game Debates, so if no one else can get it I suppose it was pointless...

Did you find this review helpful? Yes No

  • Anonymous
  • 10/11/2015 8:25:30 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggs

Pros: Nice price

Cons: This power supply will fail at 400-500 watts load. I know plus gold means 87% expected real wattage out of total wattage at 100% load, but this unit fails at least at around 75-80%. At least mine does. RMA is in the process. Let's see how it goes.

Also the fan hits the grill and that's a design malfunction. I looked online and it seems to be a common problem.

1 out of 1 people found this review helpful. Did you? Yes No

  • Gian G.
  • 5/25/2015 2:40:05 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGood so far

Pros: Was able to connect everything I needed to. I also saw that it comes with extra cables for a second graphics card if you have 2. It has a bunch of sata cables.

Cons: Nothing so far, but if it quits on me I'll update here.

Other Thoughts: Not really

Did you find this review helpful? Yes No

  • RACHEL R.
  • 3/22/2015 8:44:22 AM
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggs

Pros: Has a good number of cables. Seems sturdy, and was a good price for the wattage. 80 Gold certified.

Cons: As others have mentioned, the 24-pin mobo cable would not fully connect to my ASRock B85 Anniversary motherboard. I don't move my PC around much, and I've had no power-downs yet, but no PSU should have this problem.

1 out of 1 people found this review helpful. Did you? Yes No

  • Shah K.
  • 2/18/2015 7:43:25 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsNot bad!

Pros: -Powerful enough
-Efficient
-Advanced Features
-Its cost to me
-Silent

Cons: None

Other Thoughts: -I have hooked it to a normal system so its powerful enough for me.
-The extra features are great
-It also looks great in a white case
-Got it for $45 after rebate and sale
-It was my first high-endish psu and am very impressed with it
-Would definitely recommend it!

Did you find this review helpful? Yes No

  • Paul M.
  • 1/31/2015 9:14:46 AM
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggsThe ERX630AWT became nauseatingly noisy after five days.

Pros: This power supply is solidly built and I had no installation issues on a bottom install into a Cooler Master HAF XM case. I had no cabling issues as others experienced all cables had sufficient length.

Cons: No negatives for five days, when the ERX630AWT it turned nauseatingly noisy. There is no uncertainty that the sounds originate from the power supply because I temporarily disconnected all case and cooler fans.

Other Thoughts: I will have to purchase another ERX630AWT and return the sick one for a refund because I am not in a position to take the computer out of service for one to two weeks.
I will have to work with earplugs in the meanwhile.

Did you find this review helpful? Yes No

  • THANKS Y.
  • 12/22/2014 8:17:26 AM
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsSemi-modular, good for bottom-install

Pros: Good value. For the price (when it was on sale) this comes across as a well built power supply. Ribbon-style cabling for all power is nice and could allow better wire management.

Cons: Video card power cable is too short for a top-PSU configuration with well-routed wiring. Fan grill on bottom (intended as top) extends outside the normal rectangular profile of a supply and does not allow installation of the supply through the rear opening on a Lian-Li PC60 case

Other Thoughts: This is a supply clearly meant for installation at the PCI end of a motherboard. In a top installation, the graphics card power cable does not have enough slack for adequate cable management. Likewise, the 4+4 and ATX cables come across as excessively long. It is probably intended to be usable in either scenario (top or bottom install), but I would say you'll have a hard time hiding the video card cable or even tucking it out of the way with this supply.

The bottom-install does become a bit more evident with the SATA power cables. The orientation of the connectors on the ribbon cause them to be the reverse of a typical horizontal drive. This means you'll need to run the first connector down to the bottom device being powered and back track towards the top of the case, or twist the ribbon to make it mate at the top and run a loop between each device to make each mate.

In addition to this, the connector makes it difficult to connect two 3.5" disks that are adjacent, and almost impossible to connect to a small disk (2.5" ssd) in a 5.25" bay adjacent to an optical drive. The bend radius on the ribbon is fairly large for these tight quarters, but I may be able to remedy that by working the cable a bit to add some flex.

The ribbon-style is great and allows you to bundle the groups flat, but with the base 4+4, ATX, and two 6+2 video card cables non-modular, there's no chance of not having extra connections dangling (unless your card needs two 8-pin power connectors, and your motherboard uses a full 4+4 pin power). On top of that, the ATX power, with so many connections ends up as a small bundle of ribbon cables, which is better than the alternative of one giant ribbon that would remind us all of the days of IDE daisy chains and floppy drive ribbon cables and trying to manage those.

Overall, I'm happy with it for the price I paid (Black Friday sale plus a $30 MIR), but at the $100 price tag it is currently listed as, I would pass on it. The location of the UPC for rebate purposes is in one of the worst spots possible to get to, but that doesn't really reflect on the product.

I've only installed it recently, so I can't speak to its reliability or stability of supply voltages.

Did you find this review helpful? Yes No

  • Sean T.
  • 12/16/2014 11:01:58 AM
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: Still like the Enermax features like the fan that continues running and cooling the PSU. Also pulls hot air down away from the video card.

The modular cables are effective, as I didn't need the 4th standard cable.

Cons: The 8pin video card cables were a bit hard to connect. Cable could have been a little longer.

Did you find this review helpful? Yes No

  • Peter L.
  • 11/25/2014 7:05:20 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsGood, but with a major flaw.

Pros: - The build quality is excellent. This PSU feels like a tank.
- Visually appealing. Has a rugged and textured exterior with handsome gold logos and badges.
- All cables are black ribbon style that look great in any system.
- Does not use annoying 22+2 ATX cables.
- Love the HeatGuard concept: the PSU fan continues to spin for a minute or so after the system has been shut off to expel any residual heat. It's like a turbo timer for your PSU! This feature works well with ThermalRadar equipped motherboards that have a similar feature.
- 630W is the perfect amount of power for maximizing efficiency with any single GPU setup.
- Mounting holes for both orientations.
- NO COIL WHINE under any load!

Cons: - Terrible fan. First unit I received chirped loudly and consistently under any load. As someone who adores silence when not gaming, this drove me insane.
- Terrible fan. The second unit I received made a grinding noise under any load. Again, drove me insane.
- Terrible fan. Enermax should look into adopting auto-start/stop fans which many companies are now employing.

Other Thoughts: - Not a pro or con, but the 24-pin ATX, 4+4-pin CPU, and 2x6+2 PCI-E cables are hard wired to the PSU. Some prefer fully modular cables, while other's see no hard in having absolutely necessary cables permanently attached.

- Even after snagging this PSU for an amazing price during a ShellShocker, I could not forgive Enermax for the lousy fans. As a result, I am now dabbling with fanless solutions and have no desire to turn back.

- I wish more companies would adopt ideas like HeatGuard especially for those that game late into the night. We usually find ourselves shutting the computer off immediately after realizing how late in the night it is. It brings peace of mind to know that components in my rig will continue to efficiently dissipate heat while it is off.

Did you find this review helpful? Yes No

  • Richard K.
  • 11/18/2014 7:09:49 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat PS

Pros: Working well for a little more than a month. Very quiet and no problems so far. Semi-modular design and flat cables are a plus.

Cons: None

Other Thoughts: Would definitely recommend this PS.

Did you find this review helpful? Yes No
