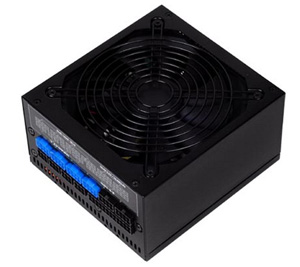

SilverStone "Strider Plus" 850W 80 PLUS Silver Certified Power Supply
The Strider Series - the oldest and most versatile power supply line from SilverStone - has models with myriad innovative features and rating from 350W all the way up to 1500W. SilverStone engineered a new generation of power supplies that combine more important features than ever before.
The SilverStone ST85F-P is highly efficient (80 PLUS Silver level), compact enough to fit in nearly any system (160mm depth), has tightly regulated performance of ±3% from a single +12V rail design, and equipped with a quiet but cool 135mm fan. To top these features off, the power supplies also come with 100% modular cables with all the important connectors to support current and future graphics card specifications. For enthusiasts that are looking for a power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus model will fulfill the task with maximum satisfaction.
Highlights
- 850W 24-hour continuous power output with 104°F (40°C) operating temperature
- 950W Peak power
- 100% Modular cables
- Efficiency 85 - 88% at 20 - 100% loading
- Class-leading single +12V rail with 67A (peak 72A)
- Strict ±3% voltage regulation and low ripple & noise
- Japanese main capacitors
- Silent running 135mm fan with 19dBA minimum
- Dual EPS 8-pin connectors support
- Dual PCI-E 8-pin and four PCI-E 6pin connectors support
- Support ATX 12V 2.3 & EPS 12V
- Active PFC
Features

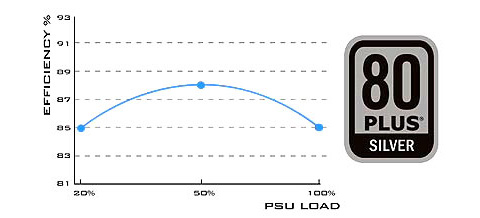

Designed for 80 PLUS Silver level of efficiency to reduce wasted heat and save on electricity.

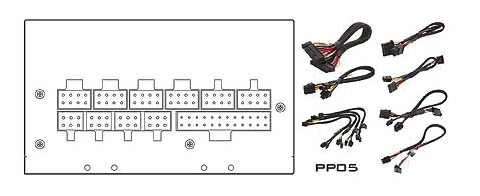

100% Modular cable design for use with short cable kit - such as SilverStone's PP05 - for easy removal in a case with cable routes and tie-downs.

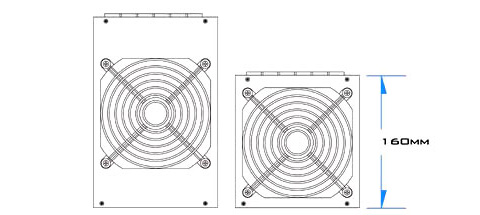

160mm Depth sets new standard for high wattage PSUs with modular cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

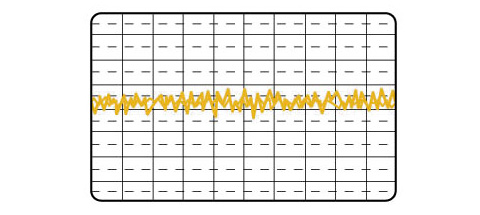

±3% Regulation and low ripple & noise perfomance for high stability.

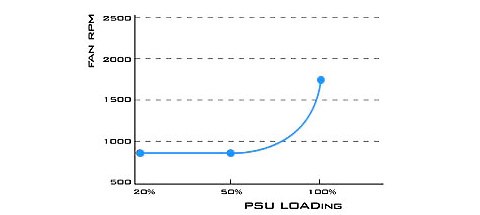

Built-in 135mm fan has excellent airflow and low noise, perfect for quiet home or office use.

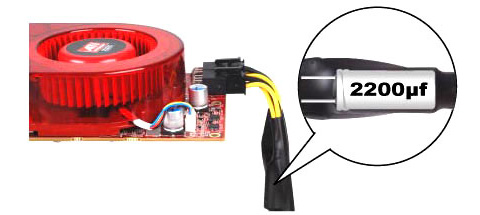

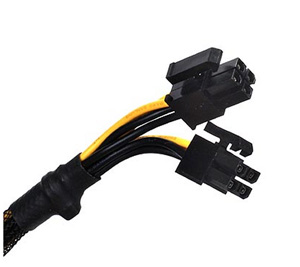

To reduce electrical whine/buzz associated with a high performance graphics card's dynamic loading changes, 2200uF capacitors are attached to PCI-E connectors. This design also helps to maintain better voltage stability and improve ripple & noise performance.

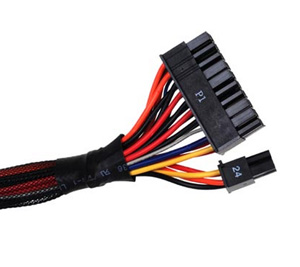

24 / 20-pin motherboard connector x 1

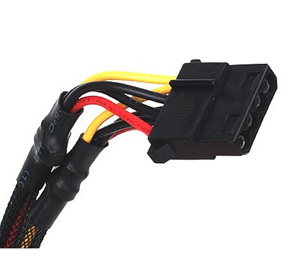

4-Pin peripheral connector x 6

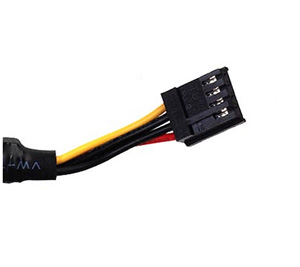

SATA Connector x 6
4-Pin floppy connector x 2
6-Pin PCI-E connector x 2
4 + 4-Pin EPS12V / ATX12V connector x 2

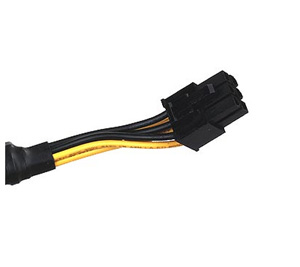

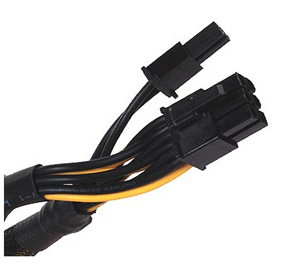

8/6-pin PCI-E connector x 2

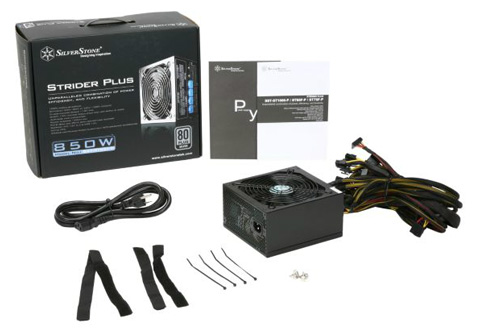

What's in the Box
