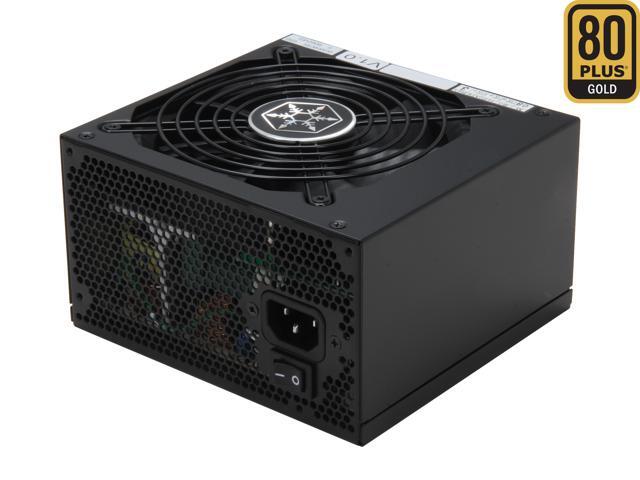

SILVERSTONE ST65F-G 650W ATX 12V v2.3 / EPS 12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Full Modular Active PFC Power Supply

Ships from United States.

Sold and Shipped by Newegg

ATX 12V v2.3 / EPS 12V
Full Modular
80 PLUS GOLD Certified
90 - 264 V 47 - 63 Hz
+3.3V@22A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@2.5A

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

INTRODUCTION

To meet the ever higher requirements imbued by professional users and enthusiasts alike, SilverStone created the Strider Gold series power supplies. The Strider Gold models are built on similar platform as the award-winning Strider Plus series but with even higher efficiency ratings.

The Strider Gold series will encompass Wattage ranging from 550 to 1200 for a great variety of applications. With a 140mm depth for easy intgration, the ST65F-G is the world's shortest modular ATX PSU. In addition to 80 PLUS Gold level efficiency, all models are built to meet very high standards in electrical performance so they have ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features also included are 24/7 104°F (40°C) continuous output capability, low-noise 120mm fan, and multiple sets of PCI-E cables. For users looking for a power supply with a faultless combination of performance, efficiency, and quality, there is no need to look beyond the Strider Gold Series.

SPECIAL FEATURES

Compact design with a depth of 140mm for easy integration
80 PLUS Gold certification with higher efficiency 87 - 90% at 20 - 100% load
100% Modular cables
650W (700W peak power) 24-hour fully continuous power output with 104°F (40°C) operating temperature
Class-leading single +12V rail with 54A
Strict ±3% voltage regulation and low ripple & noise
Silent running 120mm fan with 18dBA minimum

DETAILS

1. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

2. 100% Modular cable design for use with short cable kit such as SilverStone's PP05 or for easy removal in a case with cable routed and tied down.

3. 140mm depth sets new standard for high Wattage PSUs with modular cables.

4. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

5. ±3% regulation and low ripple & noise performance for high stability.

6. Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.

GALLERY

SPECIFICATIONS

Model No.	SST-ST65F-G
Max. DC Output	650W (Peak 700W)
Load Range
	+3.3V	+5V	+12V1	+5VSB	-12V
Max. (Amps)	22A	20A	54A	2.5A	0.3A
Peak (Amps)	/	/	57A	3.5A	/
Min. (Amps)	0.2A	0.2A	0.3A	0A	0A
Range (%)	±3%	±3%	±3%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple (mVp-p)	50mV	50mV	120mV	50mV	120mV
Combined +3.3, +5V	150W
Combined +12V	648W / 54A
Input Voltage	90 ~ 264V
Input Frequency Range	47 - 63Hz
PFC	Active PFC (PF >0.95 at full load)
Efficiency	87 - 90% at 20 - 100% load
MTBF	100,000 hours at 77°F (25°C), full load
Operating Temperature	32 - 104°F (0 - 40°C)
Protection	Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Under voltage protection Short Circuit Protection No Load Protection
Connectors	1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 2 x 8 / 6-Pin PCIE connector (550mm) 2 x 6-Pin PCIE connector (550mm / 150mm) 8 x SATA connector (500mm / 150mm / 150mm) 6 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 2 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Color	Black (lead-free paint)
Cooling System	Single 120mm silent fan
Noise Level	18dBA minimum
Dimensions (W x H x D)	6 x 3.3 x 5.5 inches (150 x 86 x 140mm)
Weight	5.2lbs (2.35kg)
Certification	80 PLUS Gold

Learn more about the Silverstone ST65F-G

Model

Brand: SILVERSTONE

Model: ST65F-G

Details

Type: ATX 12V v2.3 / EPS 12V

Maximum Power: 650W

Fans: 1

PFC: Active

Main Connector: 20+4Pin

+12V Rails: Single

PCI-Express Connector: 2 x 6-Pin, 2 x 6+2-Pin

SATA Power Connector: 8

SLI: SLI Ready

Haswell Support: Yes

CrossFire: CrossFire Ready

Modular: Full Modular

Efficiency: 87%~90% at 20%~100% loading

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Input Voltage: 90 - 264 V

Input Frequency Range: 47 - 63 Hz

Output: +3.3V@22A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@2.5A

MTBF: 100,000 hours at 25 Degrees C (at Full Load)

Dimensions: 5.91" x 3.39" x 5.52"

Weight: 5.18 lbs.

Features

Connectors: 1 x 24 / 20-Pin motherboard connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIE connector
2 x 6-Pin PCIE connector
8 x SATA connector
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector

Features: Compact design with a depth of 140mm for easy integration

80Plus Gold certification with higher efficiency 87%~90% at 20%~100% loading

100% modular cables

650W (700W peak power) 24hour fully continuous power output with 40? operating temperature

Class-leading single +12V rail with 54A

Strict +3% voltage regulation and low ripple & noise

Silent running 120mm fan with 18dBA minimum
