Item#: N82E16817371003

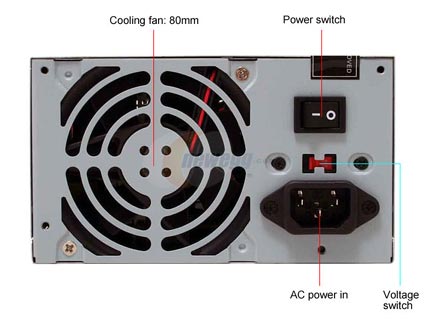

Antec Basiq BP350 350W ATX12V v2.01 Power Supply

  • ATX12V v2.01
  • 115 / 230 V
  • 1 x 80mm low noise cooling fan
  • Pin It
  • Email this page
ICON Loading...

Antec took years of experience and knowledge in building world-class power supplies and went back to the Basiq. The Antec Basiq BP350 power supply delivers dual +12V outputs for maximum stable power for your CPU independently of other peripherals. A single, well-place 80 mm fan keeps things cool. The built-in industrial-grade protection circuitry shields it from power and voltage surges.

One main connector (20 + 4 pin), one 12V (4 pin), one SATA, one floppy and four Molex peripheral connectors are more than enough for all your components. The Antec Basiq BP350's universal connector fits most branded motherboards, and it fully supports a wide range of boards and CPUs. The Antec Basiq BP350 does the job simply, efficiently and reliably, built to satisfy the demands of the entry-level power user or the budget minded system builder.

  • newegg ATX12V v2.01 Compatible Compatible with the ATX12V v2.01 standard, the Antec Basiq BP350 power supply provides enhanced power stability to drive Intel and AMD processors as well as other system components.
  • newegg 350W Maximum Power The Antec Basiq BP350 provides a maximum power of 350W to deliver safe, reliable output for most computer systems.
  • newegg Efficient Cooling The Antec Basiq BP350 features an 80mm fan to provide highly efficient cooling for the power supply and the whole system.

Learn more about the Antec BP350

Model

Brand
Antec
Model
BP350
Series
Basiq

Spec

Type
ATX12V v2.01
Maximum Power
350W
Fans
1 x 80mm low noise cooling fan
PFC
No
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
No
SATA Power Connector
1
SLI
No
CrossFire
No
Modular
No
Over Voltage Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
8A @ 115V, 4A @ 230V
Output
+3.3V@20A, +5V@20A, +12V1@10A, +12V2@13A, -12V@0.3A, +5VSB@2.5A
Approvals
UL, FCC, TUV, CB
Dimensions
3.5" x 5.8" x 5.5"
Weight
2.7 lbs.

Features

Connectors
1 x Main connector (20+4Pin)
1 x 4 Pin ATX 12V
4 x Peripheral
1 x SATA
1 x Floppy
Features
Industrial grade protection: SCP (Short Circuit Protection) and OCP (Over Current Protection)

Manufacturer Warranty

Parts
2 years limited
Labor
2 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Antec BP350

Do you own this product? Write a Review

Filter Results

Go
  • liquidthex
  • 4/25/2013 9:46:00 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsCables too short

Pros: Works as advertised. Box-like quality that reminds me of minecraft.

Cons: In my ordinary setup the 20/24-pin mainboard power connector is a very tight reach and the ATX 12v connector does not reach.

Other Thoughts: I am normally pleased by Antec power supplies; All I needed was a basic power supply, but I still need the cables to reach.

Manufacturer Response:

Hello Liquidthex,

We understand your frustration. Which case do you have? all our standard ATX PSU has the standard length measurement for the 24pin connector. This problem can be easily fixed with a 24pin extender. A lot of these can be found here for as little as $3.59

Thanks,

Antec Support Team

Did you find this review helpful? Yes No

  • KSmith
  • 3/23/2013 9:45:59 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsStill going

Pros: Provided enough power for a general use rig.
Still going today (3 years later).

Cons: Cords where a little short for a case with the PSU on the bottom, had to do a little modding but was my fault for not paying attention.

Other Thoughts: Used in a consumer general use rig.

Did you find this review helpful? Yes No

  • Gunfighterfrank
  • 2/28/2013 11:01:35 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

4 out of 5 eggsgood psu short cables

Pros: well it is a good solid PSU. I love antec for thier reliability and quality.

Cons: well I got this for a new build bottom mount case. Sorry cables are just way to short to hook up the motherboard. will be ok for a top mount but NOT FOR BOTTOM MOUTN PSU.

Other Thoughts: I will just put this power supply in a top mounted case I just didnt want to spend a lot but didnt notice the short cable. My fault I just pulled a EA 380 out of my HTPC and put this one in the EA-380 has cable long enough for a bottom mouth

Did you find this review helpful? Yes No

  • N/A
  • 2/22/2013 5:12:42 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

3 out of 5 eggsdecent

Pros: Works well with an older processor (AMD 64 Athlon x2 2.4 ghz)

Cons: Low power. New motherboard and processor need 500 watts.

Other Thoughts: What's this meshugaas about "dead after one month"!?!?!

0 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 2/8/2013 6:54:03 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsInexpensive but reliable power

Pros: I've used two of these two resurrect computers belonging to two different friends. Reasonably quiet. Did the job.

Cons: None.

Did you find this review helpful? Yes No

  • Maverick
  • 1/31/2013 7:57:05 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Antec PSU

Pros: Great power supply that gets the job done one low power workstations.

Cons: None.

Other Thoughts: If your not a gamer and just need to replace a failing power supply this one is good.

Did you find this review helpful? Yes No

  • Malcom2012
  • 12/11/2012 4:11:42 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

4 out of 5 eggsLong Lasting.

Pros: I used one for 6 years no problem. I would still be using it but the motherboard died and I gave the system away.

Cons: After about 2 years, the fan got to where it needed oil. We fixed that once and it ran fine until I got rid of the system. That's why I only gave it 4 eggs.

Other Thoughts: Note the product is designed for older computers as it lacks SATA. However, it is very good for older machines.

Did you find this review helpful? Yes No

  • Nunyer
  • 10/21/2012 9:18:06 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsGreat replacement for a dead PSU

Pros: Over the last five years, I've probably purchased/installed 30-35 of these for various clients. I haven't had a single problem. This is a quality replacement for when one of those garbage OEM power supplies in your uncle's eMachine takes a dive.

Cons: I've never had a problem installing this in run of the mill Gateways, Dells, eMachines, etc... but the cable runs are shorter than most enthusiast level power supplies. Look elsewhere if you have larger mid / full tower case.

Other Thoughts: I try to pick a couple of these up every time there is a good sale. You pay for the quality at full retail price, but this is an excellent value when discounted.

Did you find this review helpful? Yes No

  • glenngds
  • 9/25/2012 6:47:08 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsNice inexpensive PSU

Pros: This power supply fit the bill. had to have certain demensions and power ratings in order to fit the case and MOBO.

Cons: none

Did you find this review helpful? Yes No

  • N/A
  • 9/14/2012 10:25:09 AM
  • Tech Level: Somewhat Low
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAntec Basiq BP350

Pros: Low noise, Run very cool, Nice, Super, Thanks Newegg...
Ps .. Not for gamer, make sure how much power you need from you power supply..
http://images10.newegg.com/BizIntell/tool/psucalc/index.html?name=Power-Supply-Wattage-Calculator

Cons: Wish to buy more psu like this one..

Did you find this review helpful? Yes No
