Item#: N82E16817371048

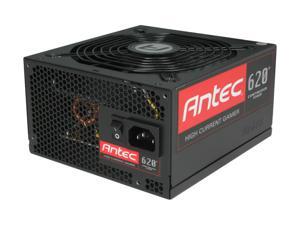

Antec High Current Gamer Series HCG-620 620W ATX12V v2.3 / EPS12V v2.91 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX12V v2.3 / EPS12V v2.91
  • 80 PLUS BRONZE Certified
  • 100 - 240VAC ±10% 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • 80 Plus Bronze ErP Lot 6 RoHS

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Antec's High Current power supplies are the perfect PSU combination of power and efficiency. The High Current Gamer features a high-power +12V rail and special heavy-duty High Current connectors and cabling that supply extreme levels of power, and also superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. Highest-quality gold-plated connectors, Japanese-brand capacitors and quiet 135 mm double ball bearing fans complete the package. If loads of power, High Current engineering and extreme efficiency are what you are after, the High Current Gamer is the PSU for you.

  • newegg 80 PLUS Bronze Certified The 80 PLUS Bronze certified power supply provides high power efficiency of at least 82% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg 620W Continuous Power with Single Strong +12V Rail The Antec High Current Gamer Series HCG-620 is capable of delivering 620W continuous output, which is ATX12V version 2.3 and EPS12V version 2.91 compliant. A single High Current +12V rail @ 48A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
  • newegg High Thermal Performance, Ultra-quiet 135mm Fan The 135mm double ball bearing fan guarantees superior cooling performance as well as silent operation.
  • newegg All Japanese Brand Caps All Japanese brand capacitors inside the High Current Gamer Series ensure extremely high stability and product lifespan. Gold-plated High Current terminals provide optimal conductivity.
  • newegg Energy Efficiency With up to 88% efficiency and 0.99 Active PFC with PF, the Antec HCG-620 allows for less harmonic pollution and more savings on corporate electrical bills. It also meets 2010 EuP requirement assuring ultra-low standby power consumption (5Vsb < 1W).
  • newegg Full Industrial-grade Protection & AQ3 Industrial-grade protection circuitry on all rails offers Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP) and Over Power Protection (OPP) to prevent damage from a variety of dangers. The HCG-620 comes with all the assurance of Antec's AQ3 Antec Quality 3-year limited warranty.

Learn more about the Antec HCG-620

Model

|
Brand
Antec
Model
HCG-620
Series
High Current Gamer Series

Details

|
Type
ATX12V v2.3 / EPS12V v2.91
Maximum Power
620W
Fans
1 x 135mm double ball bearing fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
6
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
No
Efficiency
88%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240VAC ±10%
Input Frequency Range
50/60 Hz
Input Current
9A @ 115V, 4.5A @ 230V
Output
+3.3V@24A, +5V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
cUL, TUV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Dimensions
6.3" x 5.91" x 3.39"
Weight
4.6 lbs.
Type
ATX12V & EPS12V Power Supply
+12V Rails
1
Modular
Yes
Efficiency
> 88%
Energy-Efficient
80 Plus Bronze ErP Lot 6 RoHS

Input

|
Input Voltage
110 V AC 220 V AC

Features

|
Connectors
1 x 20+4 pin main connector
1 x 8 pin (4 + 4) ATX12V / EPS12V
2 x 8 pin (6 + 2) PCI-E
6 x SATA
6 x perpheral
1 x Floppy
Features
620 watts of Continuous Power

80 PLUS Bronze certified - up to 88% efficient

High Current +12V rail for graphics card compatibility and over current protection (OCP) for safety

Quiet 135 mm double ball bearing cooling fan

All Japanese brand capacitors for reliability

Gold-plated High Current terminals for optimal conductivity

ATX12V version 2.3 and EPS12V version 2.91 compliant

Full industrial-grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)

Universal Input - works on any 100V - 240V grid

Active PFC with PF: 0.99 - less harmonic pollution and more savings on corporate electrical bills

Meets 2010 EUP requirement: 5Vsb < 1W
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
