Item#: N82E16817371050

Antec High Current Gamer Series HCG-900 900W ATX12V v2.3 / EPS12V v2.91 SLI Certified CrossFire Certified 80 PLUS BRONZE Certified Active PFC Power Supply - Intel Haswell Fully Compatible

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX12V v2.3 / EPS12V v2.91
  • 80 PLUS BRONZE Certified
  • 100 - 240VAC ±10% 47 - 63 Hz
  • +3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3.0A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • 80 Plus Bronze RoHS

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

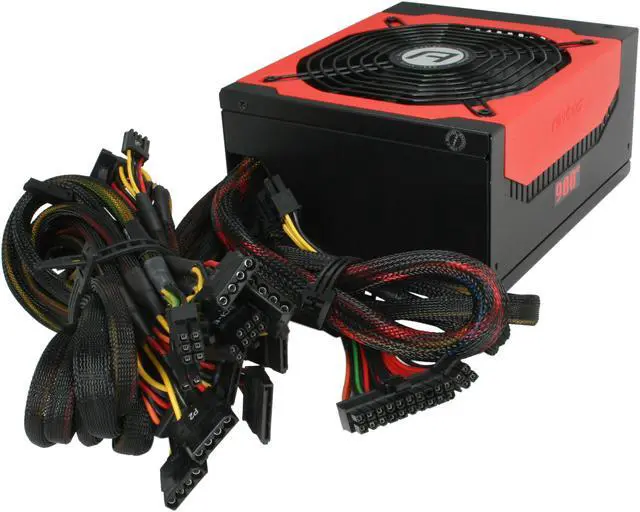

The front is offered with a variety of power connectors

Making quad rail power and highly advanced power supply design available at a popular Wattage, the HCG-900 features special High Current connectors and heavy-duty cabling, earning it NVIDIA® SLI®-Ready and ATI™ CrossFire™ certifications. At the same time the HCG-900 is also 80 PLUS® Bronze certified for efficiency, and features Active Power Factor Correction (PFC) with a swift, quiet 135mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling. If loads of power, High Current engineering and exceptional efficiency are what you're after, the HCG-900 is the perfect PSU for you.

icon for 80plus bronzeicon for sliicon for Intel Haswellicon for aq5icon for rohsicon for hexus recommended.jpg

Features

features
  • 900 Watts of Continuous Power
  • NVIDIA&® SLI®-Ready Certified, ATI CrossFire™ Certified
  • 80 PLUS® Bronze Certified - Up to 88% efficiency
  • Quad High Current +12V Rails With high maximum load for better graphics card compatibility

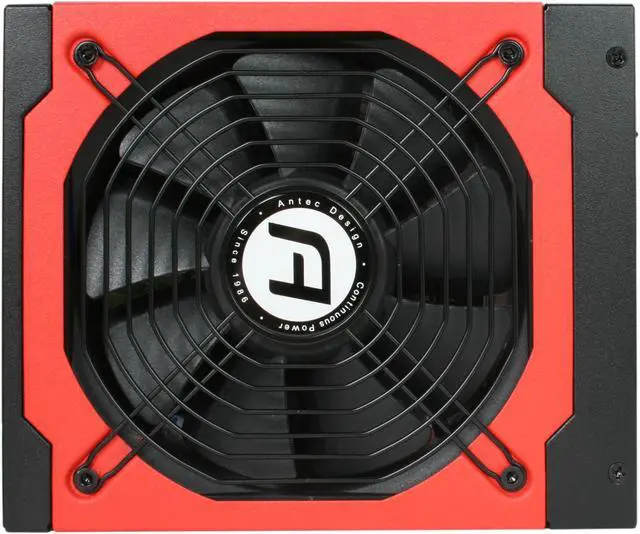

  • Quiet 135mm Double Ball Bearing Cooling Fan With low start voltage
  • Four Gold-Plated 8-Pin (6 + 2) PCI-E Connectors For multiple-graphics card configurations
  • All Japanese Brand Capacitors For reliability
  • ATX12V Version 2.3 and EPS Version 2.91 Compliant
  • Gold-plated High Current terminals For optimal conductivity
  • Universal Input - Works on any 100V ~ 240V grid
  • Active PFC With PF: 0.99 - less harmonic pollution, greater efficiency
  • Full Suite of Industrial Grade Protection: Over current protection (OCP), Over voltage protection (OVP), Short circuit protection (SCP), Over power protection (OPP), and Over temperature protection (OTP).
  • MTBF: 100,000 hours
  • Meets ErP Lot 6: 2010 Requirement: 5Vsb < 1W
  • Safety: cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
  • AQ5: Antec Quality 5-year limited warranty on parts and labor
  • Unit Dimensions (H x W x D): 3.4 x 5.9 x 7.1 inches (86 x 150 x 180mm)
  • Package Dimensions (H x W x D): 4.9 x 12.2 x 7.1 inches (124 x 310 x 180mm)
  • Weight: 6.0lbs (2.7kg) (Net), and 7.5lbs (3.4kg) (Gross)

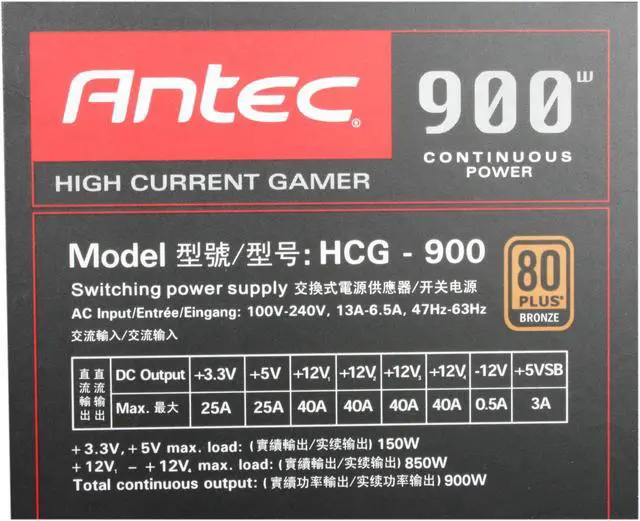

Output

Output Voltage Range MAX Reg. OCP Set Point Ripple & Noise
+5V 25A ±5% 38A 50
+12V1 40A ±5% 52A 120
+12V2 40A ±5% 52A 120
+12V3 40A ±5% 52A 120
+12V4 40A ±5% 52A 120
-12V 0.5A ±10% 120
+5V5B 3A ±5% 50
+3.3V 25A ±5% 38A 50
+5V and +3.3V combined max. output: 150W; +12V outputs combined max. output: 850W (70.8A)

Input

Input Voltage 100 ~ 240VAC ±10%
Input Frequency Range 47Hz ~ 63Hz
Efficiency Up to 88%

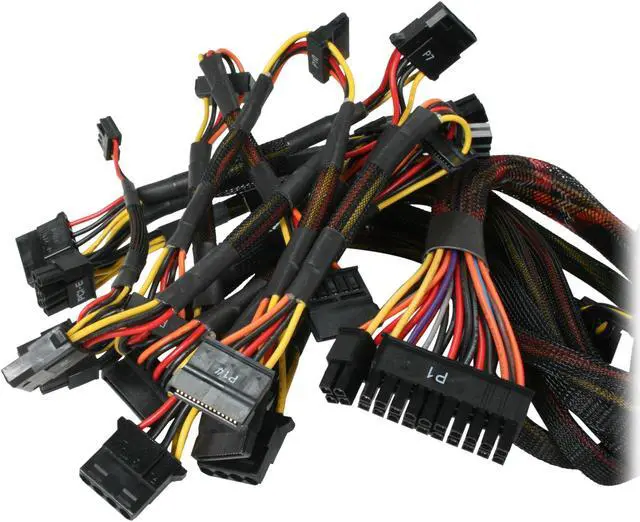

Connectors

1 x 20+4 Pin

1 x 20 + 4-Pin

4 x 6+2 PCI-E

4 x 6 + 2 PCI-E

9 x SATA

9 x SATA

6 x Molex

6 x Molex

1 x Floppy

1 x Aux.

1 x 4+4 Pin ATX/EPS

1 x 4 + 4-Pin ATX/EPS

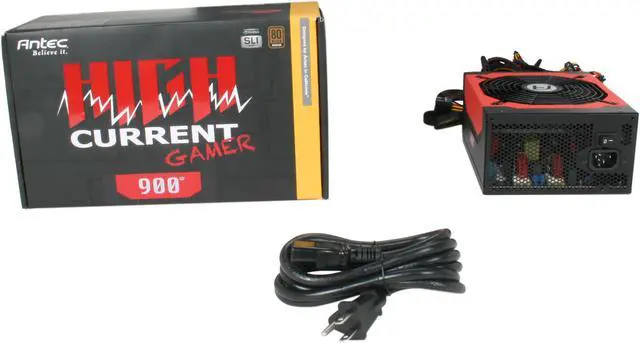

What's in the Box

what's in the box

Learn more about the Antec HCG-900

Model

|
Brand
Antec
Model
HCG-900
Series
High Current Gamer Series

Details

|
Type
ATX12V v2.3 / EPS12V v2.91
Maximum Power
900W
Fans
1 x 135mm double ball bearing fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
4
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
9
SLI
SLI Ready
Haswell Support
Yes
CrossFire
CrossFire Certified
Modular
No
Efficiency
88%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240VAC ±10%
Input Frequency Range
47 - 63 Hz
Output
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3.0A
MTBF
>100,000 Hours
Approvals
cUL, TUV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Dimensions
3.40" x 5.90" x 7.10"
Weight
6.00 lbs.
Type
ATX12V & EPS12V Power Supply
+12V Rails
4
Efficiency
> 88%
Energy-Efficient
80 Plus Bronze RoHS

Input

|
Input Voltage
110 V AC 220 V AC

Features

|
Connectors
1 x 24 (20+4)-pin main connector

1 x 8 (4+4)-pin ATX12V/EPS12V connector

4 x 8 (6+2)-pin PCI-E power connector

9 x SATA power connector

6 x Molex

1 x Floppy power connector
Features
900 watts of Continuous Power

80 PLUS Bronze certified - up to 88% efficient

Quad High Current +12V rails with high maximum load for better graphics card compatibility

Quiet 135 mm double ball bearing cooling fan

Four gold-plated 8 (6+2)-pin PCI-E connectors for multiple-graphics card configurations

All Japanese brand capacitors for reliability

Gold-plated High Current terminals for optimal conductivity

ATX12V version 2.3 and EPS12V version 2.91 compliant

Full industrial-grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)

Universal Input - works on any 100V - 240V grid

Active PFC with PF: 0.99 - less harmonic pollution and more savings on corporate electrical bills

Meets 2010 EUP requirement: 5Vsb < 1W

Plug Standards

|
Electrical Outlet Plug Type
Plug Type “A” (USA, Canada, Mexico, Japan)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
