Item#: N82E16817371052

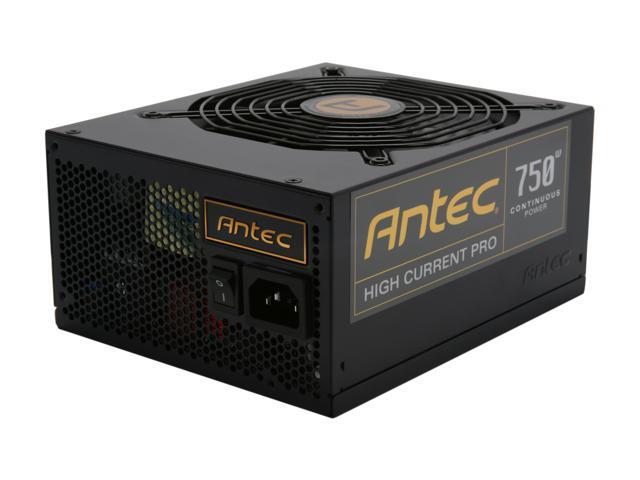

High Current Pro HCP-750 750W TX12V v2.3 / EPS12V v2.92 SLI Certified CrossFire Certified 80 PLUS GOLD Certified Modular Active PFC Power Supply

  • TX12V v2.3 / EPS12V v2.92
  • Modular
  • 80 PLUS GOLD Certified
  • 100 - 240V ± 10%
  • Pin It
  • Email this page
ICON Loading...


Aiming for the high-end enthusiast market and for everyone seeking the best power supply out there, Antec's HCP-750 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS Gold certified unit, HCP-750 is capable of outputting 100 percent of its rated power on its four +12V rails to ensure CPU and graphics card compatibility.

Exclusive to the High Current series, HCP-750 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency and improving power delivery. In addition, a double-layer PCB and onboard DC-to-DC converters provide substantial voltage stability. To tackle the needs of your system, pick up Antec's HCP-750.

  • newegg 750W Continuous Power A continuous power of 750W delivers safe, reliable output for high performance computer systems. Four fully-protected high current +12v rails ensure high-end CPU and graphics cards compatibility.
  • newegg 80 PLUS Gold Certified The 80 PLUS Gold certified power supply provides high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg Intelligent Hybrid Cable Management The HCP-750 features a heavy-gauge 16 AWG High Current cable for CPU connectors to reduce conducted resistance. A modular 10-pin connector system allows you to directly connect either 10-pin or 5-pin connector harnesses. 2x 8-pin CPU connectors are included for dual-CPU gaming, server applications and high-end motherboards. All cables are braided and wrapped for better airflow and neatness.
  • newegg NVIDIA SLI-Ready & ATI CrossFireX Certified The HCP-750 has gone through a series of rigorous certification tests to ensure a quality user experience when building NVIDIA SLI or ATI CrossFireX multi-GPU systems.
  • newegg Japanese Brand Caps The Japanese capacitors inside the HCP-750 ensure high durability and long-term reliability.
  • newegg 135 mm PWM Fan The 135 mm double ball bearing PWM fan delivers optimal and quiet cooling.

Learn more about the Antec HCP-750

Model

Model
HCP-750
Series
High Current Pro

Spec

Type
TX12V v2.3 / EPS12V v2.92
Maximum Power
750W
Fans
1 x 135mm double ball bearing PWM fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
4
PCI-Express Connector
6 x 6+2-Pin
SATA Power Connector
9
SLI
SLI Certified
CrossFire
CrossFire Certified
Modular
Modular
Efficiency
up to 92%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240V ± 10%
Input Frequency Range
50/60 Hz
Input Current
11A @ 115V, 5.5A @ 230V
Output
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3A
MTBF
>100,000 Hours
Approvals
cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Dimensions
3.4" (H) x 5.9" (W) x 7.1" (D)
Weight
5.5 lbs .

Features

Connectors
1 x Main connector (20+4 Pin)
1 x 4+4 Pin ATX12V/EPS12V
1 x 8 Pin EPS12V
6 x PCI-E
9 x SATA
6 x Peripheral
1 x Floppy
Features
750 watts of Continuous Power

80 PLUS Gold certified – up to 92% efficient

NVIDIA SLI-Ready certified, ATI CrossFireX certified

Intelligent Hybrid Cable Management utilizes a 10-pin modular connector system

Special heavy-gauge 16 AWG High Current cable for CPU connectors boosts conductivity, increasing ciency and improving power delivery

2 x 8-pin CPU connectors included for dual-CPU gaming, server applications and high-end motherboards

Gold-plated high-current terminals for optimal conductivity

135 mm double ball bearing PWM fan for optimal and quiet cooling

Four fully-protected High Current +12V rails ensure high-end CPU and graphics cards compatibility

Up to 99% power available on +12V rails

DC-to-DC voltage regulator modules ensure stability and higher efficiency

Highest quality Japanese brand capacitors for long-term reliability

Double-layer PCB allows for heavy-duty components

Full suite of industrial grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)

All cables braided and wrapped for better airflow and neatness

Meets 2010 EUP requirement: 5Vsb < 1W

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Antec HCP-750

Do you own this product? Write a Review

Filter Results

Go
  • Stick
  • 3/24/2013 11:41:16 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsVery nice

Pros: You can tell the second you take it out of the package that this has a nice build quality. The modular plugs work great. Just slap it in and it works, just like any PSU should.

Cons: none

Did you find this review helpful? Yes No

  • N/A
  • 1/15/2013 1:28:38 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs:)

Pros: Very Good power supplies, it runs my sit up just fine and I have not have had any problems with it, quiet as well.

Cons: N/a

Did you find this review helpful? Yes No

  • N/A
  • 1/5/2013 1:00:07 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsEggcelent

Pros: A nice large power supply at a decent cost, especially when it was on sale. Modular allows the lack of all of the mess of cords internally. Capacitors on it are exctremely powerful, when power is lost, it keeps power to the computer for an additonal 5-10 seconds.

Cons: None

Did you find this review helpful? Yes No

  • N/A
  • 12/26/2012 6:55:40 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSolid PSU

Pros: Have had no issues with it.

The Cables were all long enough to comfortably reach to all needed areas in my Corsair Carbide 500R Case.

Have enough head room to put another 670 in sli - enough for me!

Cons: None thus far.

Did you find this review helpful? Yes No

  • N/A
  • 12/10/2012 7:55:07 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAntec HCP 750

Pros: 750 Watts. Modular (my first modular p/s) - not a lot of extra cables getting in the way. 80 plus gold. 5 year warranty.
Lots of room for expansion in my current system. Even has a floppy connector (no molex adapter needed).

Cons: Nothing serious yet. There's 2 built-in 4-pin CPU plugs which I have no use for, right now. Same with the 6+2 PCIe, I only need the 6 pins for now. A little expensive, but I got mine on sale and with a rebate (which hasn't arrived yet, but it's only been about a week since I sent it in).

Other Thoughts: I got this to replace a 7-year old Antec TRUE 550 which was starting to have issues. So far, I'm glad I stayed with the brand. I'll probably get another one (to replace an Anted TRUE 550 EPS12V slightly older than the one I already replaced) if it goes on sale again.

Did you find this review helpful? Yes No

  • N/A
  • 11/13/2012 7:32:21 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsMore power than you are likely to need.

Pros: Has plenty of room for future growth. Modular plugs to increase the number of connectors you need is a big plus. Quiet and provides power accurately for overclocking needs.

Cons: It's very long from face to tail. Had to remove my Hard Drive fan to fit it in.

Did you find this review helpful? Yes No

  • N/A
  • 11/9/2012 12:55:00 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExcellent quality!

Pros: Mainboard and PCI-express cables were long enough to tuck behind the motherboard in a HAF X. Runs cool and quiet.

Cons: Cables are a little stiff, not a big deal.

Other Thoughts: Got this baby for 89.99 after sale and rebate! Can't really ask for a better deal

Did you find this review helpful? Yes No

  • N/A
  • 10/29/2012 8:08:23 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggs

Pros: heavy, low-rail fluctuations in BIOS

Cons: does not come with a connector with both molex / sata

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 10/28/2012 6:57:56 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsbest power supply in the world

Pros: outstanding power stability

Cons: has too many unnecessary connectors (e.g. cpu 4 pin x 2, vga 8 pin x 2)

Other Thoughts: cut everything that stood in my way with scissors, so that there were no unnecessary plugs left. I also cut the two modular SATA connectors so that they were the shortest length possible (comes with 3). i highly recommend cutting the 8 pin vga connectors so that they amount to 6. also, be sure to use separate rails for your hard drive and cd-rom, and then cut them.

0 out of 7 people found this review helpful. Did you? Yes No

  • The Repair Man
  • 10/23/2012 10:55:27 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAntec High Current = High Quality

Pros: Purchased due to specs, item promotion and price. I have no regrets. This is one well built, high quality unit, with good looks to boot. More than enough extra cables and ports. Specs and features of much more high end PSU's. This unit's design makes my PC building skills look even better than they really are. Did I mention that it's whisper quiet at idle, and still not bad at all when pushed just a little. I'm very happy, thanks to Antec, and Newegg!

Cons: Even though mine turned out very neat the lengths of the fixed main harnesses could have been a few inches longer to allow for better cable management. There was just no way to route the 20+4 pin or the 4+4 pin wiring back behind the main board frame in my mid tower Antec DF-35 chassis. A very minor issue unless you have a full tower.

Other Thoughts: Worked right of the bat with no problems at all. I'll report back if something should go wrong later on, or if I need Antec's customer service. Newegg made the purchase painless and swift as usual. AAAAA+++++

1 out of 2 people found this review helpful. Did you? Yes No
