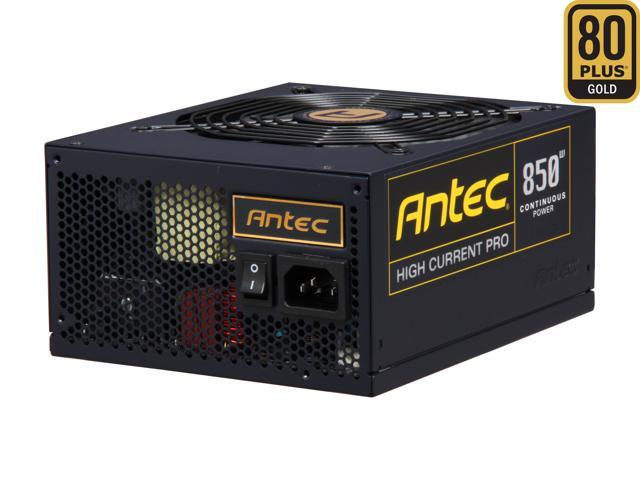

Antec High Current Pro HCP-850 850W TX12V v2.3 / EPS12V v2.92 SLI Certified CrossFire Certified 80 PLUS GOLD Certified Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Sold and Shipped by Newegg

TX12V v2.3 / EPS12V v2.92
Modular
80 PLUS GOLD Certified
100 - 240V +/- 10% 50/60 Hz
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3A

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Aiming for the high-end enthusiast market and for everyone seeking the best power supply out there, Antec's HCP-850 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS Gold certified unit, HCP-850 is capable of outputting 99 percent of its rated power on four +12V rails to ensure CPU and graphics card compatibility.

Exclusive to the High Current series, HCP-850 boasts High Current heavy-gauge 16 AWG wiring that boosts conductivity, increasing efficiency and improving power delivery. In addition, a double-layer PC, onboard DC-to-DC converters and Power Factor Correction (PFC) provide substantial voltage stability. To tackle the needs of your system, pick up Antec's HCP-850.

850W Continuous Power A continuous power of 850W delivers safe, reliable output for high performing computer systems. Four fully-protected high current +12v rails ensure high-end CPU and graphics cards compatibility.
80 PLUS Gold Certified The 80 PLUS Gold certified power supply provides high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
Intelligent Hybrid Cable Management The HCP-850 features a heavy-gauge 16 AWG High Current cable for CPU connectors to reduce conducted resistance. A modular 10-pin connector system allows you to directly connect either 10-pin or 5-pin connector harnesses. 2x 8-pin CPU connectors are included for dual-CPU gaming, server applications and high-end motherboards. All cables are braided and wrapped for better airflow and neatness.
NVIDIA SLI-Ready & ATI CrossFireX Certified The HCP-850 has gone through a series of rigorous certification tests to ensure a quality user experience when building NVIDIA SLI or ATI CrossFireX multi-GPU systems.
Japanese Brand Caps The Japanese capacitors inside the HCP-850 ensure high durability and long-term reliability.
135 mm PWM Fan The 135 mm double ball bearing PWM fan delivers optimal and quiet cooling.

Learn more about the Antec HCP-850

Model

Brand: Antec

Model: HCP-850

Series: High Current Pro

Details

Type: TX12V v2.3 / EPS12V v2.92

Maximum Power: 850W

Fans: 1 x 135mm double ball bearing PWM fan

PFC: Active

Main Connector: 20+4Pin

+12V Rails: 4

PCI-Express Connector: 6 x 6+2-Pin

SATA Power Connector: 9

SLI: SLI Certified

Haswell Support: Yes

CrossFire: CrossFire Certified

Modular: Modular

Efficiency: up to 92%

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Input Voltage: 100 - 240V +/- 10%

Input Frequency Range: 50/60 Hz

Input Current: 12A @ 115V, 6A @ 230V

Output: +3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3A

MTBF: >100,000 Hours

Dimensions: 3.4" (H) x 5.9" (W) x 7.1" (D)

Weight: 4.7 lbs.

Features

Connectors: 1 x Main connector (20+4 Pin)
1 x 4+4 Pin ATX12V/EPS12V
1 x 8 Pin EPS12V
6 x PCI-E
9 x SATA
6 x Peripheral
1 x Floppy

Features: 850 watts of Continuous Power

80 PLUS Gold certified - up to 92% efficient

NVIDIA SLI-Ready certified, ATI CrossFireX certified

Intelligent Hybrid Cable Management utilizes a 10-pin modular connector system

Special heavy-gauge 16 AWG High Current cable for CPU connectors boosts conductivity, increasing ciency and improving power delivery

2 x 8-pin CPU connectors included for dual-CPU gaming, server applications and high-end motherboards

Gold-plated high-current terminals for optimal conductivity

135 mm double ball bearing PWM fan for optimal and quiet cooling

Four fully-protected High Current +12V rails ensure high-end CPU and graphics cards compatibility

Up to 99% power available on +12V rails

DC-to-DC voltage regulator modules ensure stability and higher efficiency

Highest quality Japanese brand capacitors for long-term reliability

Double-layer PCB allows for heavy-duty components

Full suite of industrial grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)

All cables braided and wrapped for better airflow and neatness

Meets 2010 EUP requirement: 5Vsb < 1W
