Item#: N82E16817371057

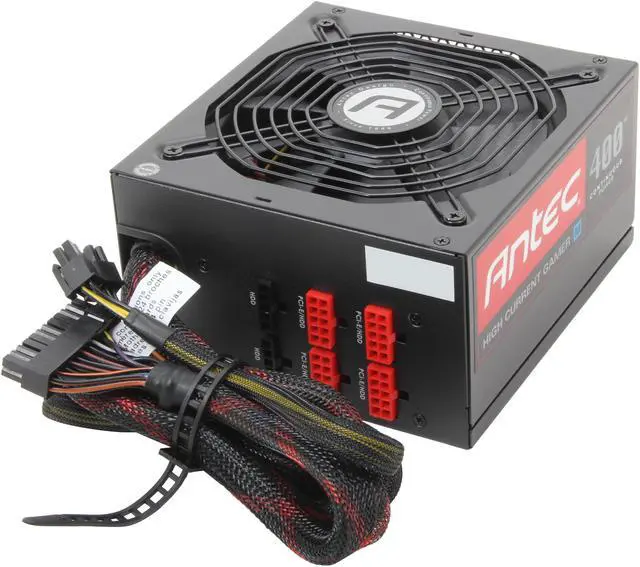

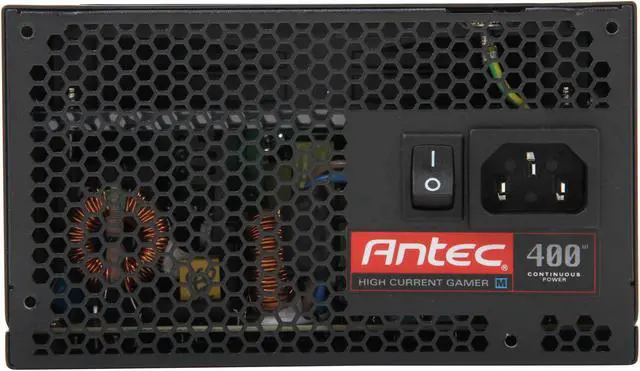

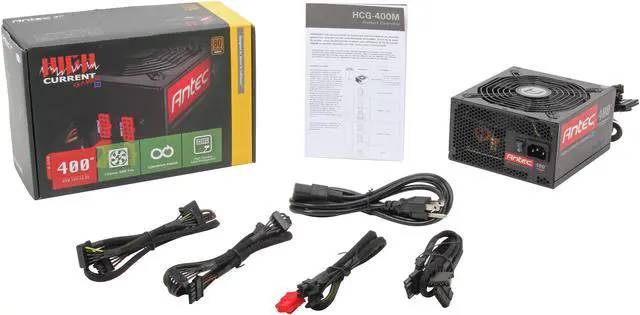

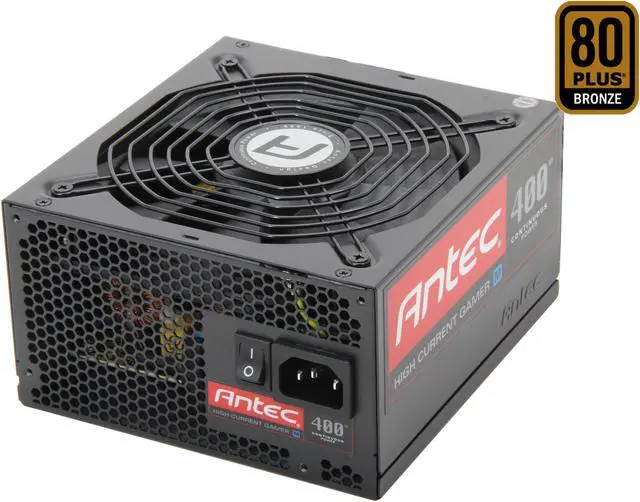

Antec HCG M Series HCG-400M 400W ATX12V / EPS12V SLI CrossFire 80 PLUS BRONZE Certified Modular Active PFC Power Supply

  • ATX12V / EPS12V
  • Modular
  • 80 PLUS BRONZE Certified
  • 100 – 240 VAC ±10% 50/60 Hz
  • +5V@20A, +3.3V@20A, +12V@30A, -12V@0.8A, +5VSB@2.5A
ICON Loading...

Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the package. The HCG-400M features High Current Cable Management and 10-pin modular connectors. If loads of power, High Current engineering and extreme efficiency are what you're after, the HCG M is the PSU for you.


Learn more about the Antec HCG-400M

Model

Brand
Antec
Model
HCG-400M
Series
HCG M Series

Spec

Type
ATX12V / EPS12V
Maximum Power
400W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
5
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
Up to 87%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 – 240 VAC ±10%
Input Frequency Range
50/60 Hz
Input Current
7 - 3.5A
Output

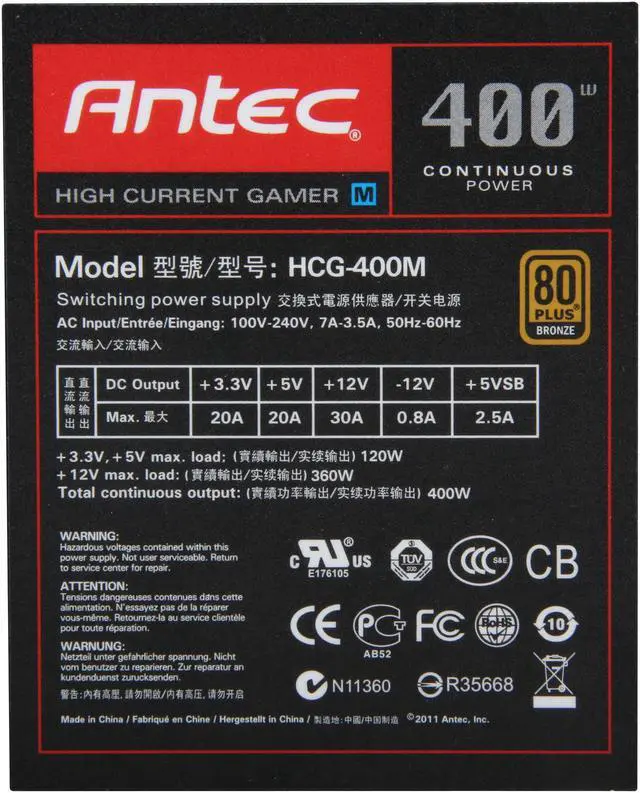

+5V@20A, +3.3V@20A, +12V@30A, -12V@0.8A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
UL, cUL, CE, TUV, CB, FCC, GOST-R, CCC, C-Tick, BSMI
Dimensions
3.4" x 5.9" x 6.3"
Weight
4.0 lbs.

Features

Connectors

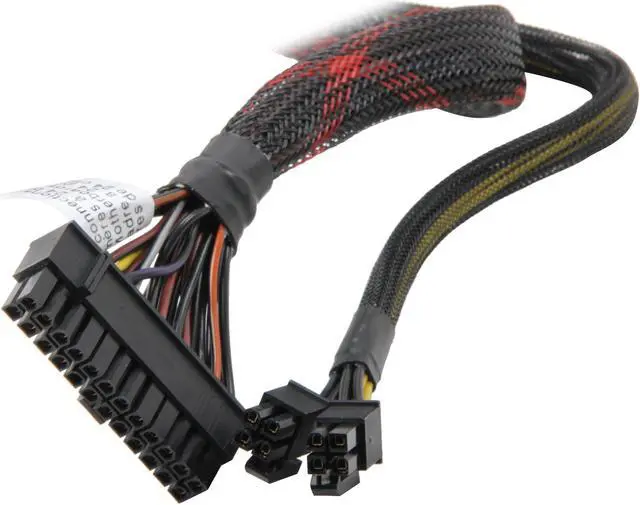

1 x 20+4-pin Main Connector
1 x 4+4-pin ATX12V / EPS12V Connector
2 x 6+2-pin PCI-E
5 x SATA
4 x Molex
1 x Floppy
Features
High Current Hybrid Cable Management – special 10-pin and 5-pin modular connectors for High Current rail

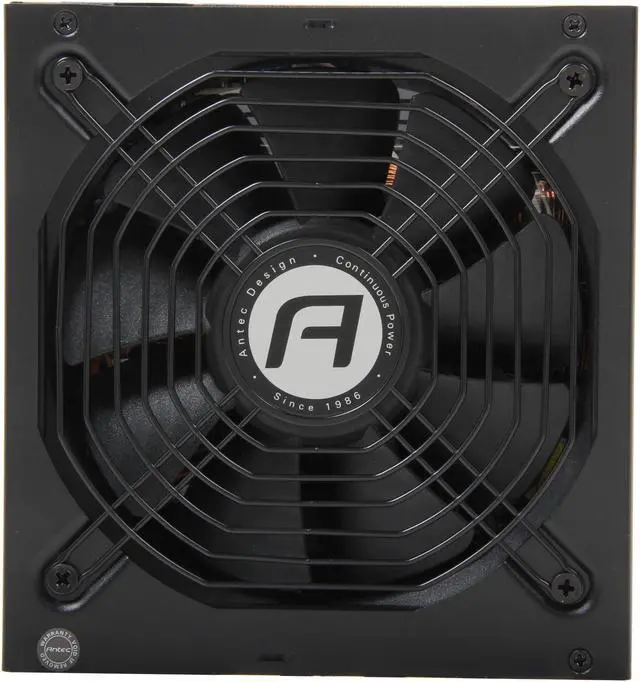

Quiet 135 mm Double Ball Bearing cooling fan

Stealth Wires All wires darkened for minimal visibility in chassis

All Japanese brand capacitors for reliability

Thermal Manager, an advanced low voltage fan control for optimal heat & noise management

Up to 90% power available on +12V rail

ATX12V version 2.32 and EPS12V version 2.92 compliant

Heavy-duty protection circuitry on all rails prevents damage froma variety of dangers:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP)

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Antec HCG-400M

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Michael K.
  • 9/3/2012 1:30:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsGreat PSU

Pros: The title says it all, this power supply is great. Has never failed on me, never heard the fan run (not saying it doesn't, just that I haven't heard it.). That's saying something, because I'm using around 360-370 Watts of it.

Cons: The only bad thing about this I can find is that you will see the sticker upside down if your fan is facing down. However, it will be normal if the fan is sticking up inside the case.

Other Thoughts: Bought this because of a $10 off instant and a $40 rebate which I have received, and couldn't be happier.

Did you find this review helpful? Yes No
