Item#: N82E16817371059

Antec HCG M Series HCG-620M 620W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX12V / EPS12V
  • Modular
  • 80 PLUS BRONZE Certified
  • 100 - 240 VAC ±10% 50/60 Hz
  • +5V@24A, +3.3V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • 80 Plus Bronze RoHS ErP

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
HCG-620M

Antec HCG M Series HCG-620M 620W Power Supply
ATX12V / EPS12V - SLI Ready / CrossFire Ready - 80 PLUS Bronze Certified - Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS® Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135mm double ball bearing fan complete the package. The HCG-620M features High Current Cable Management and 10-pin modular connectors. If loads of power, High Current engineering, and extreme efficiency are what you're after, the HCG M is the PSU for you.

Video


HCG-620MHCG-620M

Features

  • 620 Watts of Continuous Power
  • 80 PLUS® Bronze certified - Up to 87% efficient
  • High Current Hybrid Cable Management - special 10-pin and 5-pin modular connectors for High Current rail
  • Quiet 135mm Double Ball Bearing cooling fan
  • Stealth Wires: All wires darkened for minimal visibility in chassis
  • All Japanese capacitors for reliability
  • Thermal Manager: An advanced low voltage fan control for optimal heat & noise management
  • Up to 90% power available on +12V rail
  • ATX12V version 2.32 and EPS12V version 2.92 compliant
  • Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
    • Over Current Protection (OCP)
    • Over Voltage Protection (OVP)
    • Under Voltage Protection (UVP)
    • Short Circuit Protection (SCP)
    • Over Power Protection (OPP)
    • Surge & Inrush Protection (SIP)
  • AQ5 - Antec Quality five-year limited warranty on parts and labor
  • MTBF: 100,000 hrs

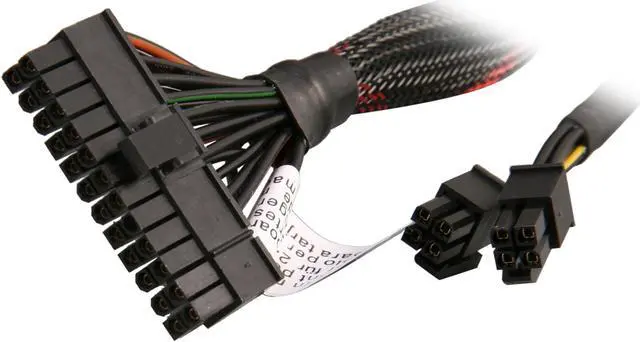

  • Power Supply Connectors Assortment:
    • 1 x 24-pin (2 0 +4)
    • 1 x 8-pin (4 + 4) ATX12V/EPS12V
    • 2 x 8-pin (6 + 2) PCI-E
    • 6 x SATA
    • 6 x Molex
    • 1 x Floppy
  • Safety Approvals: UL, cUL, CE, TÜV, CB, FCC, CCC, C-Tick, BSMI
  • Net Weight: 1.9 kg / 4.2 lbs
  • Dimensions (H x W x D):
    • 3.4 x 5.9 x 6.3"
    • 86 x 150 x 160mm
  • newegg High Current Hybrid Cable Management Antec's HCG M power supplies provide special 10-pin and 5-pin modular connectors for High Current rail.

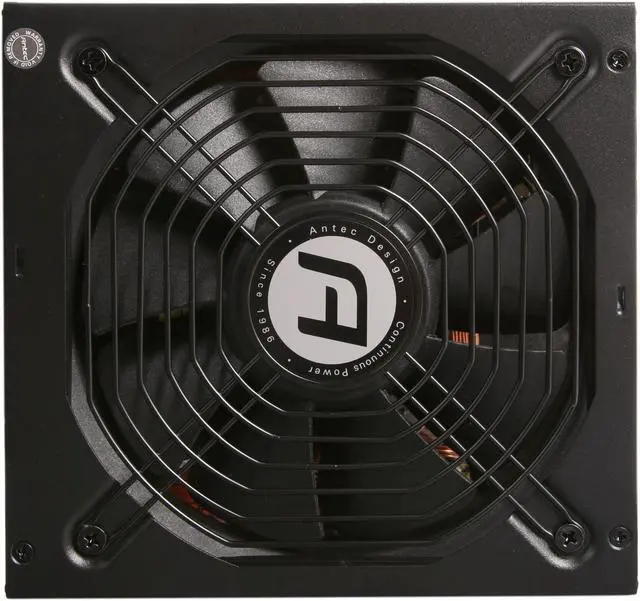

  • newegg Quiet 135mm Double Ball Bearing Cooling Fan The 135mm double ball bearing cooling fan guarantees superior cooling performance as well as silent operation.
  • newegg All Japanese brand capacitors for reliability Antec's HCG M power supplies feature Japanese brand capacitors, which greatly improve the durability and offer the highest stability and reliability.
  • newegg ATX12V Version 2.32 and EPS12V Version 2.92 Compliant Supporting the latest ATX12V v2.31 and EPS12V v2.92 standards, the Antec's HCG M power supplies provides maximum power stability to drive the processors as well as other components for desktop and server computer.
  • newegg Superior protection Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP) and Surge & Inrush Protection (SIP).
  • newegg 80 PLUS Bronze certification The 80 PLUS Bronze certified power supply provides high power efficiency of at least 82% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.

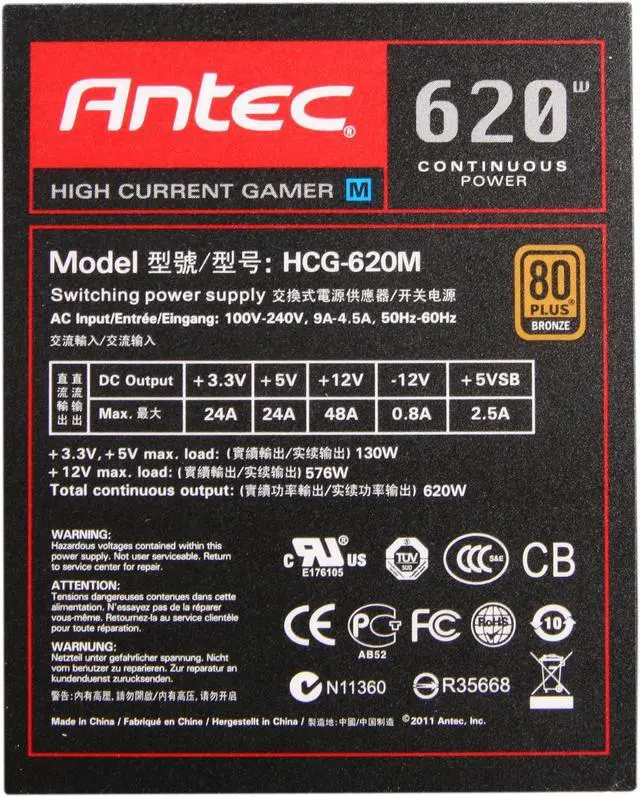

Output Table

  +5V +3V +12V -12V 5Vsb
Max. Load 24A 24A 48A 0.8A 2.5A

+3.3V and +5V Combined maximumm output: 130W
+12V1 Maximum output: 48A (576W)
Total Continuous Power: 620W
Input
Input Voltage 100 ~ 240VAC ±10%
Input Frequency Range 50 - 60Hz
Input Current 9A @ 115VAC, 4.5A @ 230VAC
Efficiency Up to 87%

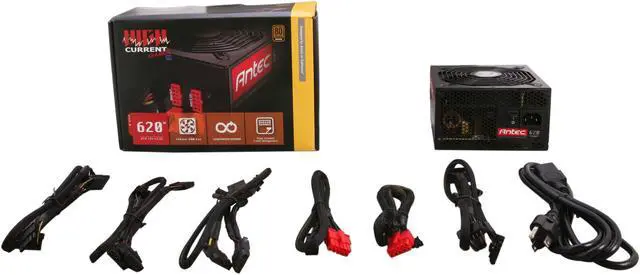

What's in the Box

box

Learn more about the Antec HCG-620M

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
