Antec HCP Platinum HCP-1000 1000W ATX12V V2.32 / EPS12V V2.92 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Ships from United States.

Sold and Shipped by Newegg

ATX12V V2.32 / EPS12V V2.92
Full Modular
80 PLUS PLATINUM Certified
100VAC - 240VAC ~ +/-10% (Active PFC) 50/60 Hz
+3.3V@25A; +5V@25A; +12V1@40A; +12V2@40A; +12V3@40A; +12V4@40A; -12V@0.5A; +5Vsb@3A

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

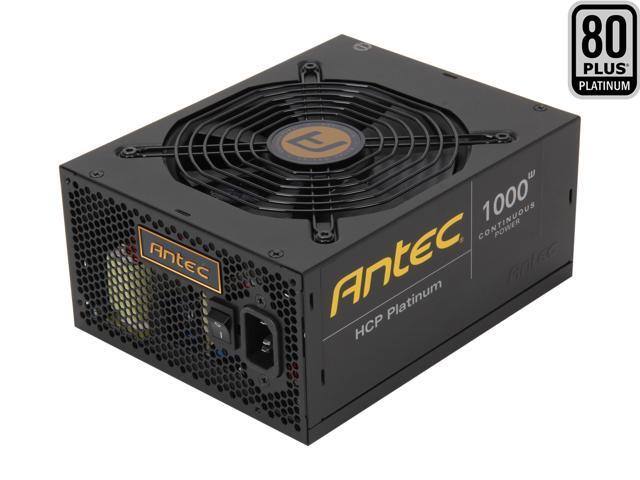

Antec HCP Platinum HCP-1000 1000W Power Supply - ATX12V v2.32 / EPS12V V2.92 SLI Ready CrossFire Ready 80 PLUS Platinum Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Antec's High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20 + 8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® Platinum & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum's innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Backed by a seven-year warranty and lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a power supply can accomplish today.

Video

Features

1000W Continuous Power - Guaranteed 1000W of Continuous Power from Antec
80 PLUS Platinum certified - Up to 94% efficient, to reduce your electricity bill
Save Energy and Money - Reduce your electricity bill by up to 25%
AQ7 - Antec Quality 7-year warranty and lifetime global 24/7 support
16-Pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket and allow for future connector changes
28-pin (20 + 8) MBU socket - World's first socket for possible future MBU connectors
135mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
High Current Rails - Four High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
100% +12V - Output for maximum CPU & GPU support
Multi PCI-E - Six PCI-E connectors for multiple GPU support
CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)
All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation
ErP Lot 6: 2013 - Compliant to the toughest energy standard available
PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Stealth Wires - All wires darkened for minimal visibility in chassis
OC Link™ - Allows two HCP Platinums to work in tandem to power the most demanding systems

1000W Continuous Power
A continuous power of 1000W delivers safe, reliable output for high-performing computer systems. Four fully-protected, high current +12v rails ensure high-end CPU and graphics cards compatibility.

80 PLUS Platinum Certified
The High Current Pro Platinum series provides ultra-high power efficiency of at least 89% (up to 94% under real-world operating environments for this model) at any load between 20% and 100%, saving your money on your electric bill, reducing heat in your computer's system, and prolonging its life.

16-Pin Socket
Industry-leading 16-pin sockets double the modular connectivity by supporting two different eight-pin cables per socket, and allow for future connector changes.

28-Pin (20 + 8) MBU Socket
The High Current Pro Platinum series features the world's first 28-pin (20 + 8) MBU socket for possible future MBU connectors.

135mm DBB Fan
The 135mm double ball bearing fan guarantees superior cooling performance as well as silent operation.

All Japanese Heavy-Duty Caps
All high-performance Japanese capacitors ensure the tightest DC stability and regulation.

Output Table

	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	-12V	+5Vsb
MIN	0A	0A	0A	0A	0A	0A	0A	0A
MAX	25A	25A	40A	40A	40A	40A	0.5A	3A
Total	130W		1000W				6W	15W
Total	1000W
Input
Input Voltage				100 ~ 240VAC ± 10% (Active PFC)
Input Frequency Range				50Hz - 60Hz, 13A - 6.5A

What's in the Box

Learn more about the Antec HCP-1000

Model

Brand: Antec

Model: HCP-1000

Series: HCP Platinum

Details

Type: ATX12V V2.32 / EPS12V V2.92

Maximum Power: 1000W

Fans: 1 x 135mm DBB Silence

PFC: Active

Main Connector: 24Pin

+12V Rails: 4

PCI-Express Connector: 6 x 6+2-Pin

SATA Power Connector: 9

SLI: SLI Ready

Haswell Support: Yes

CrossFire: CrossFire Ready

Modular: Full Modular

Efficiency: Up to 94%

Energy-Efficient: 80 PLUS PLATINUM Certified

Over Voltage Protection: Yes

Overload Protection: Yes

Input Voltage: 100VAC - 240VAC ~ +/-10% (Active PFC)

Input Frequency Range: 50/60 Hz

Input Current: 13A - 6.5A

Output: +3.3V@25A; +5V@25A; +12V1@40A; +12V2@40A; +12V3@40A; +12V4@40A; -12V@0.5A; +5Vsb@3A

Approvals: UL, cUL, CB, CE, FCC, TUV, BSMI, CCC, C-Tick, KCC

Dimensions: 3.4" x 5.9" x 7.5" (H x W x D)

Weight: 4.7 lbs.

Modular: Yes

Features

Connectors: 1 x 24-pin
1 x 8(4+4)-pin ATX12V/EPS12V
1 x 8-pin EPS12V
6 x 8(6+2)-pin PCI-E
6 x Molex
9 x SATA
1 x Floppy

Features: 1000W Continuous Power - Guaranteed 1000W of Continuous Power from Antec

80 PLUS PLATINUM certified - Up to 94% efficient, to reduce your electricity bill

Save Energy and Money - Reduce your electricity bill by up to 25%

Full Modular design

16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes

28(20+8)-pin MBU socket - World's first socket for possibe future MBU connectors

135 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime

Thermal Manager - An advanced low voltage fan control for optimal heat & noise management

High Current Rails - 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility

100% +12V - Output for maximum CPU & GPU support

Multi PCI-E - 6 PCI-E connectors for multiple GPU support

CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)

All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation

ErP Lot 6: 2013 - Compliant to the toughest energy standard available

PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

Stealth Wires - All wires darkened for minimal visibility in chassis
