Can this run off a US standard 120v 15amp wall outlet or does it need a 240v?

Works with 120 volt. However depending how far away from your power box there may be voltage drop. So this psu can totally use everything on 120 and if there's anything else on the circuit its going to blow a fuse.

Is this antec grid software ready?

I believe you are looking for the following: "Wednesday, June 5th 2013 Antec Unveils High Current Pro Platinum Grid Series PSUs Featured by btarunr Wednesday, June 5th 2013 01:07 Discuss (0 Comments) Antec unveiled the first of its "smart" PSUs that rival Corsair AXi line, the High Current Pro Platinum Grid. The PSU plugs into your motherboard over a vacant USB 2.0/1.1 header, and interfaces with Antec Grid, a software that lets you monitor and log the unit's overall efficiency, various power domains, rails, temperatures, fan-speeds. It lets you override the unit's fan-speed curve, and monitor temperature over four sensors, reading from four key zones of the unit. Innards of these 80 Plus Platinum-certified PSUs are otherwise identical to the High Current Pro Platinum series launched last year, and are available in identical high-Wattage variants: 750W, 850W, 1000W, 1200W, and 1300W. These PSUs feature fully modular cabling, the 750W variant is ideal for gaming PC builds with up to two graphics cards, the 850W and 1000W three, and the others four. The company also showed off various HCP Platinum PSU models, most of which were launched at last year's Computex." This model, I believe, is just the regular Antec High Current Pro Platinum PSU, as mine does not have the USB plug. Try searching Newegg for the "Antec HCP Platinum Grid Series" specifically. Hope this helps.

What gauge size are the harnesses?

The sleeves are very thick but the wire itself seems about standard. An in-depth magazine review may have it. The reason that I am commenting is that it is an awesome PSU. I have never used one better. BUT...This is important. There is a 24 pin cable and then the other end is terminated into a y cable. One y is 20 pins and the other y is 8 pins. There is no clear instruction that BOTH of the y cables have to be hooked into the PSU. I had stripped my computer apart twice and was ready to send the whole thing back until I noticed this in a website article. It was not intuitive to me. The 24 pin cable into the mobo and the fat cable into the PSU. Seemed straightforward.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Antec;HCP-1300;Antec HCP-1300 Platinum (0-761345-06260-2) - Newegg.com

Antec;HCP Platinum HCP-1000;HCP-1300 Platinum - Antec

Antec;HCP-1300;HCP-1300 PLATINUM - Antec

Antec;HCP-1300;HCP-1300 Platinum - Antec

Main image of Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 2 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 3 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 4 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 5 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 6 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Alt view image 7 of 7 - Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

Shop All Antec Products

Antec HCP-1300 Platinum 1300W ATX12V / EPS12V SLI CrossFire 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply - Intel Haswell Fully Compatible

(25) Write a Review

ATX12V / EPS12V
Full Modular
80 PLUS PLATINUM Certified
110VAC - 240VAC ~ +/-10% (Active PFC) 50/60 Hz

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (25)

Any questions? Our AI beta will help you find out quickly.

Try me now

Antec's High Currnet Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8 pin MBU socket for the needs of tomorrow. By using a PSU that is 80 Plus PLATINUM & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies. HCP Platinum's innovative 16-pin sockets create a level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Backed by a 7 year warranty and lifetime global 24/7 support, the HCP-1300 Platinum embodies everything a power supply can accomplish today.

Antec HCP-1300 Platinum Power Supply
1300W 80 PLUS Platinum Certified Fully Modular Active PFC PSU

Antec’s High Current Pro Platinum series is designed to meet the high-end enthusiast's needs and provide some of the best overall power supply designs on the market. 80 PLUS Platinum certified, the HCP-1300 Platinum is capable of cranking out 94% of its rated power on four +12V rails to ensure CPU and graphics card compatibility. The HCP Platinum’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different eight-pin connectors, and even future 10-, 12-, 14-, or 16-pin connectors. To tackle the needs of your system, Antec’s High Current Pro Platinum series is a great choice.

Features

1300W Continuous Power - Guaranteed 1300W of Continuous Power from Antec
80 PLUS® Platinum Certified - Up to 94% efficient, to reduce your electricity bill
Save Energy and Money - Reduce your electricity bill by up to 25%
AQ7 - Antec Quality 7-year warranty and lifetime global 24/7 support

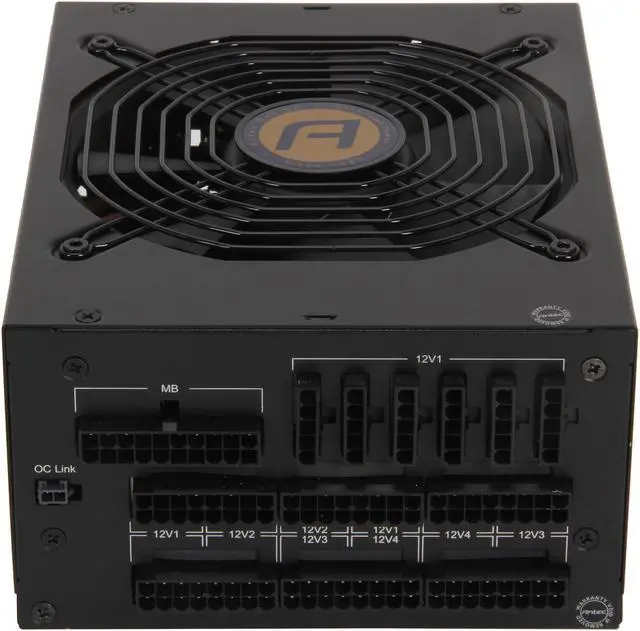

16-Pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket and allow for future connector changes
28-Pin (20 + 8) MBU Socket - World's first socket for possible future MBU connectors

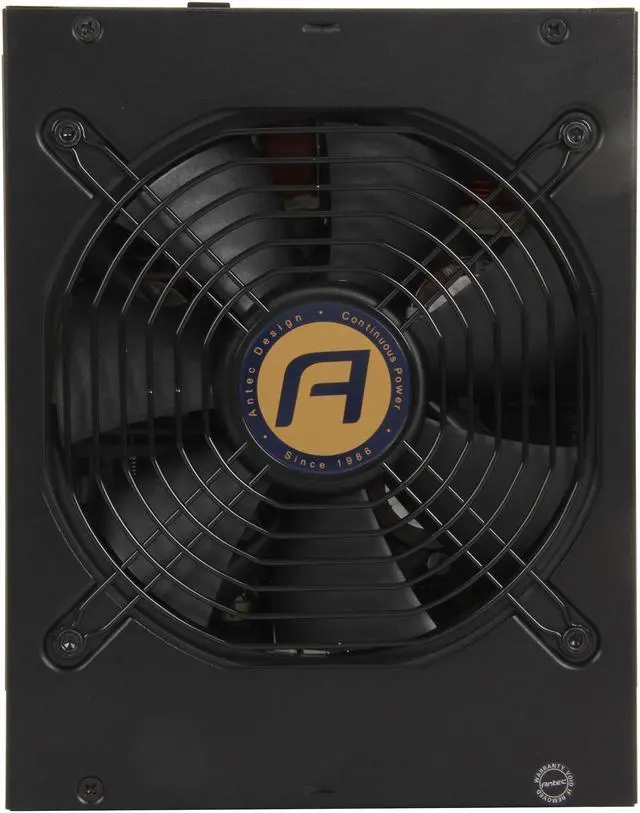

135mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
High Current Rails - Four High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
100% +12V - Output for maximum CPU & GPU support
Multi PCI-E - 10 PCI-E connectors for multiple GPU support
OC Link™ - Allows two HCP Platinums to work in tandem to power the most demanding systems
CircuitShield™ - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)
All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation
PhaseWave™ Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Stealth Wires - All wires darkened for minimal visibility in chassis

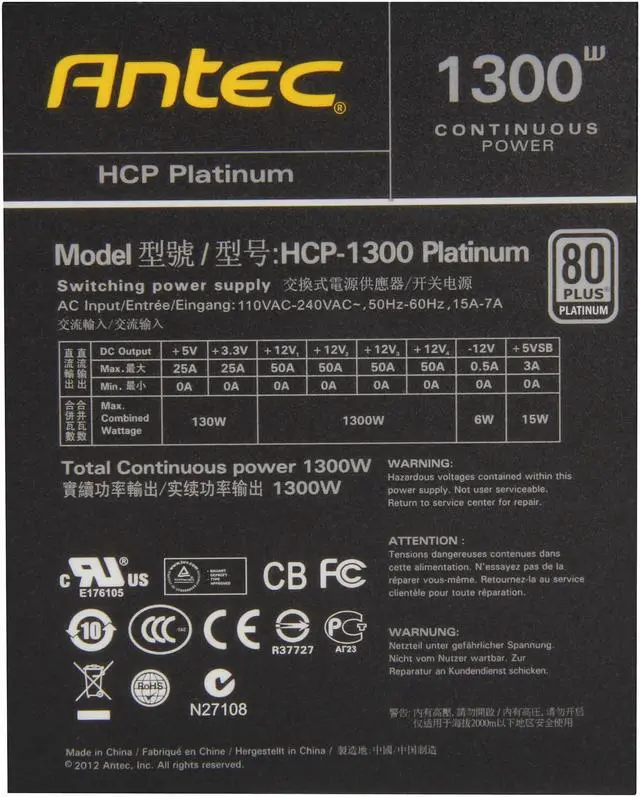

Output

	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	-12V	+5Vsb
MIN	0A	0A	0A	0A	0A	0A	0A	0A
MAX	25A	25A	50A	50A	50A	50A	0.5A	3A
Total	130W		1300W				6W	15W
Total	1300W

Input

Input Voltage	110 ~ 240VAC ±10% (Active PFC)
Input frequency Range	50Hz - 60Hz, 15A - 7A

Connectors

1 x 20 + 4-Pin

1 x 8-Pin EPS 12V

10 x 6 + 2 PCI-E

9 x SATA

6 x Molex

1 x Floppy

1 x 4 + 4-Pin ATX/EPS

1 x OC Link

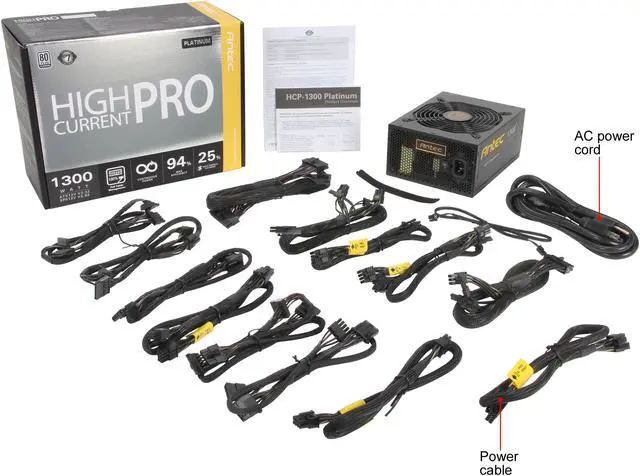

What's in the Box

General
Brand	Antec
Model	HCP-1300 Platinum

Details
Type	ATX12V / EPS12V
Maximum Power	1300 W
Fans	1
PFC	Active
Main Connector	20+8pin
+12V Rails	4
PCI-Express Connector	10 PCI-E connectors for multiple GPU support
SATA Power Connector	9
SLI	Yes
Haswell Support	Yes
CrossFire	Yes
Modular	Full Modular
Efficiency	94% (MAX)
Energy-Efficient	80 PLUS PLATINUM Certified
Input Voltage	110VAC - 240VAC ~ +/-10% (Active PFC)
Input Frequency Range	50/60 Hz
Approvals	UL, cUL, CB, CE, FCC, TuV, BSMI, CCC, C-Tick

Features
Features	1300W Continuous Power - Guaranteed 1300W of Continuous Power from Antec 80 PLUS PLATINUM certified - Up to 94% efficient, to reduce your electricity bill Save Energy and Money - Reduce your electricity bill by up to 25% AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support 16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes 28(20+8)-pin MBU socket - World's first socket for possible future MBU connectors 135 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime Thermal Manager - An advanced low voltage fan control for optimal heat & noise management High Current Rails - 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility 100% +12V - Output for maximum CPU & GPU support Multi PCI-E - 10 PCI-E connectors for multiple GPU support OC Link - Allows 2 HCP Platinums to work in tandem to power the most demanding systems CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP) All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology Stealth Wires - All wires darkened for minimal visibility in chassis

Dimension & Weight

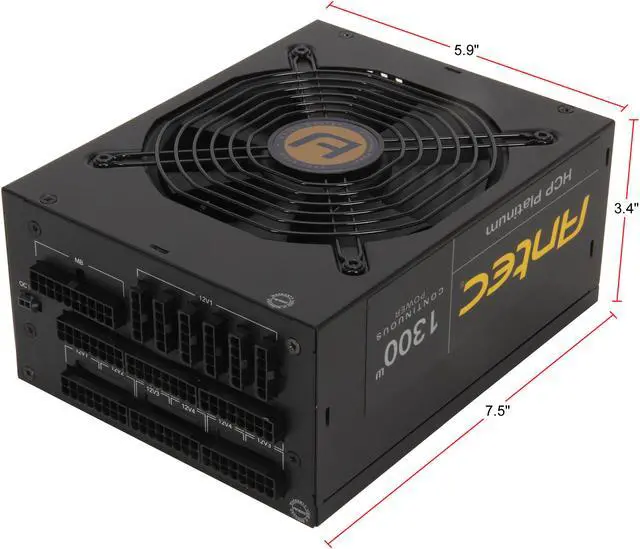

Dimensions	3.4" (H) x 5.9" (W) x 7.5" (D)
Weight	4.7 lbs.

Additional Information
Date First Available	June 27, 2013
