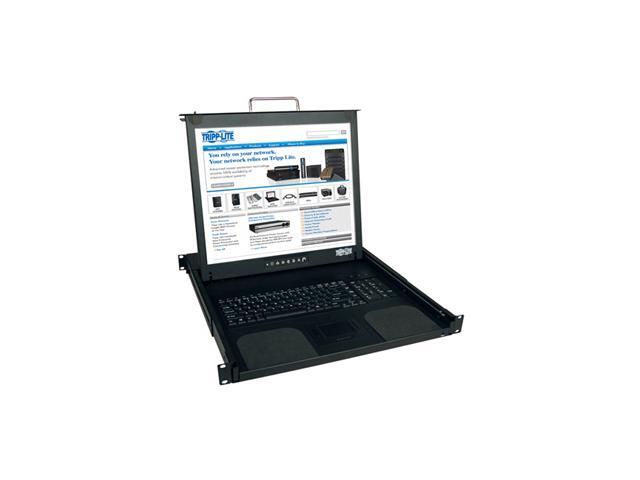

Tripp Lite Short-Depth Rackmount Console B021-000-19-SH

Easy to install and simple to operate, Tripp Lite's B021-000-19-SH Short-Depth Rackmount Console is the smart solution for controlling a computer, server or KVM switch in specialized vehicle projects where rack space may be limited or condensed, including rescue and military applications. The console is housed in a sliding 1U drawer that stores neatly in the rack when not in use. The B021-000-19-SH's heavy-duty, all-metal construction, high-quality LCD, premium connectors, uncomplicated controls and broad compatibility ensure trouble-free operation in demanding, high-availability environments.

All-in-One Control Solution

The B021-000-19-SH combines a full keyboard, numeric keypad, touchpad and 19in. color LCD in a short-depth 1U rack drawer for compact storage and easy access. No server-resident software is required, so server performance and reliability are never compromised. The B021-000-19-SH is also compatible with most PS/2 and USB KVM switches, making it easy to integrate with an existing system.

Space-Saving Design

The B021-000-19-SH can be mounted in racks with depths from 19in. to 30in., and rackmounting hardware is included. The console is housed in an all-metal 1U sliding drawer. Simply pull it out and flip up the screen when needed, and store it back in the rack when finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use. The B021-000-19-SH can also be mounted in a standard size rack enclosure.

Supports Multiple Platforms

The B021-000-19-SH supports both PS/2 and USB connections (USB to PS/2 adapter cable included). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated, including UNIX®, Linux, Windows®, Mac OS®, Solaris™ and more. The B021-000-19-SH is also compatible with most KVMs that are equipped with PS/2 and USB console ports. This enables the B021-000-19-SH to be integrated into an existing system, providing enhanced management capabilities without a major investment in new hardware.

High-Resolution LCD

The B021-000-19-SH's 19-in. LCD screen supports video resolutions of up to 1280 x 1024 (75Hz). DDC, DDC2 and DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

Peace of Mind

The B021-000-19 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a one-year warranty.

Technical Specifications

• LCD: 19in.
• Maximum video resolution: 1280 x 1024 (75Hz), DDC2B
• Local console port: HD15
• Material of construction: Metal housing
• Certifications: Tested to RoHS
• Warranty: One-Year

What's in the Box

• B021-000-19-SH-SH Rackmount Console
• External AC Power Adapter
• Console-to-KVM Switch Cable
• Owner's Manual
