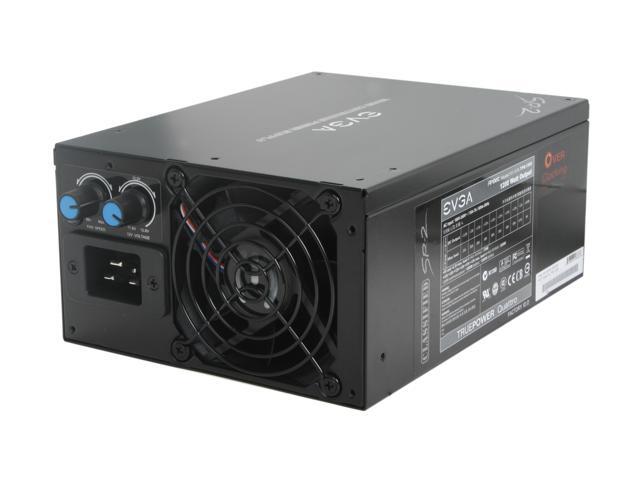

EVGA Classified SR-2 100-PS-1200-GR 1200W ATX12V / EPS12V SLI Ready CrossFire Certified 80 PLUS SILVER Certified Modular Active PFC Power Supply

Sold and Shipped by Newegg

ATX12V / EPS12V
Modular
80 PLUS SILVER Certified
110 - 240 VAC ± 10% 47 - 63 Hz
+3.3V@25A, +5V@30A, +12V1@38A, +12V2@38A, +12V3@38A, +12V4@38A, +12V5@38A, +12V6@38A, -12V@0.5A, +5VSB@6.0A

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Combining 1200 watts of stable and quiet power with cutting-edge efficiency and style, the EVGA Classified SR-2 1200 blasts ahead of the competition. Six +12V rails deliver unbeatably stable power that earns the rare 80 PLUS Silver distinction, with over 85% efficiency under 20%, 50% and 100% loads.

Factor in the ultra-quiet Pulse Width Modulation fan, Advanced Cable Management and the Extreme Voltage tuning Capabilities, the EVGA Classified SR-2 1200 leaves every other power supply in the dust. The Classified SR-2 1200 is designed to meet the needs of all EVGA motherboards including the new cutting-edge Classified SR-2 Dual Xeon motherboard.

80 PLUS Silver Certified The 80 PLUS Silver certified power supply provides high power efficiency at over 85% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
1200W Continuous Power The EVGA Classified SR-2 1200 features six +12V rails capable of delivering 38A to output continuous, steady 1200W to feed multi-core Core i7 and Core i5 CPUs and quad GPUs.
Advanced Hybrid Cable Management Combining traditional and modular PSU design, Advanced Hybrid Cable Management achieves low wire-transmission loss as well as better cable management for improved airflow.
PowerCache PowerCache is a high-performance capacitor that delivers an extra power reserve where you need it, when you need it most.
Extreme Voltage and Fan Tuning The EVGA Classified SR-2 1200 offers the ability to fine tune your +12V voltage and 80mm PWM cooling fan to suit any condition, whether you are pushing to the limits or just running silent.
SLI & CrossFire Ready Coming with 12 x 6+2-pin PCI-E and 3 x 6-pin connectors, the EVGA Classified SR-2 1200 is designed for building a quad SLI or CrossFireX gaming system.

Learn more about the EVGA 100-PS-1200-GR

Model

Brand: EVGA

Model: 100-PS-1200-GR

Series: Classified SR-2

Details

Type: ATX12V / EPS12V

Maximum Power: 1200W

Fans: 1 x 80mm Fan

PFC: Active

Main Connector: 24Pin

+12V Rails: 6

PCI-Express Connector: 3 x 6-Pin, 12 x 6+2-Pin

SATA Power Connector: 9

SLI: SLI Ready

CrossFire: CrossFire Certified

Modular: Modular

Energy-Efficient: 80 PLUS SILVER Certified

Over Voltage Protection: Yes

Input Voltage: 110 - 240 VAC ± 10%

Input Frequency Range: 47 - 63 Hz

Output: +3.3V@25A, +5V@30A, +12V1@38A, +12V2@38A, +12V3@38A, +12V4@38A, +12V5@38A, +12V6@38A, -12V@0.5A, +5VSB@6.0A

Approvals: UL, cUL, FCC, TUV. CE, C-tiCk, CCC, CB, BSMI

Dimensions: 3.40" (H) x 5.90" (W) x 7.90" (D)

Weight: 7.00 lbs.

Features

Connectors: 1 x Main connector (20+4Pin)
2 x 8 Pin ATX 12V / EPS 12V
6 x Peripheral
9 x SATA
1 x Floppy
15 x PCI-E

Features: PowerCache, a high-performance capacitor that delivers an extra power reserve when and where users need it most

80 PLUS Silver Certified - 85% or more efficiency at 20%, 50% and 100% loads

Designed to support quad core, Core i7 and Core i5 CPUs and quad GPUs

NVIDIA Quad SLI-Ready certified and ATI CrossFire certified

Highest quality Japanese brand capacitors ensure long-term reliability

Six +12V output rails and DC to DC Voltage Regulator Modules ensure supreme system stability

80mm cooling fan uses Pulse Width Modulation for whisper-quiet operation

Gold plated connectors for superior connectivity

Advanced Hybrid Cable Management system improves airflow and reduces clutter

Universal Input and Active PFC allow the Classified SR-2 Power supply to operate efficiently on any power grid

Industrial grade protection: OVP (Over Voltage Protection), UCP (Under Current Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
