Item#: N82E16817438007

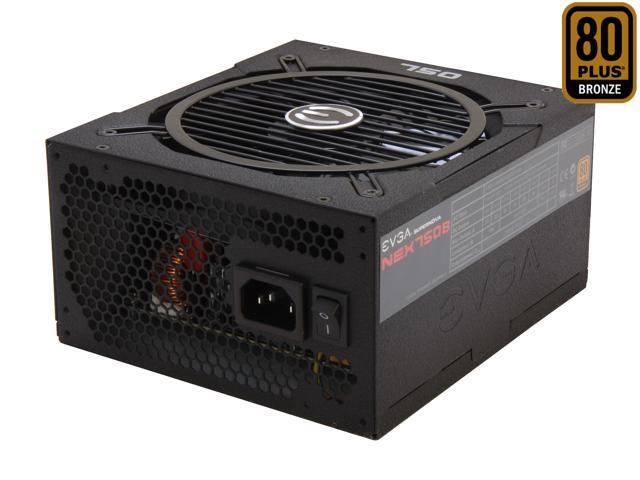

EVGA SuperNOVA NEX 750 B 80 PLUS BRONZE Certified 750W Active PFC ATX12V v2.31/EPS 12V v2.91 5 Year Warranty 120-PB-0750-KR SLI Ready CrossFire Ready Modular NEW 4th Gen CPU Certified Intel 4th Gen CPU Ready Power Supply

  • ATX12V / EPS12V
  • Modular
  • 80 PLUS BRONZE Certified
  • 100 - 240 V 50/60 Hz
  • +3.3V@25A, +5V@25A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A,+5VSB@3A, -12V@0.8A
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...


Here comes the EVGA SuperNOVA NEX750B Power Supply. Designed for enthusiasts, the NEX series is the best choice to power next generation of computers. Combining 750W of continuous power with exceptional performance, stunning efficiency, and cutting-edge features, the NEX series NEX750B power supply is what you need to take your system to the next level.

  • newegg 750W Continuous Power and 80 PLUS Bronze certification Trust EVGA to label all of their power supplies in Continuous Power, the steady power a PSU can output, rather than the amount delivered at its short lived peak. 80 PLUS Bronze certification in pending allows up to 85% efficiency under typical loads.
  • newegg Hybrid Modular The Hybrid Modular cable design allows only use of the cables you need to improve internal airflow and reduce clutter.
  • newegg Japanese Brand Caps The Japanese-made capacitors inside the EVGA NEX750B are renowned for high durability and long-term reliability.
  • newegg SLI and CrossFire Ready Designed for the ultimate machines, this power supply has two 6-Pin and four 6+2-Pin power connectors and is NVIDIA SLI and AMD CrossFire ready for amazing multi-GPU gaming.
  • newegg Heavy-duty protections Heavy-duty protections include OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) ensuring your system stays intact.

Learn more about the EVGA 120-PB-0750-KR

Model

Brand
EVGA
Model
120-PB-0750-KR
Series
SuperNOVA NEX750B BRONZE

Spec

Type
ATX12V / EPS12V
Maximum Power
750W
Fans
1
Main Connector
24Pin
+12V Rails
4
PCI-Express Connector
2 x 6-Pin, 4 x 6+2-Pin
SATA Power Connector
9
SLI
SLI Ready
Haswell Support
Certified
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
85% Typical
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Output
+3.3V@25A, +5V@25A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@20A,+5VSB@3A, -12V@0.8A
Approvals
UL, cUL, FCC, TUV, CE, C-tick, CCC, CB, BSMI
Dimensions
7.1" x 5.9" x 3.4"
Weight
8.5 lbs.

Features

Connectors
1 x 24pin ATX
2 x 4+4pin EPS 12V
4 x 6+2pin PCI-E
3 x 6pin PCI-E
9 x SATA
6 x Molex
1 x Molex to FDD
Features
80PLUS Bronze Certified.with up to 85% efficiency under typical loads

Highest quality Japanese brand capacitors ensure long-term reliability

Hybrid Modular design to reduce clutter and improve airflow

Quiet 2-ball Bearing fan for near-silent operation

High Amperage multi-rail design for maximum power and stability

Heavy-duty protection,including OVP, UVP, OCP, OPP, SCP and OTP

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the EVGA 120-PB-0750-KR

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Lyndon C.
  • 4/5/2014 1:55:49 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsEVGA P'Supply NEX750B

Pros: Good NewEgg delivery.
Unit started out quiet and seems to do the job. Smaller than I expected a 750W PS to be.

Cons: Power supply began to get a noisey fan within about 3 weeks ofperation --not looking forward to the RMA process. Will post a follow up on that when done. If EVGA does well on the exchange process, this will 5 eggs as I have no other complaints, but a noisey fan is unacceptable and it's gotta go.

Other Thoughts: Testing a new power supply: Just plugging in a modern power supply will not tell you if it is working or not as it has to detect load before it will spin the fan -- had me concerned at first since I thought I had a dead unit. There are two test pins that you can short if you must test the fan, but once it was all hooked up to the motherboard, etc. it ran just fine and is functioning well except for the new noise issue, which is a pain.

Did you find this review helpful? Yes No

  • Christopher B.
  • 3/30/2014 12:10:49 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat power supply

Pros: Affordable, looks nice, and does what it's meant to do. Plus it's EVGA!

Cons: Nothing for the past month or so.

Other Thoughts: If you're looking for an affordable power supply for a nice mid-end rig this'll do a great job! I got this while a rebate was going on, so it was a steal!

Did you find this review helpful? Yes No

  • Adam M.
  • 3/27/2014 3:31:46 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood overall

Pros: Runs nice and quiet, no issues with installation, not sure what more I can ask for in a power supply, for the price I recommend this to others.

Cons: None

Did you find this review helpful? Yes No

  • Lee H.
  • 3/25/2014 2:02:45 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExcellent

Pros: - easy installation
- cleaner install by attaching only the cables that your system needs
- quiet

Cons: None

Other Thoughts: This was a little overkill for the system I put together, but I don't like running the PS at near capacity.

My components:
1) GIGABYTE GA-H81.Amp-UP LGA 1150 Intel H81 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
2) Intel Core i7-4770 Haswell 3.4GHz LGA 1150 84W Quad-Core Desktop Processor Intel HD Graphics BX80646I74770
3) G.SKILL Ripjaws X Series 16GB (2 x 8GB) 240-Pin DDR3 SDRAM DDR3 1600 Desktop Memory Model F3-1600C9D-16GXM
4) SAMSUNG 840 Pro Series MZ-7PD512BW 2.5" 512GB SATA III MLC Internal Solid State Drive (SSD)
5) Western Digital WD10EZEX 1TB 7200 RPM 64MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive, Blue - OEM
6) ZOTAC ZT-61012-10M GeForce GTX 650 1GB 128-Bit GDDR5 PCI Express 3.0 x16 HDCP Ready Video Card
7) EVGA SuperNOVA NEX 750 B 80 PLUS BRONZE Certified 750W Active PFC ATX12V v2.31/EPS 12V v2.91
8) NZXT Phantom 410 Series CA-PH410-W1 Black/White Steel / Plastic ATX Mid Tower Computer Case
9) PLEXTOR Duplication Grade DVD CD Burner Drive CD-ROM SATA Model PX-891SAW

1 out of 2 people found this review helpful. Did you? Yes No

  • David J.
  • 3/24/2014 8:57:27 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsStable and plenty of juice

Pros: I've running this in my new rig with a AMD FX-8350 CPU and a AMD 280X CPU with no issues. The cable are nice and flexible.

Cons: None.

0 out of 1 people found this review helpful. Did you? Yes No

  • Michael S.
  • 3/21/2014 7:12:12 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsRANDOMLY POWERS OFF

Pros: None - It didn't work. See CONS

Cons: From the moment I first turned it on, my EVGA SuperNOVA NEX 750 B has powered off on it's own. This problem doesn't even allow my Windows 7 Pro installation flash drive to get past 50% completion. I have tried running the bare minimum and the PSU still fails. I have tried my other PSU with the same configuration and it runs perfectly.

Other Thoughts: AVOID

Manufacturer Response:

Hello Michael S,

Please contact our technical support 24/7 at 1-888-881-3842 option 1 or Newegg@evga.com and we will be glad to assist you with a replacement under warranty.

Regards,
EVGA Customer Support

Did you find this review helpful? Yes No

  • Susan W.
  • 3/18/2014 12:14:01 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat PSU for the price!

Pros: Runs well under load.
Fairly quiet.
Great Price per watt.

Cons: It is Not Fully Modular.

Other Thoughts: This PSU is great for anyone looking for a higher watt power supply on a budget.

Did you find this review helpful? Yes No

  • Daniel H.
  • 3/17/2014 4:50:26 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsUnstable X2, Boat Anchor

Pros: EVGA SuperNOVA NEX 750 B 80 PLUS BRONZE Certified 750W Active PFC ATX12V v2.31/EPS 12V v2.91 5 Year Warranty 120-PB-0750-KR SLI Ready CrossFire Ready Modular NEW 4th Gen CPU Certified Intel 4th Gen CPU Ready Power Supply
Packaged well and product exactly as described. The semi modular design offered adequate cables, good length for larger cases and sleeving that works fine.

Cons: Once you build enough custom computers you put them together first on the test bench before you do the install with hiding wires etc. Glad I did as this right out of the box shows significant fluxuation in voltages. This PSU would start the system however the system would pop up error messages stating over voltage, cycle off and reboot into the prompt, Voltage monitoring was shutting it down. Turning off Voltage monitoring in the bios and the board and yes it would run. I recorded and observed a couple test and verified via multi-meter that the voltage fluxuation IMHO is unacceptable and do not want to risk burning up other components. The same system runs fine with 2 other known power supplies on my bench. RMA immediately approved $20 to ship it back and the replacement powersupply of exact same model has the same issues. Another RMA??? No thanks this thing is going to be an boat anchor.

Other Thoughts: For the cost of RMA shipping I could have purchased a much higher level of PSU and I will from now on. Lesson learned, in 15 years and hundreds of builds I have had only one other powersupply fail and that was 2.5 years into a 3 year warranty. After reading other reviews on newegg I would NOT recommend this PSU. Cheaper is not always better.

I will be using this PSU on my bench to power non crucial items and projects like FreeTrackNoIR headset builds and after further monitoring will post results.

Manufacturer Response:

Hello,

This PSU should definitely NOT fail or have such fluctuations. It is unfortunate but sometimes these things can happen, please contact our technical support if you have any issues and we will assist you with a replacement to resolve your issue. You can contact us 24/7 at 1-888-881-3842 or at Newegg@evga.com.

Regards,
EVGA Customer Support

Did you find this review helpful? Yes No

  • Josh W.
  • 3/13/2014 7:41:27 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year

3 out of 5 eggsLongevity isn't really long

Pros: Solid, gave what I needed when I needed it, efficient, decent supply.

Cons: After a month the +12V Rail Fluctuated while gaming and my PC would shut off and restart on its own. I had to get a new PSU shipped in.

Not sure if I was the only one with this problem, or all the units stop working after a month of usage.

Other Thoughts: They could've made it more reliable

Manufacturer Response:

Hello Josh,

Sorry to hear you had a problem with your unit. They should definitely not fail in such a short time, but like any electrical component could experience problems, however this is rare. If you do have any future issues please contact our technical support 24/7 at 1-888-881-3842 or at Newegg@evga.com and we will assist you.

Regards,
EVGA Customer Support

0 out of 1 people found this review helpful. Did you? Yes No

  • Nathan H.
  • 3/12/2014 3:54:55 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggsLOUD

Pros: Powerful
works great
slick cable styling
semi-modular

Cons: This overpowers all the other fans in my computer to the point I can't tell how much sound the other fans are making when this is turned on. The sound diminishes when on it's side, but still decently loud.

Other Thoughts: Would not buy again due to the noise level

Manufacturer Response:

Hello,

The fan should not really be that loud, it's possible there may be a problem with it. Please contact our technical support 24/7 at 1-888-881-3842 or via email at Newegg@evga.com and we can look into the options.

Regards,
EVGA Customer Support

Did you find this review helpful? Yes No
