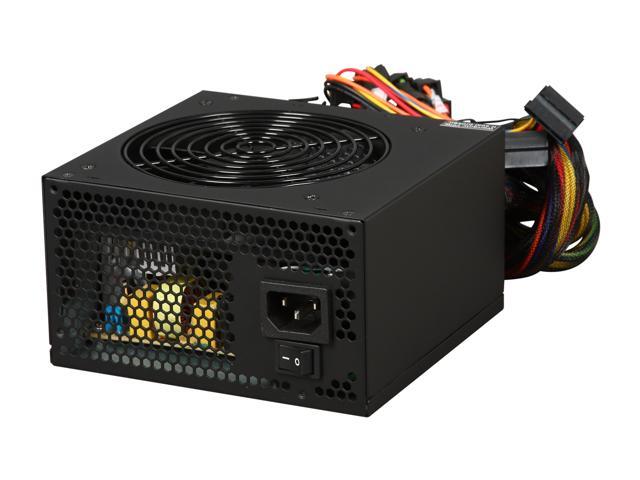

EVGA 430 W1 100-W1-0430-KR 80+ WHITE 430W Power Supply

Ships from United States.

Sold and Shipped by Newegg

ATX12V / EPS12V
80 PLUS Certified
Up to 34A +12V
Active PFC
Intel Haswell Compatible

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

EVGA 430W 80 PLUS Certified Active PFC Power Supply

When building on a budget, the EVGA 430W 80 PLUS is a great choice at a low cost. Supporting 34A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 430W's compact design, well-placed power switch and fully sleeved cables. The 430W offers the connections and protections needed for basic system builds. With a standard three-year warranty and ultra quiet fan design, the 430W will be a great asset for your next build on a budget.

Features

Exceptional 3-year warranty and unparalleled EVGA customer support
80 PLUS Certified, with up to 80% efficiency under typical loads
High Amperage Single-Rail design for maximum power and efficiency
Quiet and Intelligent Auto Fan for near-silent operation
Heavy-duty Power Protections provide peace of mind during operation

Continuous Power
Trust EVGA to label all of our power supplies in Continuous Power, the steady power a PSU can output continuously, rather than the amount delivered at its short-lived peak.

Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Energy Efficient
See the difference with top-quality 80 PLUS certified power supplies by EVGA to offer highly efficient, clean power to all products and devices.

Gallery

SPECIFICATIONS

Heavy-Duty Protection Include:

OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)

AC Input	100 ~ 240VAC
DC Output	+5V	+3.3V	+12V	-12V	+5Vsb
Max. Output	15A	24A	34A	0.3A	3A
Combined	120W		408W	3.6W	15W
Output Power	430W @ 122°F (50°C)

Connectors:

1 x 24 Pin ATX
1 x 4 + 4-Pin EPS12V
1 x 6 + 2-Pin PCI-E
4 x SATA
1 x Molex

Cable Length
ATX Cable	1 x 21.66" (550mm)
EPS Cable	1 x 23.66" (600mm)
PCIE Cable	1 x 21.66" (550mm)
SATA Cable	2 x 17.75" (450mm), 22.5" (570mm)
Four-Pin Peripheral Cable	1 x 17.75" (450mm), 22.5" (570mm), 27" (690mm) (f)
Floppy Cable	1 x 4.75 (120mm)
AC Power	1 x 47.25" (1200mm) (m)

What's in the Box

Learn more about the EVGA 100-W1-0430-KR

Model

Brand: EVGA

Model: 100-W1-0430-KR

Details

Type: ATX12V / EPS12V

Maximum Power: 430W

Fans: 1 x 120mm Sleeve Bearing

PFC: Active

Main Connector: 24Pin

+12V Rails: Single

PCI-Express Connector: 1 x 6+2-Pin

SATA Power Connector: 4

Haswell Support: Yes

Modular: Non-Modular

Energy-Efficient: 80 PLUS Certified

Over Voltage Protection: Yes

Input Voltage: 100 - 240 V

Input Frequency Range: 50/60 Hz

Input Current: 10 - 5A

Output: +3.3V@24A, +5V@15A, +12V@34A, +5VSB@3A, -12V@0.3A

MTBF: >100,000 Hours

Approvals: TUV, cUL, CE, FCC, WEEE, RoHS

Dimensions: 3.30" x 5.90" x 5.50"

Weight: 3.00 lbs.

Features

Connectors: 1 x 24-Pin ATX
1 x 4+4-Pin EPS12V
1 x 6+2-Pin PCI-E
4 x SATA
3 x Four-Pin Peripheral
1 x Floppy

Features: Quiet and Intelligent Auto Fan for near-silent operation

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Group

Model: 100-W1-0430-KR

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
