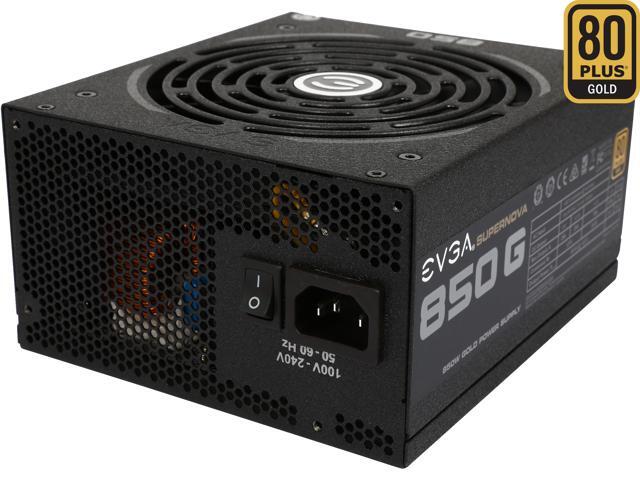

EVGA SuperNOVA 850 GS 220-GS-0850-V1 80+ GOLD 850W Fully Modular EVGA ECO Mode Includes FREE Power On Self Tester Power Supply

Ships from United States.

Sold and Shipped by Newegg

ATX12V / EPS12V
Full Modular
80 PLUS GOLD Certified
100 - 240 V 50/60 Hz
+3.3V@25A, +5V@25A, +12V@70A, +5VSB@3A, -12V@0.5A

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

EVGA has launched the new GS/PS PSU series. These power supplies follow the EVGA tradition of uncompromised power and performance, so we upped the ante and made it SILENT. The GS/PS series of PSU's offer superior performance, Gold and Platinum level efficiency and extremely low noise levels making it the perfect PSU for a sound conscious environment. These power supplies also feature ECO mode meaning the fan will run only when necessary further reducing noise level and power consumption! Backed by a 7 year Warranty and Japanese capacitor design makes this PSU the right choice for efficiency and noise level today, and will be with you well into tomorrow.

Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow
Eco Mode
Fan does not switch on until PSU load is above 25%
Standard ATX Form Factor
Will fit most mATX, ATX, EATX, HPTX, and XLATX cases

AC Input	Large 70 amp single + 12v rail 100 - 240 VAC, 12 - 6A, 50 - 60 Hz
DC Output	+3.3V	+5V	+12V	+5Vsb	-12V
MAX Output	25A	25A	70A	3A	0.5A

Combined	125W		840W	15W	6W
Output Power	850W @ +50C Industrial grade testing all load and regulation testing done at 50c

Features

Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 850GS provides up to 70A on a single rail!

LLC Resonant Circuit Layout
Full DC to DC, LLC resonant circuit design improves efficiency.

Fully Modular
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

Teflon Nano-Steel Fan Bearing
High-quality Teflon Nano-Steel bearing ensures long life and nearly silent operation.

Gold Rated Efficiency
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 90% efficient or higher.

Fan Noise Chart

ECO mode, keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.

Hardware Protection

While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections to keep you running strong and your hardware safe.

OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)

Awards

JonnyGURU.com 2015.02.01
"EVGA's GS series is off to a good start thanks to this unit. It's incredibly stable, more efficient than the certification leads us to believe, and wonderfully clean at the outputs."

Learn more about the EVGA 220-GS-0850-V1

Model

Brand: EVGA

Model: 220-GS-0850-V1

Details

Type: ATX12V / EPS12V

Maximum Power: 850W

Fans: 135mm Teflon Nano-Steel Bearing

Main Connector: 24Pin

+12V Rails: Single

PCI-Express Connector: 8 x 6+2-Pin

SATA Power Connector: 12

SLI: Yes

Modular: Full Modular

Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Overload Protection: Yes

Input Voltage: 100 - 240 V

Input Frequency Range: 50/60 Hz

Input Current: 12-6A

Output: +3.3V@25A, +5V@25A, +12V@70A, +5VSB@3A, -12V@0.5A

MTBF: >100,000 Hours

Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

Dimensions: 3.39" x 5.91" x 6.69"

Weight: 8.00 lbs.

Modular: Yes

Features

Connectors: 1x 24 Pin ATX
2x 8pin (4+4) EPS (CPU)
8x 8pin (6+2) PCIE
12x SATA
5x Four-Pin Peripheral
1x Floppy

Features: 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

Highest quality Japanese brand capacitors ensure long-term reliability

Fully Modular to reduce clutter and improve airflow

NVIDIA SLI & AMD Crossfire Ready

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), and SCP (Short Circuit Protection)

Unbeatable 5 Year Warranty and unparalleled EVGA Customer Support

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 7 years
Limited Warranty period (labor): 7 years
