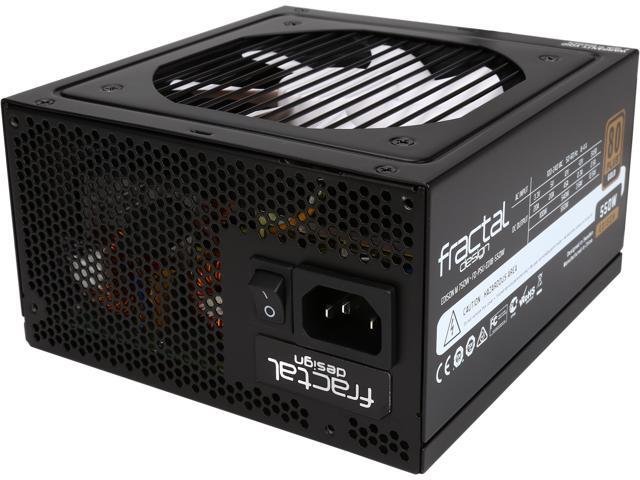

Fractal Design Edison M 550W Modular 80 PLUS GOLD Certified Power Supply

Sold and Shipped by Newegg

ATX12V / EPS12V
Modular
80 PLUS GOLD Certified
+3.3V@20A, +5V@20A, +12V1@45A, -12V@0.3A, +5VSB@2.5A

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS® Gold certified efficiency.

Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation and the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions.

Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum.

The Edison M is a highly reliable choice, for both gaming computers and powerful workstations.

Learn more about the Fractal Design FD-PSU-ED1B-550W

Model

Brand: Fractal Design

Model: FD-PSU-ED1B-550W

Details

Type: ATX12V / EPS12V

Maximum Power: 550W

Fans: 120mm FDB bearing

+12V Rails: Single

Modular: Modular

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Overload Protection: Yes

Output: +3.3V@20A, +5V@20A, +12V1@45A, -12V@0.3A, +5VSB@2.5A

MTBF: >100,000 Hours

Dimensions: 3.38" x 5.90" x 6.30"

Weight: 4.85 lbs.

Protection

Short Circuit Protection: Yes

Under Voltage Protection: Yes

Over Current Protection: Yes

Over Temperature Protection: Yes

Features

Features: Modular construction to assist with a clean build with only the most essential cables permanently attached

80PLUS® Gold efficiency with a 5 year warranty on the PSU

ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs

DC-DC design for improved system stability and maximum 12V output

Tight voltage regulation: +/- 2% for +12V and +/- 3% for minor rails

Japanese electrolytic capacitors, rated at 105°C; Japanese and Taiwanese solid polymer capacitors

Extra long ATX 12V cable

Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings

Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

Sleek look to add to the overall design of your build
