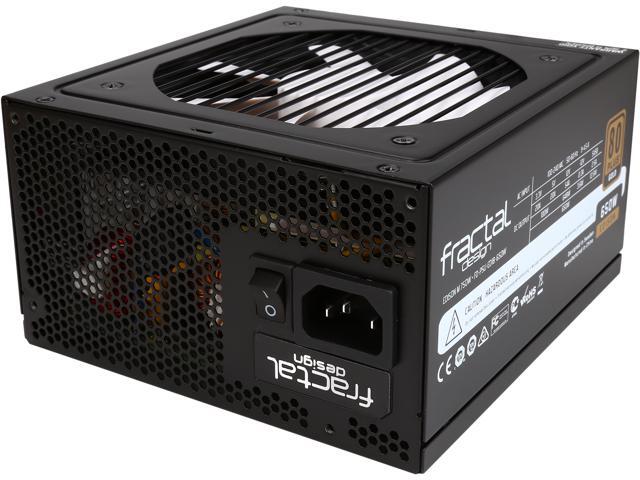

Fractal Design FD-PSU-ED1B-650W 650W Power Supply

Skip Image Gallery

Fractal Design Edison M 650W Modular 80 PLUS GOLD Certified Power Supply

(1)

Write a Review

Sold and Shipped by Newegg

ATX12V / EPS12V
Modular
80 PLUS GOLD Certified
+3.3V@20A, +5V@20A, +12V1@54A, -12V@0.3A, +5VSB@2.5A

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The Fractal Design Edison M series of power supplies feature excellent electrical performance, including 80PLUS® Gold certified efficiency.

Designed for maximum reliability, the Edison M units feature Japanese electrolytic capacitors with a full protection suite, including over-temperature protection. The modular cable system assists with a clean installation and the extra-long ATX12V cable accommodates cases with bottom mounted PSU positions.

Fractal Design Edison M units are equipped with a large, temperature-controlled FDB-bearing 120mm fan contributing to a maximum lifespan while keeping noise levels at a minimum.

The Edison M is a highly reliable choice, for both gaming computers and powerful workstations.

Learn more about the Fractal Design FD-PSU-ED1B-650W

Model

Brand: Fractal Design

Model: FD-PSU-ED1B-650W

Details

Type: ATX12V / EPS12V

Maximum Power: 650W

Fans: 120mm FDB bearing

+12V Rails: Single

Modular: Modular

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Overload Protection: Yes

Output: +3.3V@20A, +5V@20A, +12V1@54A, -12V@0.3A, +5VSB@2.5A

MTBF: >100,000 Hours

Dimensions: 3.38" x 5.90" x 6.30"

Weight: 5.29 lbs.

Protection

Short Circuit Protection: Yes

Under Voltage Protection: Yes

Over Current Protection: Yes

Over Temperature Protection: Yes

Features

Features: Modular construction to assist with a clean build with only the most essential cables permanently attached

80PLUS® Gold efficiency with a 5 year warranty on the PSU

ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs

DC-DC design for improved system stability and maximum 12V output

Tight voltage regulation: +/- 2% for +12V and +/- 3% for minor rails

Japanese electrolytic capacitors, rated at 105°C; Japanese and Taiwanese solid polymer capacitors

Extra long ATX 12V cable

Silent, temperature-controlled 120mm fan with quiet, long-life FDB bearings

Full protection suite: Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

Sleek look to add to the overall design of your build

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
