Item#: 9SIA4H81E87016

FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

  • ATX12V
  • Modular
  • 80 PLUS GOLD Certified
  • 100 - 240 V 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V@70A, -12V@0.5A, +5VSB@3.0A
  • Pin It
  • Email this page
ICON Loading...

Learn more about the FirePower Technology, Inc. PPCMK3S850

Model

Brand
PC Power and Cooling
Model
PPCMK3S850
Series
Silencer Mk III Series

Spec

Type
ATX12V
Maximum Power
850W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
6 x 6+2-Pin
SATA Power Connector
12
SLI
SLI Ready
Haswell Support
Yes
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
Up to 90%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
10A
Output
+3.3V@24A, +5V@24A, +12V@70A, -12V@0.5A, +5VSB@3.0A
MTBF
100,000 Hours
Approvals
cTUVus, CB, TUV, CCC, C-tick, GOST, BSMI, China RoHS, WEE, RoHS
Dimensions
5.91" x 3.39" x 7.09"
Weight
5.73 lbs.

Features

Connectors
1 x 20+4pin main connector
2 x 4+4pin EPS12V
6 x 6+2pin PCI-E
4 x Peripheral
12 x SATA
1 x Floppy adapter
Features
Continuous output rated at a demanding 50 degrees C ambient

Dual Thermal Control System: Normal Mode and Silent Mode operation

Metallic modular connector for industrial grade durability and excellent conductivity

Build with 100% NCC Japanese low ESR 105 degrees C capacitors for high reliability

Single +12V rail for efficient power distribution in your system

Compliant with the latest ATX12V v2.31 and SSI PSDG standard for worry-free compatibility

140mm double ball-bearing fan varies RPM by load and temperature for whisper quiet operation

80Plus Gold certified for up to 90% efficiency under real world operating environments

ErP compliant for lower power usage in standby or off mode

Active Power Factor Correction (PFC) to effectively regulate input voltage

Industrial grade protection circuitry (over-voltage, over-power, and short circuit) for protecting your valuable components

Quick Info

Warranty

  • Limited Warranty period (parts): 7 years
  • Limited Warranty period (labor): 7 years


Customer Reviews of the FirePower Technology, Inc. PPCMK3S850

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go

Showing 17 of 17 reviews - Clear Filters

  • Michael C.
  • 5/21/2014 11:35:30 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAwesome

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Easy instal, runs super quiet even in normal mode, gets rid of access unused cords that would just be sitting in the bottom of the case blocking up fan air.

Cons: it's a bit bigger and in I have a huge case it fits flush to where the motherboard starts at the bottom of the case. If you don't have a big case this may not be the power supply for you.

Did you find this review helpful? Yes No

  • BRIAN P.
  • 4/15/2014 4:09:52 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggs

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Whisper quiet. Easy mounting. Mostly modular.

Cons: I have 2 cons. 1. They should have provided a bit more variety of cables. Only 1 cable for the old molex connectors I felt was a bit low. 2. It needs to be completely modular. I didn't need all the PCIe power cables and wish that you had the choice to only use the cables you need. I didn't realize going in how many unused cables I would have to hide/tuck aside.

Other Thoughts: Great product and does exactly what I need it to do, and it does it without making hardly the slightest noise. I would certainly buy another if needed and recommend it to others.

1 out of 1 people found this review helpful. Did you? Yes No

  • Affan S.
  • 1/25/2014 10:56:13 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Powerful, energy saving, quality made.

Cons: None

Did you find this review helpful? Yes No

  • JASON C.
  • 1/4/2014 9:57:02 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsIf you blow it up, you need more amps.

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: I'm running a standard rig w/ a Crosshair IV AM3+ board and two very power hungry video cards EVGA 560 GTX's which require two 12v power inputs for each card. The recommended amperage for each was a minimum of 18 amps(found in very fine print on the bottom of the boxes), so I needed a combined 36 amps on the 12v rail and this power supply does the trick. Btw, I have the 850-w model. I've blown two power supplies from CoolMax, so this was the perfect replacement to feed the power hungry cards.

Cons: None

0 out of 3 people found this review helpful. Did you? Yes No

  • Jonathan M.
  • 12/31/2013 2:17:07 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwesome power supply

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Runs an HDD, 2 SSDs, and i5 processor, 3 case fans, and TWO R9 290s with NO problem.

Cons: None

Other Thoughts: * Intel Core i5 3450S @ 2.80GHz
* 16.0GB Dual-Channel DDR3
* ASUSTeK COMPUTER INC. SABERTOOTH Z77
* Dual ATI Radeon R9 290s
* SAMSUNG SSD 830 Series
* Western Digital Green
* Crucial SSD M4 Series
* Lite-On DVD Burner

1 out of 1 people found this review helpful. Did you? Yes No

  • Lydia M.
  • 12/28/2013 12:04:57 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsWanted a replacement???

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Almost lasted a week?

Cons: Thing didn't last a week. I ask for a REPLACEMENT and I get refund I'm very unhappy with this purchase all I did was waste my money to ship it back to them not happy about this!

1 out of 4 people found this review helpful. Did you? Yes No

  • John D.
  • 12/11/2013 4:30:25 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat PSU

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Quite.
Compatible with everything.
Good build and cord control.

Cons: None, additionally go this on Black Friday sale for virtually nothing.

Other Thoughts: Nothing but good feelings for this PSU.

1 out of 2 people found this review helpful. Did you? Yes No

  • Joseph O.
  • 12/7/2013 11:43:19 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsJust what I was looking for.

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Performs great and LOVE that it's white to compliment the white cooler master storm stryker case I got.

Cons: none

Other Thoughts: Great product for a reasonable price.

Manufacturer Response:

Dear Joey,

Thank you for sharing your great feedback! We sincerely appreciate and enjoy reading your positive comments. The Silencer Mk III Power Supply is an outstanding unit and will offer you total peace of mind for years to come.

Thank you for your purchase!

Sincerely,

PC Power & Cooling Support
www.pcpower.com

Did you find this review helpful? Yes No

  • FRANK L.
  • 11/27/2013 3:19:14 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat Power Supply...OCZ filing for bankruptcy

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: Solid power. Always loved my PC Power supplies. Years with no problems.

Cons: Parent OCZ Filing for Bankruptcy, Announces Offer From Toshiba to Purchase Assets on Nov. 27th 2013. Brings into question warranty status of OCZ products in the future.

Other Thoughts: If the deal with Toshiba doesn't fly, then they will either sell off the assets or liquidate. Difficult market conditions everywhere now.

1 out of 1 people found this review helpful. Did you? Yes No

  • Beom-Soo K.
  • 10/20/2013 1:16:43 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat/Solid

This review is from: FirePower Silencer MK III 850W 80Plus Gold Metallic Aviation Sem-Modular ATX PC Power Supply PPCMK3S850, formerly PC Power & Cooling

Pros: I have a intel haswell 4670k and a geforce 760 and this has no problems what so ever. Just flawless as of now.

Cons: Personal issue, Antec p182 case is a bit cramped for this psu. I had to remove the fan on the bottom/middle of the case to make this fit. Just be aware Antec p182 users.

Did you find this review helpful? Yes No

ICON Loading...
Are you an E-Blast Insider? Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.

Home
Home >
Computer Hardware >
Power Supplies >
Power Supplies >
FirePower Technology, Inc. >
Item#: 9SIA4H81E87016
Related Products

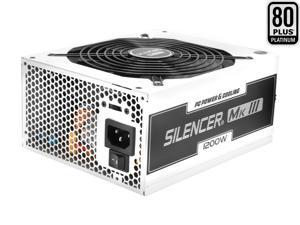

ModelBrandPC Power and CoolingModelPPCMK3S1200SeriesSilencer Mk III SeriesSpecTypeATX12V / ...
