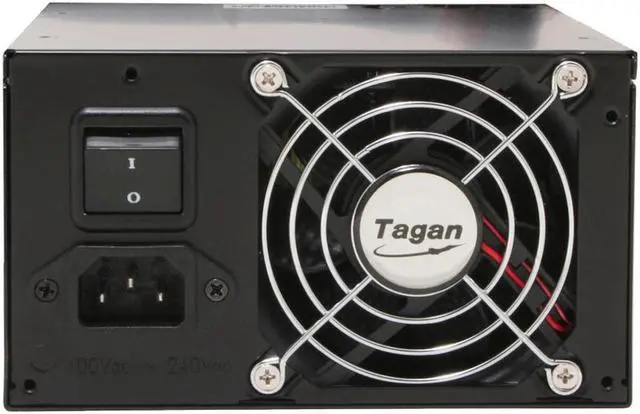

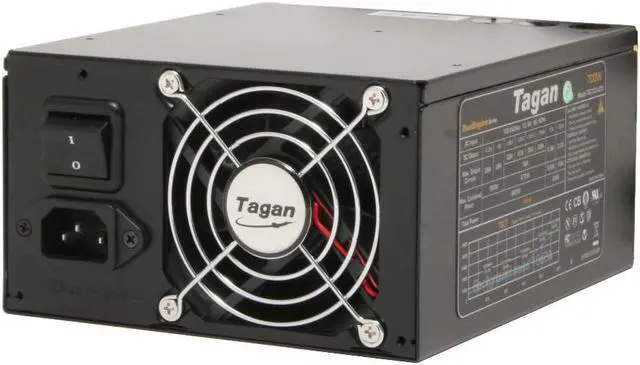

Tagan TG1100-U96 1100 Watts ATX12V / EPS12V SLI Certified CrossFire Ready Active PFC Power Supply

Name: Tagan TG1100-U96 1100 Watts Power Supply
Brand: TAGAN
SKU: N82E16817714001
Rating: 5 (27 reviews)

ATX12V / EPS12V
100 - 240 V 50/60 Hz
+3.3V@28A,+5V@28A,+12V1@20A,+12V2@20A,+12V3@20A,+12V4@20A, +12V5@20A,+12V6@20A,-12V@0.8A,+5VSB@6.5A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (27)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TAGAN TG1100-U96

General
Brand	Tagan
Model	TG1100-U96

Details
Type	ATX12V / EPS12V
Maximum Power	1100 Watts
Fans	2
PFC	Active

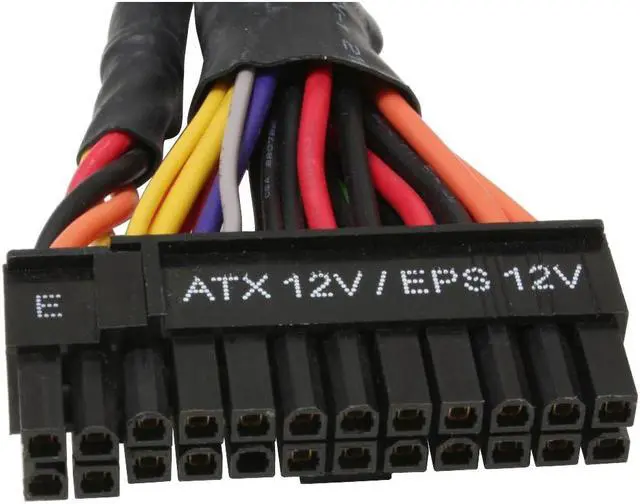

Main Connector	20+4Pin
+12V Rails	6
PCI-Express Connector	2 x 6-Pin, 2 x 6+2-Pin
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	No
Efficiency	>80%
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	15/8A

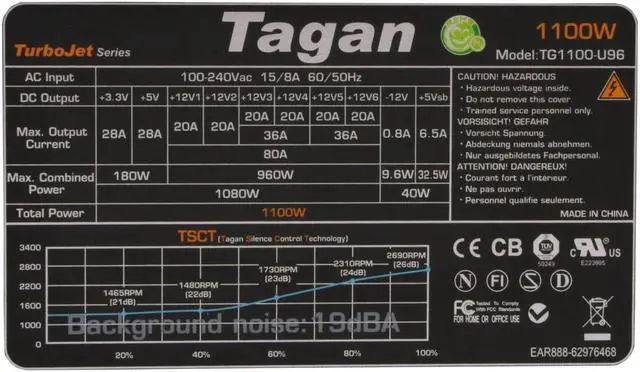

Output	+3.3V@28A,+5V@28A,+12V1@20A,+12V2@20A,+12V3@20A,+12V4@20A, +12V5@20A,+12V6@20A,-12V@0.8A,+5VSB@6.5A
Approvals	CE, CB, cUL, FCC, TUV

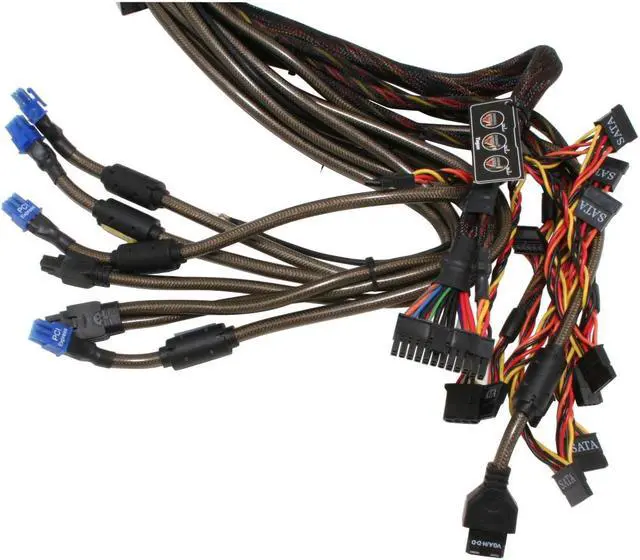

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8pin) 2 x peripheral 8 x SATA 2 x Floppy 4 x PCI-E

Features
Features	Perfect output voltage stability guaranteed by our Dual Transformer Technology (DTT) even at the highest power consumption Four separate 6-pin cables for PCI Express graphic cards with a special EMI shielding for high-current requirements of graphic cards – both today’s generations and into the future SATA to molex adapters Molex to Floppy cable Compatible with Intel EPS12V 2.9 and downwards Universal support for various motherboards because of 20+4 pin motherboard supply connector as well as 4 pin and 8 pin +12 V connectors for 20, 20+4, 24+4, and 24+8 supply configurations. Combo-S2M adapter for supplying all types of hard drives 110-240 VAC supply voltage input for using in all countries in the world Efficiency better than 80% and directive 2002/95/EC conformity (directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment) for a better environment friendliness

Additional Information
First Listed on Newegg	November 16, 2006
