Item#: N82E16817802091

ATEN CL1000M 17" Single-Rail LCD Integrated Console

  • 1 Port Computer Connections
  • 1 Port Monitor Connections
  • Video Resolution 1280 x 1024
  • Email this page
ICON Loading...

17 in. Single Rail LCD Console

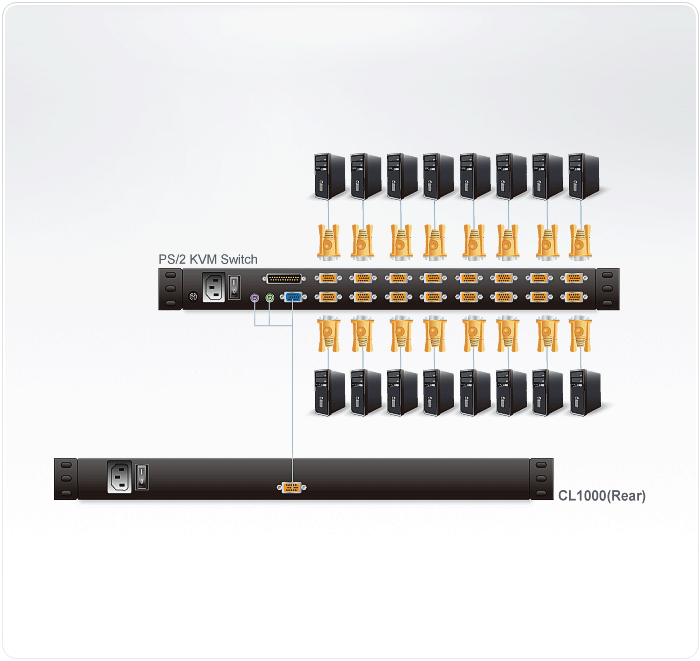

The CL1000 is a KVM console module that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.

Features

  • Exclusive LED illumination light - Designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with a 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
  • LCD Module rotates up to 115 degrees for a more comfortable viewing angle
  • Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
  • Compatible with most PS/2 KVM Switches
  • Internal power built in
  • Adjustable depth to fit within a rack
  • High video resolution: Up to 1280 x 1024 @ 75Hz - Supports DDC, DDC2, DDC2B
  • DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
  • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese

Specifications


Power Consumption120V 60Hz 22.8W / 230V 50Hz 24W
Emulation
KeyboardPS/2
MousePS/2
Computer Connections
Direct1
CPU Connectors
Keyboard, Mouse, and Monitor1 x SPHD-15 Female
Connectors
Power3-Prong AC Socket
Environment
Operation Temperature32 - 122°F (0 - 50°C)
Storage Temperature-4 - 140°F (-20 - 60°C)
Humidity0 - 80% RH

Physical Properties
Unit Weight30.0 lbs
HousingMetal
Unit Weight with package42.0 lbs
Unit Package Dimensions28.3 x 26.8 x 5.6 in.
Unit Dimension23.6 x 18.9 x 1.8 in.

Learn more about the ATEN CL1000M

Model

Brand
ATEN
Model
CL1000M

Spec

PC Connectors
1 x SPHD-15 Female
Computer Connections
1 Port
Monitor Connections
1 Port
Video Resolution
1280 x 1024
Temperature
0ºC to 50ºC(32ºF to 122ºF)
Humidity
0% to 80%,Non-Condensing
Dimensions
23.6" x 18.9" x 1.8"
Weight
30.0 lbs.

Features

Power Features
120V 60Hz 22.8W / 230V 50Hz 24W
Features
Integrated KVM console featuring a 17" LCD monitor in 1U heigh.
Dual Consoles Design - remote access ready
Compatible with all ATEN KVM Switches and most of KVM switch in the market
Built in internal power 1280 x 1024 resolution assures crisp video display
Less than 1 U high mountable rack
Adjustable depth to fit within the different racks

Manufacturer Warranty

Parts
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the ATEN CL1000M

There are no reviews yet... do you own this product? Write a Review
