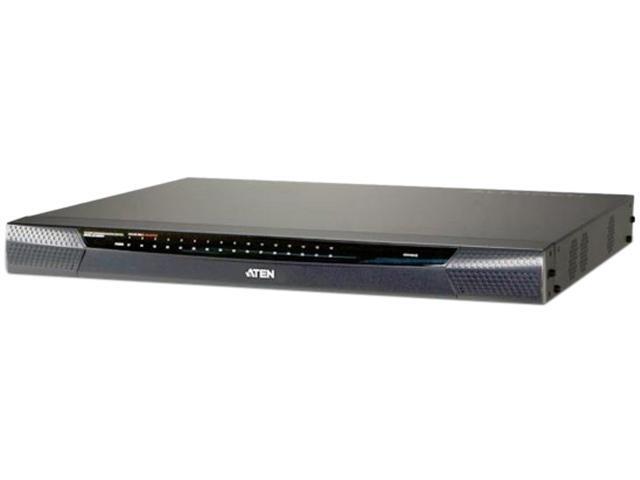

ATEN KM0532 KVM

Sold and Shipped by Newegg

32 Ports Computer Connections
5 Ports Monitor Connections
Video Resolution 60Hz

Overview
Specifications
Warranty & Returns
Reviews
Q&A

ATEN KM0532 KVM Switch are designed for modern data centers that require reliable, high security access and control of multiple servers. With non-blocked access and flexible expansion support. KM0532 KVM Switch offer high quality video sessions for secure, real-time control of your entire data center devices.

Learn more about the ATEN KM0532

Model

Brand: ATEN

Model: KM0532

Details

Type: RJ-45

PC Connectors: RJ-45

Console Connectors: RJ-45

Computer Connections: 32 Ports

Monitor Connections: 5 Ports

Video Resolution: 60Hz

PC Selection: Hotkeys, OSD

LED Indicators: On Line: 5 Console (Green)
Port Status: 32 Dual-colored (Green on line / Red selected)
Power On: 1 (Blue)

Environmental

Temperature: Operation Temperature: 32F~122F (0C~50C)
Storage Temperature: -4F~140F (-20C ~ +60C)

Humidity: 0-80% RH, Noncondensing

Features

Power Features: Power Input Rating: 100-240V AC, 50/60 Hz
Power Consumption: 120V 50W 171 BTU/h | 230V 51W 174 BTU/h

Features: Five consoles independently and simultaneously control up to 32 directly connected computers
Standardized graphical user interface - consistent across all Altusen products - saves on training time and costs - increases user efficiency
Embedded web interface for easy system configuration.
Redundant power supplies
Virtual Media Support - allows sharing of directly-connected USB storage devices to all servers connected with virtual media enabled adapter cables
Power Association enables switch's KVM ports to be power controlled via associated Altusen PON products
Dual Root functionality allows you to expand your top-level KM0532 deployment to 10 consoles.
RS-232 port permits an administrator user logged in over the port to perform Console and KVM port access and control.
Full KVM backup for restoring configuration and user data
Supports up to 1024 user and 255 group accounts
Audio support for multimedia-capable devices combined with audio enabled adapter cables ( see CPU and console requirements)
Three level password security: Super Administrator, Administrator, User
Port level user access control through out the entire installation
Up to 7 slave switches can be daisy chained from a master switch
Switches can be cascaded to three levels to access and manage more than 8,000 computers
Convenient computer selection via intuitive hotkey combinations or GUI
The port list automatically expands when stations are added - port names are automatically reconfigured when the station sequence changes
User's display automatically adjusts to resolution differences on the remote servers
Auto Scan feature for monitoring user-selected computers
Video resolutions 1280 x 1024 @ 60 Hz up to 900ft with Auto Signal Compensation (ASC) - no dip switch settings
Compact design - rack mounts in only 1U of rack space

Dimensions & Weight

Dimensions: 17" x 16.3" x 1.7"

Weight: 14 lbs.

Package Contents

Package Contents: KM0532
Power cord x2
Manual
Quick Start Guide
Rack mount kit
Firmware up grade cable
Grounding strap
Rubber feet for desktop use.
