Item#: N82E16819113282

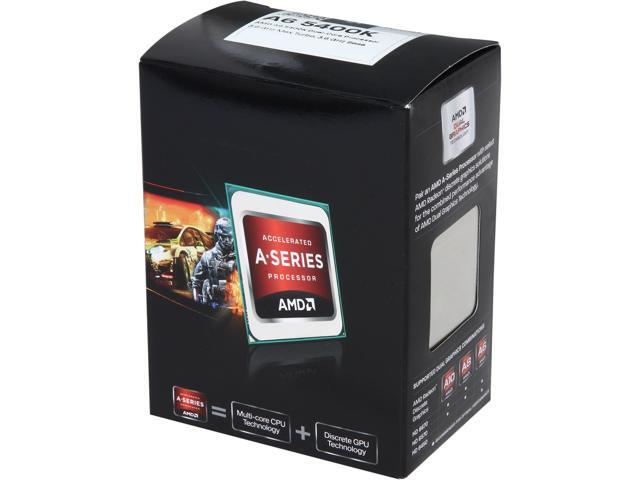

AMD A6-5400K Trinity 3.6GHz (3.8GHz Turbo) Socket FM2 65W Dual-Core Desktop APU (CPU + GPU) with DirectX 11 Graphic AMD Radeon HD 7540D AD540KOKHJBOX

  • 32 nm Trinity 65W
  • 1MB L2 Cache
  • AMD Radeon HD 7540D
  • Pin It
  • Email this page
ICON Loading...


Do more in less time with energy-efficient 2nd Gen AMD A6 Processor. The AMD A6-5400K APU combines a dual-core CPU and a discrete-level GPU (AMD Radeon HD 7540D) on a single power-efficient chip enabling vivid HD entertainment, blazing-fast Internet browsing and accelerated media applications. With even more compute performance, graphics are crisp, bright and smooth, and content is easy to share.

  • newegg AMD Radeon Dual Graphics capability The AMD A6-5400K APU combines two powerful AMD Radeon graphics processors to dramatically boost graphics and gaming performance.
  • newegg All-New HD Media Accelerator, AMD App & Internet Acceleration The AMD A6-5400K APU includes AMD’s all new architecture that makes video rich, clear and more stable, enables uninterrupted video streaming and accelerates conversion of video files for sharing on other devices. With the power of more graphics cores and AMD App Acceleration, everyday applications run more quickly and smoothly. And you can also get your browsing done quickly with Web sites that load fast with AMD Internet Acceleration.
  • newegg AMD Eyefinity Technology Immerse yourself in panoramic gaming and entertainment across up to four monitors with AMD Eyefinity Technology.
  • newegg AMD Performance Advantage The AMD A6-5400K APU enables your desktop PC to deliver a faster, more powerful PC experience than a comparable notebook through higher frequencies and more compute power.
  • newegg AMD Start Now Technology Supporting BIOS optimized solution for quick resume allows users to wake up system from sleep mode in under 2 seconds, from boot time in as few as 14 seconds.
  • newegg AMD Turbo Core 3.0 Technology The AMD A6-5400K APU automatically scales performance on demand to provide extra performance when you need it most.

Learn more about A6-5400K

Model

Brand
AMD
Series
A-Series APU
Model
AD540KOKHJBOX

CPU Socket Type

CPU Socket Type
Socket FM2

Tech Spec

Core
Trinity
Multi-Core
Dual-Core
Name
A6-5400K
Operating Frequency
3.6GHz (3.8GHz Turbo)
L2 Cache
1MB
Manufacturing Tech
32 nm
64 bit Support
Yes
Virtualization Technology Support
Yes
Integrated Graphics
AMD Radeon HD 7540D
Graphics Base Frequency
760MHz
Thermal Design Power
65W
Cooling Device
Heatsink and Fan included

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of A6-5400K

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 5/22/2013 8:01:23 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreate HTPC CPU

Pros: This is awesome for blu-ray rips. I have everything backed up to a nas and play videos from there. I have upgraded from an e-350 and night and day. I contemplated an i3 but I think this is a bit quicker for what I was looking for.

Cons: Uses a bit more power than my old set up but oh well it is quite a bit faster.

Did you find this review helpful? Yes No

  • Roboyt0
  • 5/19/2013 6:26:25 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSufficient

Pros: Price.
Low Power.
Eyefinity capable for $65.
Surprising performance paired with a cheap SSD.
Cool as a cucumber with an AC Freezer 7 Pro Rev. 2
Combine this with a nice FM2 board and you get all the goodies.

Cons: None

Other Thoughts: I can not comment on EyeFinity or graphics performance as they weren't my intent when purchasing. I needed an efficient CPU for a BTC miner and this fit the bill.

My other systems at home are a 3570k and 3770k, both watercooled @ 4.5 GHz.

This processor surprised me with it's peppiness. Internet is snappy, download speeds didn't suffer, WinRAR extraction is much better than expected.

Using with an ADATA SX900 60GB.

Did you find this review helpful? Yes No

  • J
  • 5/2/2013 9:23:37 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsGreat APU - Not so great fan

Pros: Good performance
Low price
Unlocked

Cons: Stock fan is loud at higher RPMs

Other Thoughts: I currently use my PC mostly for web browsing, but this APU is much faster than the Athlon X2 BE-2350 that it replaced. I was intrigued that in the description it stated that these APUs can accelerate web browsing. They weren't kidding. Graphic and Flash-rich websites now load just as quick as text based pages.

The only con so far is that the stock cooling fan is very noisy at higher RPMs. Luckily the BIOS on my motherboard has a 'Quiet' setting that is taming the noise of the stock fan until I can get an aftermarket fan/heatsink. Regardless, I'm still giving this a 5 egg rating.

Did you find this review helpful? Yes No

  • N/A
  • 5/2/2013 9:31:22 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsDecodes 1080p for PMS without breaking a sweat

Pros: Cost - Delivers more than enough performance for my unRaid server running Plex Media Server. 1080p is no problem.

Cons: Heat sink and Fan - The included heat sink and fan cut the mustard, but only for average loads and not for overclocking. Spend a little more money and get an aftermarket HSF and never worry about heat

Other Thoughts: Turns out transcoding 1080p video while also transcoding 7.1 DTS audio is too much for this CPU. My LG smart TV requires DTS-to-AC3 transcoding because it can't process DTS audio. No big deal really. I have very little content with DTS audio.

2 out of 2 people found this review helpful. Did you? Yes No

  • Streetguru
  • 5/2/2013 12:32:56 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsBest value right now

Pros: Plays all the games I want at 1600x900 mostly on medium but it can handle high pretty well bringing most games to 30fps. it overclocks great with my board I just flipped the OC switch and got 5 more fps.

Just one benchmark but it runs a lot of games easily even metro 2033
Trine 2 1600x900
Very Low 60fps
Medium 45 fps
Very High 30 fps
No AA

Its a must have chip for budget builds and HTPCs

Cons: Can't give it 10 eggs

Other Thoughts: MSI FM2-A75MA-E35 FM2 AMD A75 Is my recommended board for the FM2 socket

3 out of 3 people found this review helpful. Did you? Yes No

  • N/A
  • 4/29/2013 5:42:54 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsPoor AMD Warranty Service

Pros: Good processor for the $
Runs cool
Low power consumption

Cons: AMD service poor
Not sure of Linux video driver status

Other Thoughts: I liked the first home file server I built with this and an MSI mainboard, I decided to do a second. CPU sat in box past NewEgg warranty period. When system built, graphics were screwy. Swapped into known good system; no joy. OK - stuff happens; send for an RMA.

3 weeks later, I not only have no RMA from AMD, they send me an email asking me to rate the service on my closed case. And we are back to fill-in-the form h***.

0 out of 2 people found this review helpful. Did you? Yes No

  • Joe
  • 4/26/2013 10:23:26 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSolid

Pros: I have read about AMD's APU line and heard great things, so when asked to build a cheap but reliable media server plus Minecraft server, this guy popped up everywhere and did not disappoint. I am running it at stock speed with OEM cooler which I plan to upgrade soon but it handles all of its tasks smoother than I thought it would. It is constantly streaming at least 1 feed at all times, my friends are able to save data on a shared drive on the system, it also hosts a timed incremental backup of my 3 other systems as well as running a mine craft server serving close to 20 people (so far max at one time was 11) without a single hiccup or slowdown.

Cons: As with all AMDs, it does run a bit hot. I'll admit I was in a bit of a rush to assemble this system and may not have applied the thermal paste correctly the first time, during a Windows 7 install, it froze and required a hard reset, found out it had overheated. Tore the system apart to make sure I hadn't made any mistakes and realized thermal paste was oozing out of the sides. I had applied to much which was causing poor heat transfer to the heatsink. I reapplied a very thin layer and reseated, now runs at 43 Celcius normally, 47-49 celcius when fully taxed. I plan on purchasing an aftermarket heatsink and fan at a later time.

Other Thoughts: I spent $212 on a combo deal with case, Mobo, CPU, and 8GB ram, bought a mechanical 500GB for $54 and added an existing 1TB mechanical. Also added a Silver rated PWS at $34(was on sale) making my total server build $300. This thing would make a great low end gaming build for a budget gamer, or add about $100-$150 in discrete graphics card and move it into mid level. Would recommend for either application.

4 out of 4 people found this review helpful. Did you? Yes No

  • N/A
  • 4/26/2013 5:25:50 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsKing of the Hill for HTPC

Pros: Plays Blu-rays perfectly with LAV filters (need to enable DXVA2 in the video decoder configuration). No video card required! At idle, system draws 29 watts at the wall (MSI mITX mobd), playing video, 33 watts (80+ gold power spply). CPU runs about 25-35% playing blu-ray. Way cheaper than the Intel offering.

Cons: Newegg won't price match brick-and-mortar stores.

Did you find this review helpful? Yes No

  • Googler
  • 4/21/2013 12:15:31 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat Cpu!

Pros: I got this cpu because I had my 6450 Radeon graphics card just laying in my room. I was able to use the dual graphics function just fine

Cons: Like always, the stock cooler is garbage, just get a cheap aftermarket cooler and it will do just fine. With the stock fan it was running at 52 C idle. I put the after market "Rosewill RCX-ZAIO-92 92mm Fan" and it dropped the temps down to 41 C idle.

Other Thoughts: I guess AM3 fans are compatible with FM2 socket cpus, just found that out LOL

0 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 4/20/2013 10:09:48 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsgreat apu

Pros: -great value
-driver was easy to install
-fast for the price

Cons: -none that I can think of

Other Thoughts: great value. I am using this for my grandma's computer and i performs flawlessly

Did you find this review helpful? Yes No

ICON Loading...

Protect Your Investment!

    • (more options) read warranty details
Are you an E-Blast Insider? Subscribe Newegg e-Blast

Buzz

Amazing price for a gaming chip.

5 out of 5 eggs
I was a bit skeptical at first about the GPU/APU idea, but this chip was won me over.

Playing Maxpayne 3 on Steam ...
— GotRedonYou 12/10/2012

Excellent Processor!

5 out of 5 eggs
I am very impressed with this APU. I purchased it to build a very cheap gaming system for my living room (Steam based). ...
— meekin30643 11/3/2012
