Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

  • 128GB
  • Mini-SATA (mSATA)
  • Pin It
  • Email this page
ICON Loading...



The Plextor M5M is a high-performance mSATA 6 Gb/s SSD specifically engineered to give ultra book, tablet PC, and other JEDEC MO-300 form factor users the speed and low power consumption benefits of the newest generation SSD technology.

  • - Latest server-grade Marvell® 88SS9187 controller ensures fast and reliable operation for all applications.
  • - Sequential mode performance of up to 540MB/s read and up to 430MB/s write, boosts the responsiveness of ultrathin laptop and tablet PCs.
  • - Random read speeds of up to 79K IOPS and write speeds up to 77K IOPS at 4K file size, give maximum real-world performance benefits.

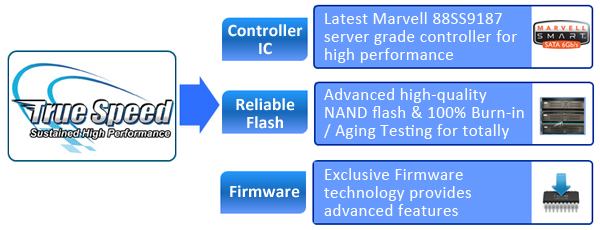

  • - Advanced True Speed technology provides long-term sustained performance for all data types and prevents speed drop.

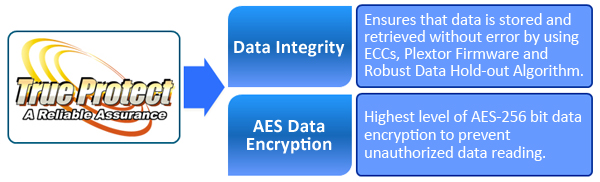

Plextor SSD has a unique True Protect protection system to protect the integrity of your data. To confirm that each piece of data is correctly stored with one hundred percent accuracy the newest 128-bit error correction code is used. For data confidentiality, the drive uses hardware in the US Government AES-validated Marvell controller to provide secure 256-bit full-drive encryption.

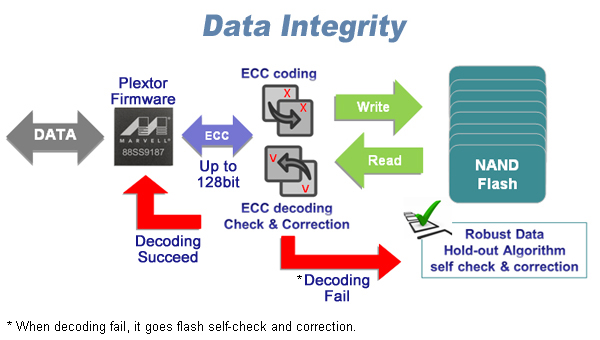

DATA INTEGRITY

The combination of the latest Marvell® 88SS9187 6Gb/s SATA controller’s powerful 128 Random Bit/2K BCH ECC (Error-Correction Codes), and the exclusive Plextor firmware based Robust Data Hold-out Algorithm gives the M5M unequaled data integrity.

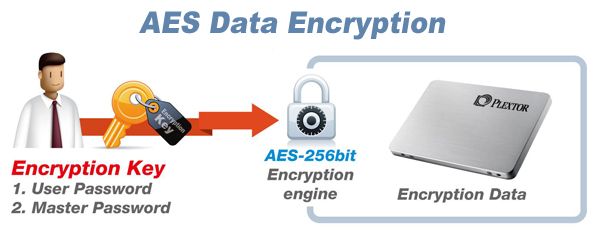

ASE DATA ENCRYPTION

AES, the U.S. government standard encryption technology, is divided into three levels 128, 192, 256. The Plextor M5M uses the highest level of encryption-256 bits. This level of SSD encryption is highly secure compared to BIOS or software based encryption and offers strong protection if the computer is stolen.

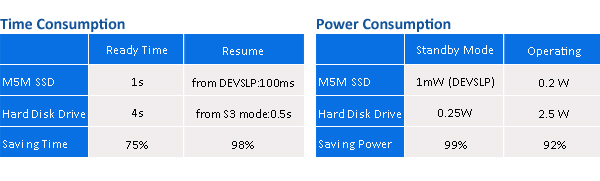

  • Supports the SATA Device Sleep standard incorporating the new DEVSLP state allowing the SSD to communicate in sleep mode.
  • With the DEVSLP mode, the M5M can reduce the power consumption to only 1 mW, and resumes from DEVSLP mode only in 100ms.
  • In order to meet the needs of consumers, the M5M delivers an effective operating and long battery life of the mobile device.

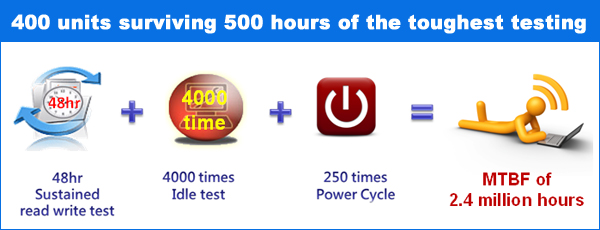

48hr Sustained Read and Write Test
Two days continuous 4K file read/write test, zero error pass requirement.
4000 Times Idle Test–Sleep and Hibernation Test
After 24 hrs. read & write SSD enters sleep (S3) mode and is woken after 5 minutes, repeated for hibernation (S4) mode, zero error pass requirement.
250 Times Power Cycle–Cold and Warm Boot Tests
Continuous cold boot and warm boot cycles 250 times, zero error pass requirement.

With its ultra mini size, light weight and low power consumption, the M5M is especially suitable for ultra-portable on-the-go computing device.

COMPACT SIZE

  • - No outer case.
  • - Designed for the limited space in ultra-portable devices.
  • - Highly compact JEDEC MO-300 form factor incorporating an mSATA 6GB/s connection.
  • - Light weight (9g max.) and mini size (50.8 x 29.8 x 3.6 mm), only an eighth of the size of the standard 2.5 inch SSD drive.






The Plextor M5M is a high-performance mSATA 6 Gb/s SSD specifically engineered to give ultra book, tablet PC, and other JEDEC MO-300 form factor users the speed and low power consumption benefits of the newest generation SSD technology.

  • - Latest server-grade Marvell® 88SS9187 controller ensures fast and reliable operation for all applications.
  • - Sequential mode performance of up to 540MB/s read and up to 160MB/s write, boosts the responsiveness of ultrathin laptop and tablet PCs.
  • - Random read speeds of up to 73K IOPS and write speeds up to 42K IOPS at 4K file size, give maximum real-world performance benefits.
  • - Advanced True Speed technology provides long-term sustained performance for all data types and prevents speed drop.


Plextor SSD has a unique True Protect protection system to protect the integrity of your data. To confirm that each piece of data is correctly stored with one hundred percent accuracy the newest 128-bit error correction code is used. For data confidentiality, the drive uses hardware in the US Government AES-validated Marvell controller to provide secure 256-bit full-drive encryption.


DATA INTEGRITY

The combination of the latest Marvell® 88SS9187 6Gb/s SATA controller’s powerful 128 Random Bit/2K BCH ECC (Error-Correction Codes), and the exclusive Plextor firmware based Robust Data Hold-out Algorithm gives the M5M unequaled data integrity.


ASE DATA ENCRYPTION

AES, the U.S. government standard encryption technology, is divided into three levels 128, 192, 256. The Plextor M5M uses the highest level of encryption - 256 bits. This level of SSD encryption is highly secure compared to BIOS or software based encryption and offers strong protection if the computer is stolen.


  • Supports the SATA Device Sleep standard incorporating the new DEVSLP state allowing the SSD to communicate in sleep mode.
  • With the DEVSLP mode, the M5M can reduce the power consumption to only 1 mW, and resumes from DEVSLP mode only in 100ms.
  • In order to meet the needs of consumers, the M5M delivers an effective operating and long battery life of the mobile device.



48hr Sustained Read and Write Test
Two days continuous 4K file read/write test, zero error pass requirement.
4000 Times Idle Test–Sleep and Hibernation Test
After 24 hrs. read & write SSD enters sleep (S3) mode and is woken after 5 minutes, repeated for hibernation (S4) mode, zero error pass requirement.
250 Times Power Cycle–Cold and Warm Boot Tests
Continuous cold boot and warm boot cycles 250 times, zero error pass requirement.

With its ultra mini size, light weight and low power consumption, the M5M is especially suitable for ultra-portable on-the-go computing device.

COMPACT SIZE

  • - No outer case.
  • - Designed for the limited space in ultra-portable devices.
  • - Highly compact JEDEC MO-300 form factor incorporating an mSATA 6GB/s connection.
  • - Light weight (9g max.) and mini size (50.8 x 29.8 x 3.6 mm), only an eighth of the size of the standard 2.5 inch SSD drive.



The Plextor M5M is a high-performance mSATA 6 Gb/s SSD specifically engineered to give ultra book, tablet PC, and other JEDEC MO-300 form factor users the speed and low power consumption benefits of the newest generation SSD technology.

  • - Latest server-grade Marvell® 88SS9187 controller ensures fast and reliable operation for all applications.
  • - Sequential mode performance of up to 540MB/s read and up to 320MB/s write, boosts the responsiveness of ultra-thin laptop and tablet PCs.
  • - Random read speeds of up to 80K IOPS and write speeds up to 76K IOPS at 4K file size, give maximum real-world performance benefits.
  • - Advanced True Speed technology provides long-term sustained performance for all data types and prevents speed drop.


Plextor SSD has a unique True Protect protection system to protect the integrity of your data. To confirm that each piece of data is correctly stored with one hundred percent accuracy the newest 128-bit error correction code is used. For data confidentiality, the drive uses hardware in the US Government AES-validated Marvell controller to provide secure 256-bit full-drive encryption.


DATA INTEGRITY

The combination of the latest Marvell® 88SS9187 6Gb/s SATA controller’s powerful 128 Random Bit/2K BCH ECC (Error-Correction Codes), and the exclusive Plextor firmware based Robust Data Hold-out Algorithm gives the M5M unequaled data integrity.


ASE DATA ENCRYPTION

AES, the U.S. government standard encryption technology, is divided into three levels 128, 192, 256. The Plextor M5M uses the highest level of encryption-256 bits. This level of SSD encryption is highly secure compared to BIOS or software based encryption and offers strong protection if the computer is stolen.


  • Supports the SATA Device Sleep standard incorporating the new DEVSLP state allowing the SSD to communicate in sleep mode.
  • With the DEVSLP mode, the M5M can reduce the power consumption to only 1 mW, and resumes from DEVSLP mode only in 100ms.
  • In order to meet the needs of consumers, the M5M delivers an effective operating and long battery life of the mobile device.



48hr Sustained Read and Write Test
Two days continuous 4K file read/write test, zero error pass requirement.
4000 Times Idle Test–Sleep and Hibernation Test
After 24 hrs read & write SSD enters sleep (S3) mode and is woken after 5 minutes, repeated for hibernation (S4) mode, zero error pass requirement.
250 Times Power Cycle–Cold and Warm Boot Tests
Continuous cold boot and warm boot cycles 250 times, zero error pass requirement.

With its ultra mini size, light weight and low power consumption, the M5M is especially suitable for ultra-portable on-the-go computing device..

COMPACT SIZE

  • - No outer case.
  • - Designed for the limited space in ultra-portable devices.
  • - Highly compact JEDEC MO-300 form factor incorporating an mSATA 6GB/s connection.
  • - Light weight (9g max.) and mini size (50.8 x 29.8 x 3.6 mm), only an eighth of the size of the standard 2.5 inch SSD drive.




Learn more about the Plextor PX-128M5M

General

Brand
Plextor
Series
M5M
Model
PX-128M5M
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer

Physical

Capacity
128GB
Memory Components
MLC
Interface
Mini-SATA (mSATA)
Controller
Marvell
Cache
256MB
Height
3.6mm
Width
29.8mm
Depth
50.8mm
Weight
9g

Performance

Max Sequential Read
up to 540 MB/s
Max Sequential Write
up to 320 MB/s
4KB Random Read
Up to 80,000 IOPS
4KB Random Write
Up to 76,000 IOPS
MTBF
2,400,000 hours

Features

Features
High performance
M5M mSATA 6Gb/s SSD delivers leading performance in JEDEC MO-300 form factor
True Speed sustained high-performance technology delivers real world benefits and prevents SSD speed drop

Design for Ultrabook device
Without outer case, only an eighth of the standard 2.5" SSD drive.
Light weight and mini size, especially suitable for limited space in ultraportable
Low power consumption, lengthen the battery life of ultraportable device

Support DEVSLP power mode
Energy efficiency, consume less power and provide extended battery life
Reduce the power consumption to 1mW, down from the current 50mW in the DEVSLP state.

Reliability
Rigorous multi-stage testing in Plextor's state-of-the-art laboratory
Resulting in an impressive 2.4 million hours MTBF

Latest Marvell 88SS9187 server grade controller for high performance

Environmental

Power Consumption (Idle)
0.2W
Power Consumption (Active)
1mW

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Plextor PX-128M5M

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go

Showing 30 of 30 reviews - Clear Filters

  • Michael W.
  • 7/23/2014 10:06:28 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsLightning fast, saves laptop battery vs hdd

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Fast.
Reliable.
0.2W = Laptop battery last much longer

Cons: None

Did you find this review helpful? Yes No

  • Travis K.
  • 7/19/2014 2:51:48 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSo far so good!

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: It was a great price when I got it. Easy installation, simple packaging. I haven't had it for long, but I purchased the 1 year extended replacement plan, so I'm sure I will be ok.

Cons: Didn't come with a screw, but that's not an egg subtracting issue. I just robbed peter to pay paul, taking a screw out of my work laptop lol. I can replace that from extra parts at work, since I work in IT for a hospital.

Other Thoughts: Could make me breakfast.

Did you find this review helpful? Yes No

  • Michael K.
  • 7/1/2014 2:53:46 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsPerfect for my Vostro 3560

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Fast! I'm using Windows 7 Pro and it takes about 15 seconds for the computer to boot up to the log on screen. All of my programs, such as Word and Outlook load extremely fast. Photoshop loads in 2 seconds!

Cons: Nothing that I came blame on Newegg or Plextor. The only issue is that I had to dismantle my notebook to install the device, so that's an issue with Dell.

Other Thoughts: I use my notebook for business, so I have a mechanical drive to store emails, documents, pictures and other data. If you're concerned about writing cycles, no worries. There are things you can do to limit them. I moved the SoftwareDistribution folder, which is where Windows 7 updates are saved, to the mechanical drive and redirected Windows to that folder (search Google). I also moved the cache for the web browser and data files for Outlook to the mechanical drive.

Did you find this review helpful? Yes No

  • nuvong s.
  • 6/4/2014 10:30:39 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

3 out of 5 eggsi got the lucky straw...

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: it's fast, yes it is.

Cons: works great when it works!

Other Thoughts: died after a few months.

Did you find this review helpful? Yes No

  • Dennis M.
  • 5/8/2014 8:50:06 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsLove It

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Cool factor, it's so tiny and plugs into the M-sata spot on my mobo. It's still working and it's fast, 20 secs to useable desktop.

Cons: Cost per megabyte

Other Thoughts: If your motherboard has an m-sata slot these are so cool.

Did you find this review helpful? Yes No

  • Kenneth H.
  • 4/14/2014 8:15:51 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Rated as a 7.8 in windows 7 64 bit. Cloned my other 128Gb SSD, also a Plextor. Set as C: drive.

Cons: None so far except it is already full.

Other Thoughts: Like Plextor drive ratings and performance. This is my second SSD from Plextor.

Did you find this review helpful? Yes No

  • Paul J.
  • 2/25/2014 5:47:52 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsPlextor M5M mSATA

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: very small, great performance in my NUC. I have no complaints.

Cons: could be a bit cheaper

1 out of 1 people found this review helpful. Did you? Yes No

  • Luis G.
  • 11/20/2013 11:47:31 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExcelent

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: I install windows 7 home 64 and it finish installing pretty quick and the laptop over all runs smoothly.

Cons: I really did not notice any cons.

Did you find this review helpful? Yes No

  • brian d.
  • 11/9/2013 5:58:55 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsPhysical Size

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Fast, Reliable
I replaced the 80GB Intel mSATA that came installed in my HP Laptop with this Plextor, same size, no fit problems.
3 months installed, I've had no issues. Full 64bit Windows 7 and most of my apps with 40 GB of free space.

Cons: None to speak of

Did you find this review helpful? Yes No

  • Anonymous
  • 10/19/2013 7:15:40 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week

3 out of 5 eggsmine show as SDHC card

This review is from: Plextor M5M PX-128M5M 128GB Mini-SATA (mSATA) MLC Internal Solid State Drive (SSD)

Pros: Small and a decent price

Cons: Have not gotten it to work properly yet

Other Thoughts: I was excited that my new laptop had a slot for this. Hoever, it shows up as a SDHC card in my computer under windows 8.

I had made an image of my hard drive and restored it to this msata and it didnt boot. Im not sure what im doing wrong.

has any one else had this issue. I do this stuff all the time and I am stumped.

0 out of 5 people found this review helpful. Did you? Yes No

ICON Loading...
Are you an E-Blast Insider? Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.

Home
Home >
Computers & Tablets >
All Laptop Accessories >
Internal SSDs >
Plextor >
Item#: 9SIA0AJ1T66361
Shop by Region: United States | Canada | China
VeriSign Click for the BBB Business Review of this Computers - Supplies & Parts in Whittier CAThis site protected by Trustwave's Trusted Commerce program Inc500
Policy & Agreement | Privacy Policy  © 2000-2014 Newegg Inc.  All rights reserved.
If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site. nassau
