Item#: N82E16820249033

Plextor M5P Xtreme Series PX-256M5Pro 2.5" 256GB SATA III MLC Internal Solid State Drive (SSD)

  • 2.5"
  • 256GB
  • SATA III
  • Pin It
  • Email this page
ICON Loading...



Overview
  • Random read 100,000 IOPS
  • TrueSpeed Technology for sustained high performance
  • 5 years warranty


The M5Pro Xtreme Series SSD continues to delivers the highest quality storage performance in the industry. Continuing with the legacy and award-winning performance of its predecessors, the M5Pro Xtreme SSDs are engineered to optimize consistent high performance, extremely reliable, and provide the highest data protection.

Featuring the latest Monet 88SS9187 enterprise-grade controller, the M5Pro Xtreme Series SSD delivers continuous high performance. With random read/write speed up to 100,000/86,000 IOPS and sequential read/write speeds up to 540/460 MB/s, handling heavy computing applications or RAID 0 array set up is a breeze. Even under heavy loads the multi-core controller and exclusive Plextor firmware make the M5Pro Xtreme Series extremely fast, reliable and stable.

Other Key Features
  • Enterprise-grade 88SS9187 Controller
  • Supports full AES-256 encryption
  • TrueProtect Technology for highest data protection
  • Windows 8 compatible
  • NTI back-up software included
  • PlexTool–the exclusive application for monitoring the hard drive status and upgrading firmware


Performance
MULTI-TASKING AND ULTRA-HIGH PERFORMANCE
The combination of the latest Marvell 88SS9187 controller and the best quality Japanese Toshiba Toggle NAND flash creates M5Pro Xtreme with enterprise-class performance. It has the ability to consistently deliver random read/write speeds up to 100,000/86,000 IOPS and sequential read/write speeds up to 540/460 MB/s. This makes the M5Pro Xtreme suitable for use in a heavy workstation, server role, or Raid 0 configuration.
True Speed–sustained high performance
M5Pro Xtreme avoids performance deterioration seen in some SSDs with True Speed technology, keeping your Windows system performance like new!

Data-Safe
ENTERPRISE-GRADE DOUBLE-DATA PROTECTION

True Protect ensures that data is stored and retrieved without error by using ECCs, Plextor Firmware and Robust Data Hold-out Algorithm.

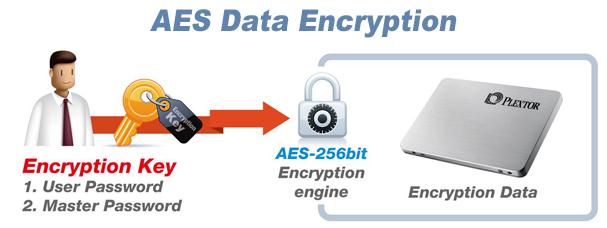

AES is the U.S. government standard encryption technology, it is divided into three levels 128, 192, 256 The Plextor M5Pro Xtreme uses the highest level of encryption-256 bits. This level of SSD encryption is highly secure compared to BIOS or software based encryption and offers strong protection if the computer is stolen.

Reliability

PROFFESSIONAL QUALITY AND RELIABILITY

With the M5Pro, Plextor has focused on developing and supplying one of the most stable drives on the market.

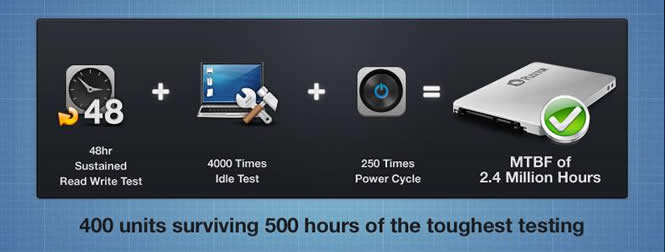

Preproduction tested for professional use in Plextor’s state-of-the-art testing facilities. Rigorous operational and environmental tests resulting in drive with an impressive MTBF of 2.4 million hours.

- 48hr Sustained Read and Write Test
Two days continuous 4K file read/write test, zero error pass requirement.
- 4000 Times Idle Test–Sleep and Hibernation Test
After 24 hrs read & write SSD enters sleep (S3) mode and is woken after 5 minutes, repeated for hibernation (S4) mode, zero error pass requirement.
- 250 Times Power Cycle–Cold and Warm Boot Tests
Continuous cold boot and warm boot cycles 250 times, zero error pass requirement.

5-Year Warranty
FULL FIVE-YEAR WARRANTY

The Plextor M5Pro’s high build quality is backed by an iron-clad 5-year warranty from Plextor for total peace of mind. An extensive technical support system will provide support throughout the drive’s long life and make the M5Pro a performance upgrade that you can have total confidence in.


*Plextor unveils the M5 Pro Xtreme solid-state drive, CNET, Dong Ngo:





Learn more about the Plextor PX-256M5Pro

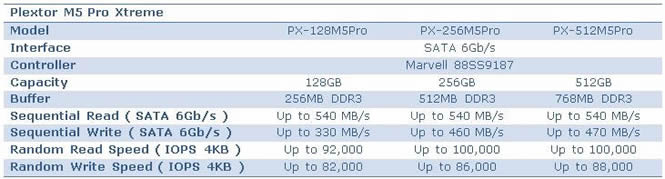

General

Brand
Plextor
Series
M5P Xtreme Series
Model
PX-256M5Pro
Device Type
Internal Solid State Drive (SSD)
Used For
Consumer

Physical

Form Factor
2.5"
Capacity
256GB
Memory Components
MLC
Interface
SATA III
Connector
Power Connector: 15-pin SATA connector for DC 5V input
Data Connector: 7-pin SATA connector
Controller
Marvell
Cache
512MB
Width
69.85mm
Depth
100mm
Height
7mm
Weight
70g

Performance

Max Sequential Read
up to 540 MB/s
Max Sequential Write
up to 460 MB/s
4KB Random Read
Up to 100,000 IOPS
4KB Random Write
Up to 86,000 IOPS
MTBF
2,400,000 hours

Features

Features
Latest server-grade Marvell 88SS9187 controller guarantees fast and reliable operation under high loads.

True Speed technology gives sustained long-term performance and prevents SSD speed drop, automatically returning performance to like-new speeds

Automatically uses the new 128-bit error-correction codes built into the latest Marvell controller to ensure the integrity of data.
Unique Robust Data Hold-out Algorithm in Plextor's exclusive firmware provides additional long-term protection for your data.

Supports full 256 bit Advanced Encryption Standard (AES) drive encryption to protect confidential data.

Carefully selected high-quality components, including the latestgeneration controller and exclusive Plextor firmware.

Extremely reliable with a meantime between failures (MBTF) forecast as an impressive 2.4 million hours.

Passes the strict enterprise-grade Zero Error standard of 400 units surviving 500 hours of the toughest continuous testing without a single error or failure.

Every single drive rigorously burn-in tested at elevated temperatures and subjected to accelerated usage simulations for complete drive and flash stability.

Operating System Supported: Microsoft Windows Family / Linux / Mac OS

Agency Approval: UL, CE, BSMI, WHQL, RoHS, FCC, KCC, VCCI

Command Set Support: TRIM, S.M.A.R.T., NCQ, ATA/ATAPI-8

Firmwave Upgrade Supported

Environmental

Power Consumption (Active)
0.25W (MobileMark)
Operating Temperature
0°C ~ +70°C
Max Shock Resistance
1500G
Max Vibration Resistance
7 ~ 800Hz, 2.17Grms (Operation)

Package Content

Package Content
PX-256M5Pro
Quick installation guide
Users manual and warranty statement
3.5" Bracket

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Plextor PX-256M5Pro

Do you own this product? Write a Review

Filter Results

Go
  • Hatch
  • 5/5/2013 3:23:20 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsFAST! Buy one and enjoy.

Pros: It's an SSD
No moving parts
Built well.

FAST!!! Really fast!

Cons: No cons

Other Thoughts: Making the move from a mechanical drive to an SSD is a huge jump in performance. Well worth the purchase if you are in the market.

Did you find this review helpful? Yes No

  • Dave
  • 5/3/2013 8:05:06 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsPOOR 140 MB/s instead of 450 MB/s advertised

Pros: fancy marketing words, none in actuality

Cons: I bought a few plextor SSD over 4 months. 128 GB and 3 256 GB, all the M5 Pro series.

I did not have time to benchmark them when I bought them, but I noticed they did not perform as you would expect for the "one and only" SSD to break the 100,000 IOPS barrier. So, I went online and downloaded their latest firmware (currently 1.03). There have been rumors on the net about a 1.03 firmware with issues but I would have not imagined that a big name company to deliver such a poor product in a completely misleading marketing manner.
I tried to upgrade these SSD by individually connecting them on 2 different computers, both ASUS motherboards with the latest BIOS, sabertooth and P8Z77. On both computers, initially in IDE then in AHCI modes, the update of the firmware would hang and not finalize properly as indicated in their (Plextor) update document.

All in all, all plextor M5Pro SSD deliver a sequential write speed of about 140 MB/s (advertised 450 MB/s). My Western Digital enterprise 2 TB has a close sequential write speed suggesting something is fishy in Denmark.

Moreover, I contacted their support and they told me tier 2 tech support will get back to me once I sent an email with benchmark images reported by a tool they've (Plextor) recommended and told me they've used: AS SSD.
No reply from their support so far.

Conclusion
Product: poor performance, not performing as advertised
Customer service: poor

I WOULD STAY AWAY FROM plextor unless you want to pay top dollar for a gold ring and get a fancy brass ring instead. And no magic powers with it!

Did you find this review helpful? Yes No

  • N/A
  • 5/2/2013 8:36:37 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

5 out of 5 eggsThis is an Update to an earlier review

Pros: Ok I wrote a previous review that ripped into Plextor because of their archaic way of updating the firmware on their SSDS through ISO files burned to a optical disk and then in turned booted to the SSD for the update. Needless to say it did not work on my Snow Leopard equipped Mac or my friends Mountain Lion equipped Mac Book. Apparently it wants to be done from an internal sata connection and not a USB external Anyways I don't think I need to elaborate on that more.

Plextor apparently reads reviews and took it to heart. They issued a a prepaid packing slip to RMA the drive. Then about an hour after getting that notice they went ahead and cross shipped me a New Drive with the latest Firmware flashed to it. This is something I did not expect them to do. I am quite happy about this. Unfortunately I had to go out of town for a week before the new drive arrived so I will have to pick it up from Fedex when I get back. I give Kudos to Plextor for taking the initiative after initially dropping the ball. Lets hope they update their update process to a downloadable disk image that you can boot off your desk top like most modern firmware and software updates. I hope to see this drive perform well now because its well rated and benchmarked.

Cons: no cons now

1 out of 1 people found this review helpful. Did you? Yes No

  • cindybigbucks
  • 5/1/2013 9:00:35 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsPerformance

Pros: My second RMA'd SSD drive arrived. Installed without any problems. My dual HD HP DV-7 Notebook has never been so quiet and fast with the combo of this SSD & 16GB HyperX CL9 Memory also bought from Newegg. Boots to Windows 8 in less than 20 seconds.

Cons: My first SSD had to be RMA'd. When I installed the first SSD it had 5 partitions on it. Strange but I thought that was normal for my HP DV7 notebook. NO not the case.... When I hooked up the second RMA'd SSD drive it had only one partition from start. The bad HD had 5 partitions. My conclusion if your brand new SSD has 5 partitions there is probably a problem with it. If a brand new SSD makes a bunch of partitions on its own it must have bad sectors or something.

Other Thoughts: This second SSD is just AWESOME!!!! Blazing fast and worth every penny spent. Go ahead and buy your protected first with Newegg's 30 day and Plextor gives a 5 year warranty. Don't worry the bad drives are replaced. My RMA only took 8 days total with Newegg. Newegg ROCKS!!!!

Did you find this review helpful? Yes No

  • N/A
  • 4/29/2013 11:12:57 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

1 out of 5 eggsTerrible customer support and Terrible way to do firmware updates

Pros: One of the fastest drives for heavy load work on the market.

Cons: Terrible way for updating software. Plextor seems to be stuck in the early part of this century as far as updating firmware goes. Instead of having downloadable installs that put diskimages on your desktop to upgrade from they still rely on ios disk install images. What this means is if you get one of their SSD's made prior to March of this year it has firmware 1.0.2 on it. The latest firmware is 1.0.3 which you have to download from their website and burn a ios image to optical disk DVD or CD. Once doing this you have to boot your computer and force it to boot off the optical drive to install the firmware. Now the problem here is not everyone has optical drives in their computers anymore. Can we say Ultrabook, Macbook Air, Mac Mini, the list goes on. But lets get on to the nitty gritty about this fiasco of an update. Its also latest OS specific so if the computer you are using to do it from does not have the latest version of the OS windows or Mac it does not want to load. Then there is the other fact that It also does not like being done from an external drive case on a USB port or Firewire port. All of this leads to Plextor telling you that you either have to go into your computer and switch it from sata to achi. Perhaps Windows guys do not mind doing this but I have never ever had to attempt to do this on a mac which involves going into terminal and changing command lines. The other suggestion was to install the drive in a the computer before trying to update the firmware. Now if for any reason it should not work you then have to remove the drive from the computer again. Sometimes easy and sometimes not so easy depending on the computer.

I speak of of this because this is the nightmare I have been gong through for the last week. I was going to buy this drive from Newegg but got it for $5 less from another vendor who managed to get it to me overnight even though they were out of state. I am guessing their supplier was in state. Regardless the only remedy Plextor has offered is for me to RMA the drive to them at my cost of getting it to them.
I do not feel a customer should have to go through this to get a update firmware on their drive.
All in all I am most likely going to RMA the drive to the retailer and get a different brand. Customers should not have to jump through this many hoops to get the drive to work

1 out of 1 people found this review helpful. Did you? Yes No

  • WolfViper
  • 4/25/2013 8:53:09 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsFailed out of Box

Pros: None so far

Cons: SSD would not partition or format. 10000's of format errors

Other Thoughts: Really hope Newegg comes through with a good drive this time. RMA Pending.

Did you find this review helpful? Yes No

  • cindybigbucks
  • 4/22/2013 8:13:43 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExtremely Fast

Pros: My Windows 8 HP DV7-7234nr laptop with 16gb of ram will boot up in less then 20 seconds with this drive...WOW!!!!

Superfast drive running 512mb cache you wont find a faster drive then this drive. Silent and cool. Cant even hear my laptop anymore when it is on.

Cons: The drive only lasted 2 weeks and wont turn on. At first the pc would not turn back on if turned off for like 1 minute. After a few days it wouldn't turn on at all. Hooked the ssd up to an external usb 3.0 port and put it up to my ear oooooch!!! it just clicks and clicks....Had to RMA my first drive. Thank g*o*d for Newegg's 30 day no hassle returns. This can happen with any HD thats why you must run them hard the first 30 days make sure you have a good one. Once they work for 30 days without problems they will last forever.

Other Thoughts: Will do another complete review when I get my new drive back and have it running for months.

Did you find this review helpful? Yes No

  • ARod
  • 4/14/2013 4:59:37 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsSweet

Pros: Actual speeds seems to match up with the published specs. They don't seem to with a lot of SSDs but on this drive you get what is stated. So far, the fastest SSD I've worked with, not that you can really tell by much when compared to the next fastest.

Cons: None, price and performance are good.

Other Thoughts: Cheaper than the highest end comparable popular Corsair & Samsung, quicker and with 16GB more. Very slim for an SSD, as slim as they get.

1 out of 1 people found this review helpful. Did you? Yes No

  • ManBehindWoodenDesk
  • 4/12/2013 6:27:57 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsIncredibly fast and reliable!

Pros: This drive is fast when it comes to both boot and application load times. Never experienced one blue screen like other drives I used and is wayyyyyy faster than my last SSD (180GB Intel 520). It was quickly recognized; Win7 installed in less than 10 minutes which surprised me. Comes with bracket for desktop installation. Drive uses the lastest Marvell controller (88SS9187) and uses 512MB (2x256MB) of DDR3 1333MHz for its buffer; Uses 19 nm Toshiba Toggle memory.

Cons: Missed the sale!

Other Thoughts: When I received this drive it worked out of the box flawlessly but with Firmware 1.02 (At the time of this review, the Firmware was recently upgraded to 1.03). All I had to do was download an ISO, burn it to a DVD, boot from DVD after POST and it found and wrote the firmware to the drive no problem. I didn't even need to unplug my other drives!

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 4/12/2013 6:10:12 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice little drive

Pros: It's a fast SSD, everything installed without a hitch and so far so good.

Cons: None

0 out of 1 people found this review helpful. Did you? Yes No

ICON Loading...
Are you an E-Blast Insider? Subscribe Newegg e-Blast

Buzz

Hurp

5 out of 5 eggs
Very fast, very stable.
Marvell Controller
DDR3 RAM for cache
7mm thickness for laptops and ultrabooks
fancy ...
— Zabus Norran 3/1/2013

Fast Drive

5 out of 5 eggs
This is a solid, speedy high-performance drive.
— JQuest 2/14/2013
