NEC X463UN 46" LED-Backlit Ultra-Narrow Professional-Grade Large-Format Display

  • Full 1080p HD
  • Professional-grade
  • Direct LED backlighting
  • Built-in expansion slot for OPS
  • Ultra-narrow bezel (5.5mm)

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
NEC

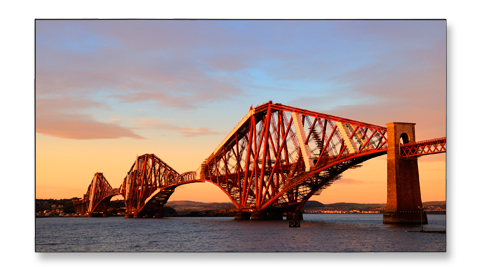

NEC 46" LED-Backlit Ultra-Narrow Professional-Grade Large-Screen Display
NEC

The 46" NEC X463UN takes your LCD video walls to new levels of impact. This professional-grade large-screen display is designed for the rigors of 24/7 operation while introducing new levels of impact to your facility. Advanced technologies of this model include direct LED backlighting for improved uniformity, full high-definition resolution (1920 x 1080) and a 5.7mm distance bezel width. Additionally, this display can be deployed in video walls up to 10 x 10 (100 displays). The X463UN also offers Intel's Open Pluggable Specification (OPS), which is the first industry-wide standardization in option slots that allows easier installation, use and maintenance of digital signage.

Transform your video walls with the immaculate high definition of the 46" NEC X463UN and 55" X551UN. Direct LED backlighting attributes to reduced power consumption and improved edge-to-edge brightness uniformity, while a mere 5.5mm (X551UN) separates bezel gaps between neighboring displays to ensure a smooth transition from screen-to-screen in video wall matrices. This display is ideal for digital signage, boardrooms, entrance lobbies and broadcast applications, and can be deployed in video wall applications up to 10 x 10 in size utilizing integrated TileMatrix™ technology.

NEC

Highlights

  • Professional-Grade LCD Panel and Components meet even the most formidable digital signage industry requirements, allowing for 24/7 run times
  • 1920 x 1080 Full HD Resolution allows for crisper, more lifelike imaging
  • Ground-Breaking Ultra-Narrow Bezel as Low as 5.5mm (Screen-to-Screen) creates a nearly seamless video wall
  • Optional Color Calibration Solution ensures color uniformity and fidelity across individual and multiple screens, creating a perfectly matched image in tiled environments
  • Optional Overframe Bezel Kit simplifies your installation and enhances the aesthetics of your video wall
  • ENERGY STAR® 5.1 is proudly offered, which meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the U.S. Department of Energy, helping you save money and reduce greenhouse gas emissions
NECNEC

Technologies

NEC
  • LED Direct Backlighting Source allows even distribution of light across the panel, resulting in improved uniformity from bezel-to-bezel
  • TileMatrix Technology enables video walls (up to 100 displays in a 10 x 10 matrix)
  • Digital Loop Through includes DVI-D (with HDCP) and DisplayPort
  • Simple Network Management Protocol standards are met for controlling the display through LAN
  • Built-In Expansion Slot allows for seamless integration of NEC-branded option cards as well as Intel's Open Pluggable Specification (OPS)-certified cards
  • Ethernet Control and Communication provides the highest level of remote display management and includes such features as automatic email notification for diagnostic purposes
  • Carbon Footprint Meter informs and motivates responsible use of the display by calculating and tracking carbon savings
  • Diverse Input Connectors allow for maximum compatibility and flexibility during product implementation
NEC
  • 1. LAN Port
  • 2. IR In/Out
  • 3. RS-232 In/Out
  • 4. DisplayPort In/Out
  • 5. DVI-D In/Out
  • 6. VGA D-Sub In
  • 7. HDMI In
  • 8. 5 BNC In (RGBHV, DVD/HD or
    Composite Video)
  • 9. BNC Composite Video In/Out
  • 10. Audio Mini-Jack In/Out
  • 11. S-Video In
  • 12. RCA Audio In
  • 13. External Speaker Out

Learn more about the NEC Display Solutions X463UN

General

Brand
NEC Display Solutions
Model
X463UN
Cabinet Color
Black

Display

Screen Size
46"
Native Resolution
1920 x 1080
Brightness
500 cd/m2
Display Colors
16.7 Million Colors
Contrast Ratio (Typical)
3500:1
Viewing Angle
178°(H) / 178°(V)
Pixel Pitch
53mm
Response Time
8ms

Conveninence

Input Video Compatibility
PC/Mac Signal Compatibility

Connectivity

HDMI Port
1 In
DVI Port
2
Other Ports
Input Terminals
- Digital: DisplayPort, HDMI, DVI-D
- Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
- Audio: RCA Audio, Stereo Mini-Jack (2), HDMI Audio
- External Control: RS-232C, LAN, IR Remote, DDC/CI

Output Terminals
- Analog: BNC Composite
- Audio: Stereo Mini-Jack, External Speaker Jack (2)
- Digital: DisplayPort, DVI-D
- External Control: RS-232C, IR Remote

Power

Power Supply
100 - 240 VAC, 50/60Hz
Power Consumption
On: 120W
ECO Mode Standby: <0.5W

Dimensions

Dimensions without Stand
40.3" x 22.8" x 4.6"
Dimensions with Stand
40.3" x 29" x 13"

Weight

Weight without Stand
53.6 lbs.
Weight with Stand
84.7 lbs.

Features

Feature
LED direct backlighting source allows even distribution of light across the panel, resulting in improved uniformity from bezel-to-bezel

Professional-grade LCD panel and components meet even the most formidable digital signage industry requirements, allowing for 24/7 run times

1920 x 1080 full HD resolution allows for crisper, more lifelike imaging

Ground-breaking ultra-narrow bezel as low as 5.5mm (screen-to-screen) creates a nearly seamless video wall

TileMatrix technology enables video walls (up to 100 displays in a 10x10 matrix)

Digital loop through includes DVI-D (with HDCP) and DisplayPort

Simple Network Management Protocol standards are met for controlling the display through LAN

Built-in expansion slot allows for seamless integration of NEC-branded option cards as well as Intel's Open Pluggable Specification (OPS)-certified cards

Optional color calibration solution ensures color uniformity and fidelity across individual and multiple screens, creating a perfectly matched image in tiled environments

Ethernet Control and Communication provides the highest level of remote display management and includes such features as automatic email notification for diagnostic purposes

Carbon footprint meter informs and motivates responsible use of the display by calculating and tracking carbon savings

Diverse input connectors allow for maximum compatibility and flexibility during product implementation

Optional overframe bezel kit simplifies your installation and enhances the aesthetics of your video wall
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
