Item#: N82E16824002809

NEC Display MultiSync EA234WMi-BK Black 23” Widescreen IPS Panel, LED Backlight LCD Monitor 6ms 250cd/m2, DisplayPort, USB hub, Height Adjust, Pivot, Tilt & Swivel, Speakers, 3 Year Warranty

  • 1920 x 1080 6ms
  • 1,000:1
  • DisplayPort, DVI-D, HDMI, VGA 15-pin D-sub
  • Email this page
ICON Loading...

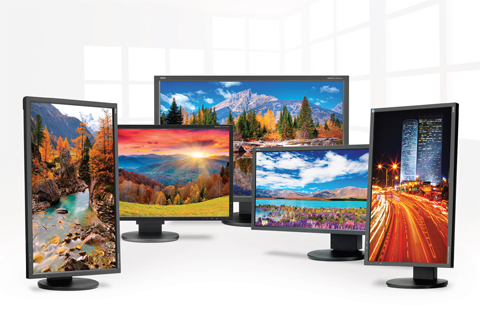

NEC MultiSync® EA Series
24-002-809

High-Performance , LED-Backlit LCD
Ideal Displays for Corporate Environments

24-002-809

Reimagine Your Desktop Computing Experience

With its 4th generation MultiSync EA Series, NEC has developed monitor solutions that push the boundaries of what you've come to know as business-grade screen performance. The 22" EA224WMi, 23" EA234WMi, 24" EA244WMi, 24" EA244UHD, 27" EA274WMi, 29" EA294WMi, and 30" EA304WMi deliver a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. Select models tout an IPS module, which boasts the best possible color accuracy and minimal viewing angle shift.

These models boast LED backlight technology, which not only reduces power by up to 52% compared to their predecessors, but leads to a 30% thinner and 25% lighter chassis. Other green features include ECO Mode™, a carbon footprint meter and an ambient light sensor, which automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both, conserving power up to 87% compared to typical energy consumption. In addition, the human sensor detects user activity in front of the monitor and reduces display power up to 95% with inactivity.

The ground breaking ControlSync™ feature allows users to control up to six select MultiSync EA Series units in a multi-monitor configuration. Upon establishing one unit as the master, you will be able to simultaneously control many performance attributes of the multi-monitor setup through the master monitor.

Highlights

24-002-809
  • LED backlight technology provides industry-leading, low-power consumption and less hazardous materials
  • Four-way ergonomic stand boasts pivot, tilt, swivel and height adjustment up to 5 inches (130mm) to maximize your viewing comfort
  • Touch-sensitive OSD® controls are integrated into the bezel, making display adjustments easier than ever
  • Integrated USB hub easily connects you to your peripherals
  • Comprehensive input panel, including DisplayPort, HDMI, DVI-D and 15-pin VGA (on select models), connects you to the latest peripherals and future-proofs your investment
  • Space-saving, multimedia speakers, which enhance your computing experience, are hidden to maintain the monitor's aesthetic appeal (headphone jack also included)
  • ControlSync enables multi-monitor setups of up to six monitors and controls up to 26 settings
  • Customize Setting allows both users and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment
  • Smart sensing technology includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting to the proper display brightness or entering Power Saving Mode
  • Carbon footprint meter helps track and calculate the reduction of green gas emissions, while the resettable cost meter (via On Screen Display) indicates electricity cost savings based on currency settings
  • NaViSet™ software offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.
  • EPEAT Gold compliance ensures the displays reduce hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment
  • ENERGY STAR® compliance reduces electrical costs and lowers total cost of ownership
EA Series EA Series EA Series

Specifications for MultiSync EA Series

  EA224WMi EA234WMi EA244WMi
Display
Panel Technology IPS IPS IPS
Backlight Type W-LED
Viewable Image Size 21.5" 23" 24"
Aspect Ratio 16:9 16:9 16:10
Native Resolution 1920 x 1080 1920 x 1080 1920 x 1200
Pixel Pitch 0.248mm 0.267mm 0.27mm
Pixels Per Inch 102 @ native resolution 96 @ native resolution 94 @ native resolution
Brightness (typical) 250cd/m²   350cd/m²
Contrast Ratio (typical) 1000:1 (25,000: dynamic)
Viewing Angle (typical) 178 degrees Vert., 178 degrees Hor. (89U / 89D / 89L / 89R) @ CR>10
Response Time (typical) 6ms (with overdrive) 6ms 5ms
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital) 31.5 - 83kHz 31.5 - 83kHz 31.5 - 77kHz
Vertical 56 - 75Hz   56 - 60Hz
Input Signal
Video Analog RGB 0.7 Vp-p / 75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level (Positive/Negative); Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Input Connectors DisplayPort, HDMI, DVI-D, VGA 15-pin D-sub
Power Consumption
On (typical) 26W 27W 29W
Power Savings Mode (typical) 0.43W 0.41W 0.47W
Physical Specifications
Dimensions (W x H x D)
Net (with stand) 20 x 14.6-19.7 x 8.6 in.
(507.4 x 370.2-500.2 x 218mm)
21.4 x 15.0-20.1 x 8.7 in.
(543.8 x 380.4-510.4 x 218mm)
21.9 x 16.1-21.2 x 9.1 in.
(556.2 x 408.9-538.9 x 230mm)
Net (without stand) 20 x 11.9 x 2.4 in.
(507.4 x 301.1 x 60.5mm)
21.4 x 12.7 x 2.4 in.
(543.8 x 321.6 x 60.5mm)
21.9 x 14.2 x 2.5 in.
(556.2 x 359.6 x 63.8mm)
Weight
Net (with stand) 13.2lbs (6kg) 14.1lbs (6.4kg) 16.8lbs (7kg)
Net (without stand) 8.2lbs (3.7kg) 8.8lbs (4.0kg) 10.6lbs (4.8kg)
VESA Hole Configuration 100 x 100mm
Environmental Conditions
Operating Temperature 41 - 95°F (5 - 35°C)
Operating Humidity 20 - 80%
Operating Altitude 6562 ft. (2000m)   6562 ft. (2000m)
Storage Temperature 14 - 140°F (-10 - 60°C)
Storage Humidity 10 - 85%
Storage Altitude 40,000 ft. (12,192m)
Tropical Environments Yes
Environmental Compliance
ENERGY STAR 6.0
TCO 5.2 Edge 1.2 6.0
EPEAT Gold
RoHS Yes
Limited Warranty 3-Year, parts and labor, including backlight
Additional Features Tilt; Swivel; Pivot; Height-adjustable stand; ControlSync; Customize Setting; Integrated speakers; 4-port USB hub; LED backlit; Auto brightness with ambient light sensor; Human sensor; ECO Mode;
Carbon footprint meter; Resettable cost meter; Thin frame; Carrying handle; Rapid Response; Ambix; XtraView; Hot Key; Touch OSD controls; OSD Lock Out; Cable management; Dynamic Visual
Mode (Standard, Text, Movie, Gaming, Photo, Dynamic); NaViSet Administrator 2; VESA mount; HDCP; DDC/CI; No Touch Auto Adjust; Plug and Play (VESA DDC2B); VESA DPMS power management;
AccuColor color control; Digital smoothing; Digital controls; ISO 9241-307 Class I; DICOM SIM for IPS models
Ships With: Setup sheet; User manual; Power cord; 15-pin D-sub cable; DVI-D cable; USB cable; Audio cable; ControlSync cable

Learn more about the NEC Display Solutions EA234WMI-BK

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the NEC Display Solutions EA234WMI-BK

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Ian T.
  • 7/30/2014 2:55:21 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSolid panel

Pros: - Uses the more common RGB pixel layout
- HDMI & DisplayPort inputs, which is surprisingly hard to find on other monitors
- Lots of adjustments can be made (e.g. turning down the power LED's brightness)
- Matte bezel
- Tech support was knowledgeable and prompt (see other thoughts below)
- Speakers accept input over DP and HDMI
- Human sensing worked surprisingly well when I tested it
- Power consumption is on par with my other 23" IPS panel
- Has standard VESA mount capability

Cons: - Monitor needed calibration to get the colors right. The built in settings on the monitor are not enough, as those provide only linear adjustment. I used a device that sits on the monitor to create an ICC profile, and things look very good once calibrated.
- Viewing angle, while much better than a TN panel, isn't quite as good as some other IPS displays I've seen
- Default contrast is fairly low (compared to what my calibration device recommended), but can be bumped up in the settings
- Speakers aren't amazing, but will work in a pinch or in lieu of desktop speakers if you need space
- Theoretical privacy issues aside, if you want to use the "Human sensing" feature of the monitor, you will see a faint red light near the bottom center of the monitor
- Though not an issue for me (as I'm not using its USB hub), the USB ports on the left are blocked by my secondary monitor. Consider this if you're using two monitors and want access to all the USB ports.

Other Thoughts: I run dual monitors, and this is paired with my Dell U2312HM. I originally bought a P2314H to replace an old TN panel that the U2312HM was previously paired with, However, the P2314H I received had a BGR pixel layout, and ClearType text will not work properly in GDI applications on all monitors if the pixel layout is different.

Ultimately I returned the newer Dell monitor as I found non-ClearType text more fatiguing to read. After contacting NEC's tech support, they informed me that this panel was RGB, and sure enough, when it arrived, it was.

Despite the cons I still consider it to be a very good IPS panel, as they are mostly minor, can be resolved, or not an issue for everyday viewing/use. Also, the buttons are not physical buttons, but capacitive, though each have their tradeoffs and it really comes down to personal preference.

Lastly, I can't speak to the quality of the stand, as I put it in my dual monitor stand immediately. However it looks to be very well thought out in regard to cable management. Additionally, I am not using the built in USB hub, so I cannot judge its quality/functionality.

Did you find this review helpful? Yes No

  • Michael R.
  • 4/19/2014 12:17:47 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsGreat Upgrade

Pros: Great color and easy to set up. Impressive improvement in games like Skyrim and Deus Ex Human Revolution. Much better color than previous 19" generic wide screen. Includes all needed cables including several different power cords.

Cons: Printed manual was in Russian.

Other Thoughts: I am running this on a GTX 760 video card on ultra settings and love the difference. I hope this one lasts as long as my previous NEC monitor, a 4D CRT that I had for over 10 years.

Did you find this review helpful? Yes No

  • Allen H.
  • 9/29/2013 7:32:53 AM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsPerfect

Pros: Bright, easy setup, dependable

Cons: A bit pricey, but worth it

Other Thoughts: I have three of these. I bought the first one a couple of years back after having a couple of other brands either have pixels in key areas die off, ballast go out, or just completely die. I got tired of troubleshooting broken monitors. So far the first one and its two younger (two months back) siblings are trouble free.

1 out of 1 people found this review helpful. Did you? Yes No
