Item#: N82E16824002830

NEC Display MultiSync EA273WMi-BK Black 27” Widescreen AH-IPS Panel, LED Backlight LCD Monitor 6ms 250cd/m2, DisplayPort, USB hub, Height Adjust, Pivot, Tilt & Swivel, Speakers, 3 Year Warranty

  • 1920 x 1080 6ms
  • 1,000:1
  • D-Sub, DVI, HDMI, DisplayPort

  • Pin It
  • Email this page
ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

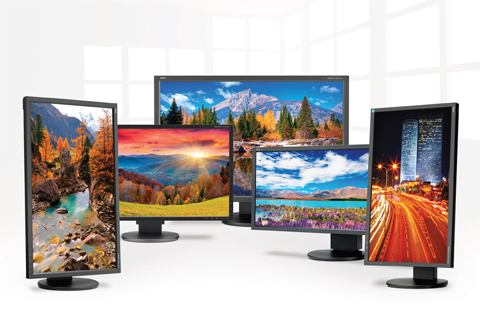

NEC MultiSync® EA Series
24-002-830

High-Performance , LED-Backlit LCD
Ideal Displays for Corporate Environments

24-002-830

Reimagine Your Desktop Computing Experience

With its 4th generation MultiSync EA Series, NEC has developed monitor solutions that push the boundaries of what you've come to know as business-grade screen performance. The 22" EA224WMi, 23" EA234WMi, 24" EA244WMi, 24" EA244UHD, 27" EA274WMi, 29" EA294WMi, and 30" EA304WMi deliver a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. Select models tout an IPS module, which boasts the best possible color accuracy and minimal viewing angle shift.

These models boast LED backlight technology, which not only reduces power by up to 52% compared to their predecessors, but leads to a 30% thinner and 25% lighter chassis. Other green features include ECO Mode™, a carbon footprint meter and an ambient light sensor, which automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both, conserving power up to 87% compared to typical energy consumption. In addition, the human sensor detects user activity in front of the monitor and reduces display power up to 95% with inactivity.

The ground breaking ControlSync™ feature allows users to control up to six select MultiSync EA Series units in a multi-monitor configuration. Upon establishing one unit as the master, you will be able to simultaneously control many performance attributes of the multi-monitor setup through the master monitor.

Highlights

24-002-830
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Four-way ergonomic stand boasts pivot, tilt, swivel and height adjustment up to 5 inches (130mm) to maximize your viewing comfort
  • Touch-sensitive OSD® controls are integrated into the bezel, making display adjustments easier than ever
  • Integrated USB hub easily connects you to your peripherals
  • Comprehensive input panel, including DisplayPort, HDMI, DVI-D and 15-pin VGA (on select models), connects you to the latest peripherals and future-proofs your investment
  • Space saving, multimedia speakers, which enhance your computing experience, are hidden to maintain the monitor's aesthetic appeal (headphone jack also included)
  • ControlSync enables multi-monitor setups of up to six monitors and controls up to 26 settings
  • Customize Setting allows both users and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment
  • Smart sensing technology includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting to the proper display brightness or entering Power Saving Mode
  • Carbon footprint meter helps track and calculate the reduction of green gas emissions, while the resettable cost meter (via On Screen Display) indicates electricity cost savings based on currency settings
  • NaViSet™ software offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.
  • EPEAT Gold compliance ensures the displays reduce hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment
  • ENERGY STAR® compliance reduces electrical costs and lowers total cost of ownership
EA Series EA Series EA Series

Specifications for MultiSync EA Series

  EA273WMi EA294WMi EA304WMi
Display
Panel Technology AH-IPS IPS AH-IPS
Backlight Type     GB-R LED
Viewable Image Size 27" 29" 29.8"
Aspect Ratio 16:9 21:9 16:10
Native Resolution 2560 x 1440 2560 x 1080 2560 x 1600
Pixel Pitch 0.233mm 0.262mm 0.25mm
Pixels Per Inch 109 @ native resolution 97 @ native resolution 101 @ native resolution
Brightness (typical) 350cd/m² 300cd/m² 350cd/m²
Contrast Ratio (typical) 1000:1 (25,000: dynamic)
Viewing Angle (typical) 178 degrees Vert., 178 degrees Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical) 6ms
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital) 31.5 - 83kHz 31.5 - 83kHz 31.5 - 98.7kHz
Vertical 56 - 75Hz 50 - 85Hz
Input Signal
Video Analog RGB 0.7 Vp-p / 75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level (Positive/Negative); Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Input Connectors DisplayPort, HDMI, DVI-D, VGA 15-pin D-sub VGA 15-pin D-Sub (2), DVI-D (2), DisplayPort, HDMI / MHL DisplayPort, HDMI, VGA, DVI-D
Power Consumption
On (typical) 57W 50W 63W
Power Savings Mode (typical) 0.8W 0.7W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 25.2 x 16.5 - 21.6 x 9.1 in.
(639.2 x 417.9 - 537.9 x 230mm)
27.8 x 16.2-21.3 x 9.1 in.
(705.8 x 410.4- 540.4 x 230mm)
27.0 x 18.6 - 23.7 x 9.1 in.
(686.9 x 472.8 - 602.8 x 230.0mm)
Net (without stand) 25.2 x 14.9 x 2.6 in.
(639.3 x 377.8 x 66.5mm)
27.8 x 12.7 x 2.7 in.
(705.8 x 321.8 x 69.1mm)
27.0 x 17.6 x 3.0 in.
(686.9 x 446.6 x 75.1mm)
Weight
Net (with stand) 19.2 lbs (8.7kg) 21.2 Ibs (9.6kg) 24.3 lbs (11.0kg)
Net (without stand) 12.8 lbs (5.8kg) 14.6 lbs (6.6k)g 17.6 lbs (8.0kg)
VESA Hole Configuration 100 x 100mm
Environmental Conditions
Operating Temperature 41 - 95°F (5 - 35°C)
Operating Humidity 20 - 80%
Operating Altitude   10,000 ft. (3048m) 6562 ft. (2000m)
Storage Temperature 14 - 140°F (-10 - 60°C)
Storage Humidity 10 - 85%
Storage Altitude 40,000 ft. (12,192m)
Tropical Environments Yes
Environmental Compliance
ENERGY STAR 6.0
TCO 6.0 5.0 6.0 / Edge Certified 1.2
EPEAT Gold
RoHS Yes
Limited Warranty 3 Years parts and labor, including backlight
Additional Features Tilt; Swivel; Pivot; Height-adjustable stand; ControlSync; Customize Setting; Integrated speakers; 4-port USB hub; LED backlit; Auto brightness with ambient light sensor; Human sensor; ECO Mode;
Carbon footprint meter; Resettable cost meter; Thin frame; Carrying handle; Rapid Response; Ambix; XtraView; Hot Key; Touch OSD controls; OSD Lock Out; Cable management; Dynamic Visual
Mode (Standard, Text, Movie, Gaming, Photo, Dynamic); NaViSet Administrator 2; VESA mount; HDCP; DDC/CI; No Touch Auto Adjust; Plug and Play (VESA DDC2B); VESA DPMS power management;
AccuColor color control; Digital smoothing; Digital controls; ISO 9241-307 Class I; DICOM SIM for IPS models
Ships With: Setup sheet; User manual; Power cord; 15-pin D-sub cable; DVI-D cable; USB cable; Audio cable; ControlSync cable Setup sheet; User manual; Power cord; DisplayPort cable; DVI-D cable; USB cable; Audio cable; ControlSync cable

Learn more about the NEC Display Solutions EA273WMi-BK

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the NEC Display Solutions EA273WMi-BK

There are no reviews yet... do you own this product? Write a Review
