Item#: N82E16824016163

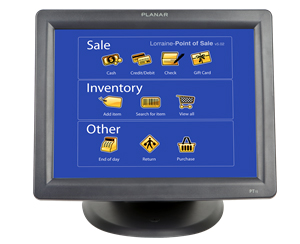

Planar 997-3981-00 PT1500MX 15-inch 5-Wire Resistive POS Touch Screen Monitor

  • 1024 x 768 Native Resolution
  • 5-Wire Resistive Touch Technology
  • Dual Serial/USB Touch Interface
  • 200 nits (Typical) Brightness
  • 140° (H) / 125° (V) View Angle
  • Pin It
  • Email this page
ICON Loading...
PT1500MX

PT1500MX Touch Monitor
15" Touch Screen Monitor

The Planar® PT1500MX 15" touch screen monitor features economical 5-wire resistive touch screen technology that is easily integrated with a variety of POS, thin client or PC systems.

The Planar PT1500MX 15" touch screen monitor is perfect for use in health care, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. Users may use a finger, gloved hand, credit card, pen or stylus to activate the resistive touch screen, and easily adjust the monitor from -5 to 90 degrees based on preference.

The OSD buttons are located on the side of the monitor to minimize setting changes and may be locked for customer-facing applications. Planar has nearly 30 years of experience delivering dependable specialty display solutions.

The Planar PT1500MX monitor includes Planar's leading CustomerFirst™ 3-Year Warranty featuring FREE 2-Day Advance Replacement for three full years.

Features and Benefits

PT1500MX
  • 15" touch screen monitor with 1280 x 1024 resolution
  • Economical 5-wire resistive touch screen technology
  • Solid, stable base with -5 to 90 degrees tilt range
  • OSD buttons on side minimize setting changes
  • Compatible with mounting options that use the 75/100mm VESA standard
PT1500MX PT1500MX PT1500MX
SPECIFICATIONS DETAILS
Product Name PT1500MX
Viewable Size 15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type 5-wire Resistive
Number of Touch Points 1
Touchscreen Interface Dual Serial/USB
Transmissivity 80 ± 2%
Contrast Ratio (typ.) 500:1
Viewing Angle (typ.) 140 degrees horizontal and 125 degrees vertical
Response Time (typ.) 8ms (2ms rise, 6ms fall)
Brightness
(w/touchscreen)
200cd/m²
Brightness (w/o
touchscreen)
250cd/m²
Brightness (typ.) N/A
Display Type LCD Active Matrix Flat Panel Display (TFT)
Display Resolution 1024 x 768
Aspect Ratio N/A
Tilt Range -5 degrees to 90 degrees
Palette 16.7 million colors
Pixel Pitch 0.297mm
Refresh Rate 56 - 75Hz
Panel Depth 2.4"
Dimensions (W x H x D) 14.3 x 12.6 x 8.1" (364.0 x 320.4 x 205.4mm)
Dimensions without Stand 14.3 x 11.6 x 2.4" (364.0 x 295.0 x 61.5mm)
Display Weight 13.0lbs (5.9kg)
Display Weight (w/o stand) 9.5lbs (4.3kg)
Shipping weight 19lbs (8.6kg)
Video Inputs Analog
Audio Output 2 speakers, 1W per channel
Compatibility Windows® 7, Vista, XP, XP Embedded, CE, 2000, ME, 98; Linux; Apple® Mac
OS
External Connections D-sub 15-pin, D-sub 9-pin, DC power connector, Type B socket USB, Stereo jack
- 3mm
Power Supply Internal AC power supply,12V DC power connector (Optional DC power supply
may be sourced separately)
Power Requirements 100 ~ 240VAC
Power Consumption (max) 21.1W (1.5W standby, 0.8W off)
Operating Temperature 32 - 112°F (0 - 40°C)
VESA Compatible/Location Built-in 75mm VESA, monitor back
Service and Support 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement
(US only)
Options / Features Anti-glare coating, Multi-language support, On screen display (OSD)
Product Approvals UL/c-UL, FCC-Class B, CE, RoHS

What's in the Box

PT1500MX

Learn more about the Planar PT1500MX (997-3981-00)

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
