Item#: N82E16824022187

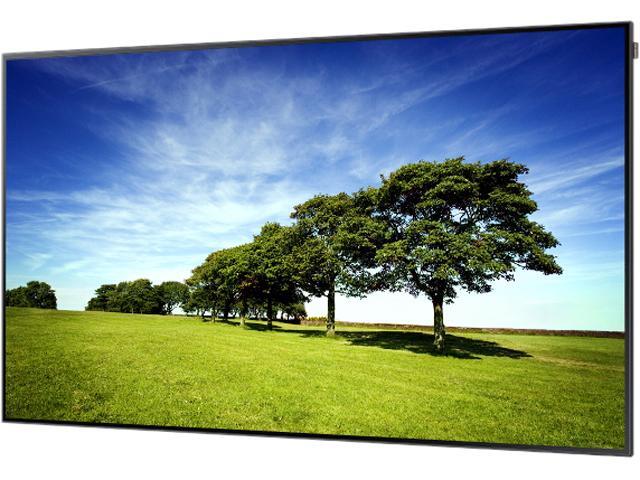

Samsung DM82D 82" DM-D Series Edge-Lit LED Large Format Display

  • 82" Screen Size
  • 1920x1080
  • 120Hz Edge-lit LED
  • 500nit Brightness
  • SMART SIGNAGE PLATFORM
  • Built-in Tuner
  • HDMI, VGA, DVI-D, Display Port 1.2, RS232C

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
DM-D Series Commercial LED LCD Displays
When Maximum Uptime Matters

Ultra-Slim Displays with Full Connectivity and 24/7 Dependability

Around the clock reliability. It's now within reach thanks to the Samsung DM-D Series. Available in four sizes - 32", 40", 48" and 55" - the competitively priced displays deliver an outstanding visual experience wherever 24/7 operation is mandatory, such as public spaces, restaurants and retail stores. The screens in Full HD deliver amazing imagery, lightweight designs ensure installation ease, and an optional touch overlay can enable up to 10 simultaneous touch points for a new level of interactivity. The New Business Experience

Features

DM-D SERIES

Reliable 24/7 Continuous Operation
Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation.


DM-D SERIES

Enhanced System-on-Chip Performance with Quad-Core CPU
Powered by a System-on-Chip semiconductor and quad-core CPU, Samsung's Smart Signage Platform reduces TCO for digital signage deployments, providing savings in hardware, installation and operating costs.


DM-D SERIES

New Industrial Design
A sleek, stylish new look features a 9.5mm bezel with optional customizable bezel trim kits (white, titanium silver, matte black, wood grain).


DM-D SERIES

Ultra-Slim 2.0" Chassis
The stylishly thin chassis helps simplify installation while meeting ADA compliance requirements.


DM-D SERIES

Slim-Direct LED Backlight
The slim-direct-lit displays of the DM-D Series feature 1920 x 1080 Full HD resolution with 450 nits brightness and 5000:1 contrast ratio for sharp, detail-rich images and crisp, easily legible type.


DM-D SERIES

Built-In Wi-Fi and AllShare Cast
Enjoy the advantages of expanded connectivity to mobile devices and simple mirroring of content on a tablet to the display.


DM-D SERIES

Optional Touch Overlay
Add an optional IR touch overlay accessory to enable up to 10 simultaneous touch points.


DM-D SERIES

Magic Info-S Digital Signage Software
The software allows you to create playlists, set playback schedules and publish contact directly to the display. Most traditional file formats are supported including RSS feed and live web pages.


DM-D SERIES

CONNECTIVITY

  • 1. RS232C In
  • 2. RS232C Out
  • 3. IR/Ambient Sensor In
  • 4. Audio In
  • 5. Audio Out
  • 6. SD Card Slot
  • 7. USB
  • 8. DVI In
  • 9. DisplayPort In
  • 10. HDMI In
  • 11. VGA In
  • 12. Display Port Out
  • 13. Antenna In
  • 14. AV In
  • 15. IR Out
  • 16. RJ45 In

Note: 32" model does not have DisplayPort In/Out.

GALLERY

DM-D SERIES DM-D SERIES DM-D SERIES

Learn more about the SAMSUNG LH82DMDPLBA/GO

General

|
Brand
Samsung
Model
LH82DMDPLBA/GO

Display

|
Screen Size
82"
Native Resolution
1920 x 1080
Brightness
500 cd/m2
Contrast Ratio (Typical)
5000:1
Viewing Angle
178°(H) / 178°(V)
Response Time
8ms

Connectivity

|
HDMI Port
3
DVI Port
DVI-D
VGA Port
VGA (D-sub 15 pin)
Component
1 In
Composite
1 In
Ethernet Port
RJ45
Other Ports
Display Port 1.2, Stereo mini Jack

RS232C(In/Out) thru stereo jack

Power

|
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
138W / 363W (TYPICAL/MAX)
< .5W (STANDBY)

Dimensions & Weight

|
Dimensions without Stand
73.0" x 41.9" x 1.9" (3.5" depth incl. handles)
Weight without Stand
106.7 lbs.

Features

|
Feature
Large 82" Display Supporting 24/7 Reliability and Continuous Operation

Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor

Sleek Industrial Design with Our New Hidden Logo Tag for a Clean Installation

Built-in Wi-Fi and AllShare? Cast for Simple Content Mirroring from Mobile Devices

H/W: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot
S/W: "Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
