Item#: N82E16824399003

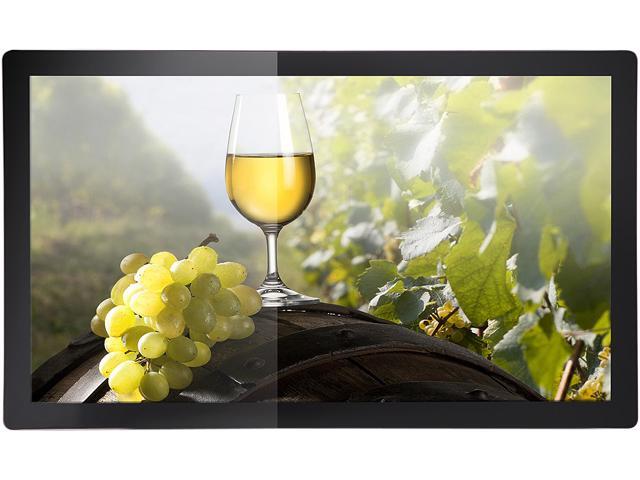

Astar DSY3209i 32in HD Commercial LED Digital Signage Display w/ Media Player

Sold and Shipped by Newegg

  • 32" Screen Size
  • 1366 x 768
  • 300 cd/m2 Brightness
  • 2000:1 Contrast Ratio
  • Built-In Media Player
  • HDMI, SD Reader, USB
  • Landscape and Portrait

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

32-Inch Interactive Display

Overview



Display

Wall-Mounted Interactive Display

The wall-mounted interactive display is a kind of touch screen with its size ranging from 22 to 46 inches. Its touch mode can be either infrared single-touch type or multi-touch type. Both stability and safety of installation are effectively controlled.

In comparison with other digital displays, the wall-mounted interface display can offer a host of advantages including high brightness, long lifespan, low power consumption, large viewing angle, long-range visibility, easy operation, convenient maintenance, low cost, etc.

Built-in touch function features high precision and quick response. The wall-mounted interactive display integrates handwriting function with computer network technology. Our product can display text, images, animations, high-definition videos, audios, electronic documents, Internet information, and other multimedia information. It can provide the audience with the maximum visual impact and an unprecedented feeling.

Our commercial touch display offers abundant interfaces such as HDMI, VGA, DVI, AUDIO, USB, and VESA interface. It can be connected with either PC or external player of our customers. The touch screen is controlled through USB port.

Display

The 32-inch interactive display is a commercial interactive signage made from highly durable steel plates. It can meet the requirements for high flow capacity and continuous interactions in public places. In response to market requirements, SEEYOO developed both single-touch and multi-touch interactive signage. Our customers can take advantage of the newest software platform to deliver any information.

The touch screen represents a general trend. When used for commercial purposes, it can save manpower, resources, management fees, and other expenses. What's more, this product offers consumers a sense of engagement. Its viewing angle reaches up to 89 degrees. Additionally, this device supports CF and USB interfaces. The 32-inch interactive display can be played flexibly by our customers in accordance with the required advertisements or other content.

Display

Specifications


Model SY3209i
Screen Resolution 1366 x 768 | 16:9
Viewing Angle 89 / 89 / 89 / 89 Degrees (L/R/U/D)
Brightness 300cd/m²
Contrast Ratio 2000:1
Display Color 16.7M
Response Time 6.5ms
Allowable Content Formats VOB / AVI / MPEG1 / 2 / 4, MP3, JPEG, BMP, PNG, Scrolling marquee
Audio Frequency Dual-channel, 2 x 3W speakers
CPU Intel D2550, Clock speed 1.86GHz
Computer Memory 2G, SATA 320G hard disk
NIC IEEE802.3 Ethernet 100M
Machine Interface CF card slot x 1, USB x 1, Power supply x 1
Display Size 27.4 x 15.4 inches (697 x 392mm)
Dimensions (L x W x H) 30.8 x 18.7 x 2 inches (782.4 x 476.8 x 52.0mm) (with 70mm wall mount)
Packing Size 34.9 x 21.9 x 6 inches (886.4 x 556.8 x 153.5mm)
Gross Weight 33lbs (15kg)
Power Supply and Power Dissipation 110 ~ 240VAC, 50/60HZ, 120W
Fittings Remote control, power cord, wall mounted plate, key, instruction manual, certificate, warranty card, and expansion screws

Learn more about the Astar DSY3209i

General

|
Brand
Astar
Model
DSY3209i

Display

|
Screen Size
32"
LED Backlight
Yes
Native Resolution
1366 x 768
Brightness
300 cd/m2
Display Colors
16.7 Million Colors
Contrast Ratio (Typical)
2000:1
Viewing Angle
89°/89°/89°/89°(L/R/U/D)
Response Time
6.5ms

Conveninence

|
Built-in Speaker
2 x 3W

Connectivity

|
USB Port
Yes

Power

|
Power Supply
AC 100 -240 V(+/-10%), 50/60 Hz
Power Consumption
70W

Dimensions

|
Dimensions without Stand
30.8" x 18.77" x 1.99"
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the Astar DSY3209i

There are no reviews yet... do you own this product? Write a Review
