Item#: N82E16828289028

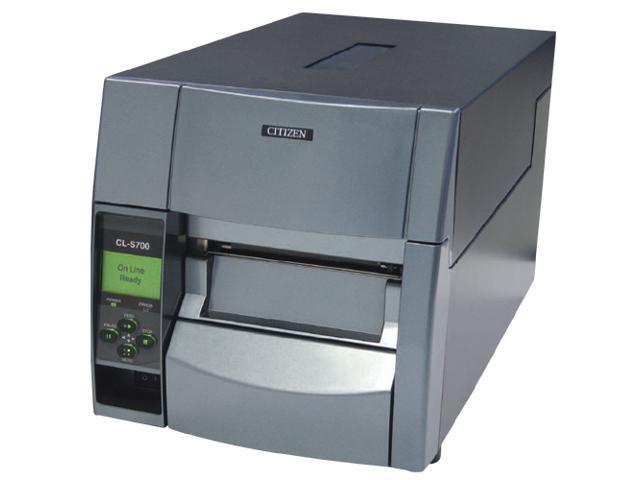

CITIZEN CL-S700 Barcode/Label Printers

Be the first to review this product...
  • Direct Thermal and Thermal Transfer
  • 203 DPI, 10 IPS
  • Adjustable Media Sensor
  • No Media Handling
  • Serial, Parallel, and USB Connectivity

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Citizen CL-S700 Series

High Performance with Easy Access
Ingeniously Designed for Easy Operation and Reliability

The CL-S700 front loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a high-lift metal mechanism that opens to a full 90 degrees, allowing for easy access to the ribbon and media path. Best of all, the Hi-Open design of the CL S700 allows the case to be opened vertically, making it the perfect printer for placement in confined settings. In addition, the CL S700 offers all the superior features you have come to expect from citizen Active Ribbon Control and Positioning system to eliminate ribbon wrinkle and media slippage, rugged heavy-duty steel cabinet for extra durability.

Features

Citizen CL-S700 Series
  • Programmable front LCD panel
  • Cross-Emulation™ control board
  • Direct thermal or thermal transfer printing
  • Fast 10ips print speed
  • 450m ribbon – inside or outside wound
  • Metal Hi-Lift™ print mechanism
  • Heavy-duty steel cabinet
  • Active Ribbon Control and Positioning system (ARCP)
  • Internal 8-inch (200mm) media capacity
  • Standard internal parallel, serial and USB interfaces
  • 300dpi version available (CL-S703)
  • Optional internal Ethernet card
  • Optional peeler and cutter available
  • Label-making software included
  • Ships with Windows™ 2000, XP, and Vista Drivers
  • Two-Year Warranty

Key benefits

Citizen CL-S700 Series

  • Front exit - prevents damage from moisture or foreign objects
  • Variable paper width - 1 inch (25.4mm) – 4.6 inches (118.1mm)
  • Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Paper thickness up to 0.250mm
  • Ultra fast print out – nearly 10ips (250mm per/sec)
  • Backlight LCD control panel for easy configuration
  • Very large media capacity - holds rolls up to 8 inches (200mm)
  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • Integrated power supply enables clean work station
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.

Connectivity

Citizen CL-S700 Series
  • Triple interface USB, parallel and serial built-in, exchangeable interface card slot for optional card from list below.
  • LAN
  • Wi-Fi

Operating Systems

Citizen CL-S700 Series

  • Windows XP, Vista, 7 and 8
  • Windows Server 2003, 2008R2 and 2012
  • Linux and Mac OS/X
  • Cross-Emulation™ - Automatically switch between Zebra® ZPL® and Datamax®
  • CUPS

Applications

Citizen CL-S700 Series

  • Supply chain
  • Inventory control
  • Asset tracking
  • Packaging
  • Healthcare
  • Ticketing

Specifications

Model Version
CL-S700DT
CL-S700
CL-S700R
Technology Direct Thermal Thermal Transfer & Direct Thermal
Resolution 203dpi (8 dots permm)
Print Speed (maximum) 7ips, 175mm/sec 10 inches per second (254mm / second)
Print Width (maximum) 4.10 inches (104.1mm)
Media Width (min to max.) 1.00 inches to 4.65 inches (25.4mm to 118.1mm)
Media Length (min. to max.) 0.25 inches to 32.0 inches (6.35mm to 812.8mm)
Roll Size (max.), Core Size (min.) 8 inches (200mm) outside diameter. Core size minimum of 1 inch (25mm). External media slot
Media Sensor Fixed front sensor Fully adjustable rear sensor and high resolution front sensor
Media Thickness (min. to max.) 0.0025 inches - 0.01 inches (0.0635 - 0.254mm)
Ribbon Size Direct thermal only 3.40 inches (86.5mm) maximum Outside Diameter. 1476 ft (450 metres) length
Ribbon Winding & Type Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type
Ribbon System ARCP™ automatic ribbon tension adjustment
Emulations (Languages) Cross-Emulation™ - automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400®
Standard Interfaces Serial & USB Parallel (IEEE-1284), Serial (RS-232C), USB (version 1.1)
Optional Interfaces Parallel, LAN, WLAN Ethernet LAN (10/100 BaseT), Wireless LAN (802.11b, g, n*)
Case Type, Mechanism Type Hi-Open™ metal case with safe, soft-close feature. Hi-Lift™ mechanism with 90-degree opening
Control Panel 4-Line back-lit graphic LCD and 4 buttons
RAM (Standard Memory) 16.0Mb total, 1.0Mb available for user
Flash (Non-Volatile Memory) 4.0Mb total, 1.0Mb available for user
Windows® Drivers, Design Software Free-of-charge on CD with printer, including support for Windows® XP®, 2003, 2008, Vista®
Internal Peeler & Rewinder No No Yes
Dimensions (W x D x H) 10 x 19.3 x 10.4 in.
(255 x 490 x 265mm)		 10 x 19.3 x 10.4 in.
(255 x 490 x 265mm)		 10 x 19.29 x 15.1 in.
(255 x 490 x 385mm)
Weight (approximately) 27.5 lbs (12.5kg) 29.3 lbs (13.3kg) 38.8 lbs (17.6kg)
Warranty 2-Year Manufacturer's Warranty or 100Km on printer. Printhead: 50Kms or 6 months in TT mode


Learn more about the Citizen CL-S700

General

|
Brand
CITIZEN
Model
CL-S700

Printer

|
Print Technology
Direct Thermal/Thermal Transfer Printer
Printer Type
Industrial
Print Speed
10 ips
Max Resolution(B&W)
203 dpi
Memory
RAM: 16.0 Mb (1.0 Mb for user data)
Flash RAM (NV): 4.0 Mb (1.0 Mb for user data)
Fonts Included
7 kinds of fixed pitch fonts including OCR-A and OCR-B, Proportional fonts:
CG Triumvirate smooth and bold, and True Type Rasterizer
Barcode Type
Code3of9, UPC-A, UPC-E, EAN-13(JAN-13), EAN-8(JAN-8), Interleaved 2 of 5,
Code128, HIBC, CODABAR(NW-7), Plessey, CASE CODE, UPC2DIG ADD,
UPC5DIG ADD, Code 93, Telepan, ZIP, UCC/EAN128, FIM
2-Dimensional: UPS Maxi Code, PDF-417, Data Matrix, QRCode, Aztec, RSS

Media Handling

|
Media Type
Roll or fanfold, Continuous or perforated, Die-cut labels, tags and tickets
Media sizes supported
Print Width: 4.1" (max)
Paper WIdth (min/max): 1.0" - 4.65"
Paper Thickness: 0.0025" - 0.01"
Paper Roll Size: 8" (max)
Print Length: 32" (max)
Ribbon Type: Wax, wax-resin or resin
Ribbon Length: 1476' (450m) inside or outside wound

Connections

|
Interface
Parallel / Serial / USB

Features

|
Features
Emulations: Datamax or Zebra
Media Sensing:
Label gap, notch or reflective
Moveable media sensor: Standard

Programmable front LCD panel
Cross-Emulation control board
450m ribbon – inside or outside wound
Metal Hi-Lift print mechanism
Heavy-duty steel cabinet
Active Ribbon Control and Positioning system (ARCP)
Internal 8-inch (200mm) media capacity

Dimensions & Weight

|
Dimensions
10.78" x 18.30" x 9.72"
Weight
29.32 lbs. (40.56 lbs. with rewinder)
