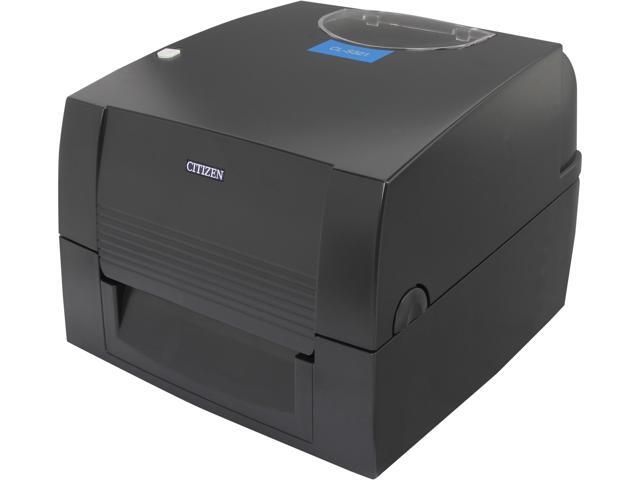

Citizen CL-S231 Thermal Receipt Printer
A Great Fit for New or Existing Desktop Applications!
Value-Based Thermal Transfer Printing
The CL-S321 is a compact and affordable thermal transfer printer. Designed to provide what is needed to get the job done, as well as to fit the economic needs of the value minded desktop user, the CL-S321 makes the solution sensible, simple and intuitive.
The CL-S321 is compact and affordable, making thermal transfer printing easy and friendly. Fully EPL2 compatible, the CL-S321 is very easy to use, while replacing and integrating into legacy printer applications. Available in either USB & Serial or USB, Serial and 10/100 Ethernet, the CL-S321 covers your common interface requirements.
Features
- EPL2 programming language compatible
- Hi-Open™ housing for easy media loading
- Self-contained mechanism for durable operation
- Compact design
- Single button control panel
- Auto switching power supply, 100 ~ 240V, 50-60Hz
- Fixed label sensor
- Standard tear-bar for perforated tags
- USB 2.0 and RS-232 serial interfaces standard
- Optional 10-100 Ethernet options (with USB)
- Media roll holder
Applications
- Retail
- Healthcare
- Clinic/Pharmacy
- E-Seller
- SME / SMB
- General Office Usage
Backward Compatible for Legacy Applications
The CL-S321 features legacy EPL2 compatibility making it easy to plug and go with existing applications. Easy to use and economically priced the CL-S321 is a great fit for value based thermal transfer printing.
Simple and Intuitive Use
Easy to load ribbon, easy access label path and single button operation make the CL-S321 ultimately easy to use.
Compact and Efficiently Sized
The compact and efficient design help reduce desktop space usage and make the CL-S321 a great fit for all thermal transfer applications.
Flexible Interface Options
With full speed USB 2.0 and RS-232 serial interfaces standard and 10/100 Ethernet interface optional the CL-S321 is flexible and ready to fit into your applications both old and new
Specifications
| Technology |
Thermal Transfer/Direct Thermal |
| Resolution |
203dpi (8 dots per mm) |
| Print Speed (maximum) |
4 inches per second (102mm/s) |
| Print Width (maximum) |
4.25 inches (108mm) |
| Media Width (min to max) |
1 inch to 4.64 inches (25.4mm to 118mm) |
| Media Thickness (min to max) |
0.003 to 0.008 inches (0.06 to 0.2mm) |
| Media Sensor |
Fixed label gap and black mark |
| Media Length (min to max) |
1.5 inches to 68 inches (38.1mm to 1727mm) |
| Roll Size (max), Core size |
5 inches (127mm) diameter, 1 / 1.5 inches (25.4mm / 38.1mm) core |
| Interface |
USB (version 2.0, full speed), RS-232 Serial (DB-9) |
| Case |
Hi-Open™ |
| Mechanism |
Self-contained |
| Panel |
One LED, Control key: FEED |
| Flash (Non-Volatile Memory) |
8MB Flash, 16MB SDRAM |
| Windows® drivers and software |
Supporting XP®, 2003, 2008, Vista™, 7, 8 |
| Size (H x W x D) and Weight |
6.7 x 8.8 x 10" (170 x 224 x 254mm)
5.5lbs (2.5kg) |
| Printer, Head Warranty |
2 Years for Printer; 30Kms / 6 months on head |
