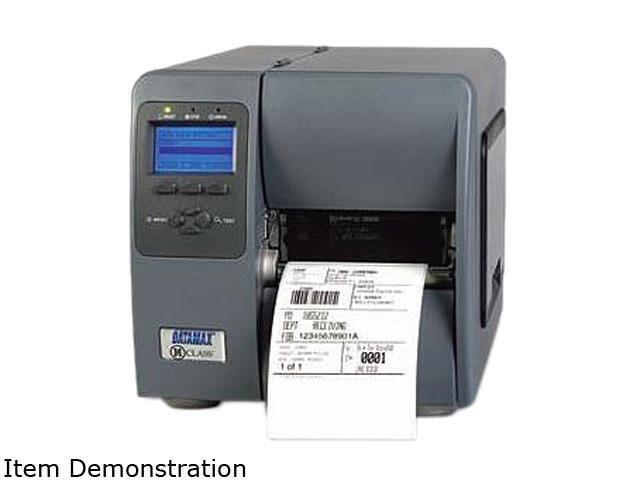

DATAMAX M-Class M-4210 Monochrome - Desktop Label Printer

Datamax-O'Neil KJ2-00-08000007 M-4210 M-Class Mark II Industrial Label Printer

Sold and Shipped by Newegg

Direct Thermal
203 DPI, 10 IPS
No Internal Rewinder
No Cutter
Serial, Parallel, and USB Interface
3" Revolving Convertible Hub

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The new Datamax M-Class compact industrial strength printer is a rugged and versatile printer that provides the most accurate printing and flexible standards for today's business requirements. The smaller footprint of the M-Class is ideal for users who need the power of an industrial printer, but must consider space limitations. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows a variety of options to be upgraded in the field. The M-Class is quickly becoming one of the industries most sought after printers.

Learn more about the DATAMAX-O'NEIL M-4210

General

Brand: DATAMAX

Series: M-Class

Model: M-4210

Printer

Print Technology: Direct Thermal

Print Speed: 10 IPS (254 mm/s)

Max Resolution(B&W): 203 dpi

Memory: 16 MB

Fonts Included: Ten alphanumeric fonts from 2.5 to 23 point size, including OCR-A, OCR-B, CG Triumvirate smooth font from AGFA

Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support

Barcode Type: Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State

2D Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar

Media Handling

Media Type: Roll-fed: 8.0" (203.2mm) O.D. on a 3.0" (76.2mm) core; 7.0" (177.8mm) on a 1.5" (38.1mm) core

Fan-fold stock: accepted from rear and bottom of printer

Die-cut or continuous labels

Perforated or continuous tag / ticket stock

Media sizes supported: Media width range: 0.75" - 4.65" (19mm - 118.1mm)

Minimum media length:
- Tear-off and rewind modes: 0.25" (6.35mm)
- Peel and cutter modes: 1.0" (25.4mm)

Connections

Interface: Serial RS232, Parallel Bi-Directional, USB 2.0 Compatible

Features

Features: Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium

Rugged construction features a precision die-cast aluminum frame

Real time clock for accurate date-time labeling

Multi-language menu available in English, Spanish, German, Italian, and French

5-button, 128x64 LCD graphical backlit display is easy to read, enabling userfriendly label configuration set-up

Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer

Versatile media compatibility supports coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management

IntelliSEAQ printhead: proactive diagnostic tools allow easy access to printhead performance and history

Software: The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions
