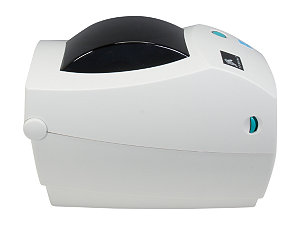

Zebra TLP 2824 Plus (282P-101110-000) Thermal Transfer Printer 4" (102 mm)/sec. 203 dpi (8 dots/mm) Label Printer

General

Brand

Zebra

Model

TLP 2824 Plus (282P-101110-000)

Printer

Print Technology

Thermal Transfer Printer

Print Speed

4" (102 mm)/sec.

Max Resolution(B&W)

203 dpi (8 dots/mm)

Memory

Standard Memory: 8 MB
Memory Technology: SDRAM
Flash Memory: 4 MB

Fonts Included

EPL, ZPL

Barcode Type

Codabar
Code 11
Code 128
Code 39
Code 93
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
MSI
Plessey
POSTNET
RSS-14
Standard 2 of 5
UPC-A
UPC-A with 2 or 5 digit extension
UPC-E with 2 or 5 digit extension
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC/EAN 128
MSI-3
German Post Code
CODABLOCK
Code 49
Data Matrix
Maxi Code
Micro PDF-417
PDF-417
QR Code
RSS
GS1 DataBar
Aztec Code

Media Handling

Media Type

Black Bar
Black Mark
Continuous Form
Continuous Receipt
Die-cut Label
Gap
Fanfold
Linerless
notch
Notched
Perforated Paper
Receipt
Roll Fed
Tag
Tag Stock

Media sizes supported

Media Thickness: 7 mil
Maximum Roll Diameter: 5"
Label Width: 2.36"
Label Length: 39"
Ribbon Core Size: 0.50"
Maximum Print Width: 2.20"

Connections

Interface

USB / Serial

Features

Features

Reset feature button

32 bit RISC processor

Auto calibration of media

Certified Microsoft Windows drivers

Odometer for printer length tracking

Construction: ABS double-walled casing

OpenACCESS design for easy media loading

Unicode compliant for multi-language printing

Product Type: Thermal Transfer Printer
Recommended Use: Label Print
Print Color: Monochrome
Input Voltage: 110 V AC, 220 V AC
Media Sensor: Reflective Media Sensor, Transmissive Media Sensor, Head Open Sensor

Dimensions & Weight

Dimensions

7.00" x 5.30" x 9.50"

Weight

3.50 lbs.

Manufacturer Warranty

Parts

1 year limited

Labor

1 year limited
