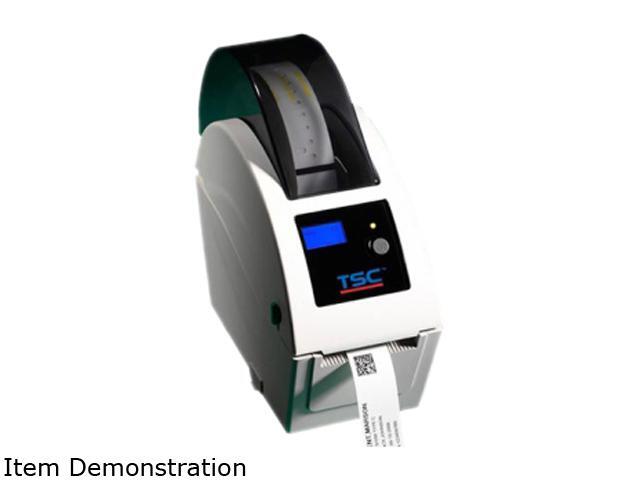

TSC 99-039A002-41LF TDP-225W Desktop Thermal Wristband Printer

Sold and Shipped by Newegg

  • Direct Thermal
  • 203 DPI, 5 IPS
  • Ethernet and USB Interface

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
28-782-024

Desktop Direct Thermal Bar Code Printer
TDP-244

Wristband Printing at an Affordable Price
One of the latest additions to TSC’s line of world-class desktop printers, the TDP-225W wristband label printer is custom-designed for patient ID and entertainment ticketing.

The TDP-225W, which can be wall-mounted, features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity. Unlike other direct thermal printers, it is extremely compact, while supporting full 6.5-inch OD wristband rolls. Its spring-loaded center-biased wristband holder accommodates standard 1-inch-core that is common to full 6.5-inch OD rolls sold by major wristband manufacturers.

The TDP-225W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.

Key Features

28-782-024
  • Designed to hold 6.5-inch OD wristbands
  • Front LCD display
  • High quality double-walled clamshell design
  • Easy media loading
  • Up to 5" (127mm) per second print speed
  • SD Flash memory expansion up to 4GB
  • Ethernet and USB 2.0 connectivity
  • Optional peel-off module, cutter module and down-time keyboard interface

Applications

  • Healthcare
    • Patient ID tracking
    • Hospital admissions
    • Hospital nursery
  • Entertainment & Hospitality
    • Amusement parks
    • Water parks
    • Event admissions
    • Night club age verification
  • Other Markets
    • Law enforcement
    • Crowd control
    • Animal ID
    • Restricted area access
Printer Model TDP-225W
Resolution 203dpi (8 dots/mm)
Printing Method Direct Thermal
Max. Print Speed 5" (127mm)/second
Max. Print Width 2.05" (52mm)
Max. Print Length 90" (2286mm)
Enclosure Clamshell design with wall mount hole at the bottom cover
Physical Dimensions (W x H x D) 4.29 x 8.27 x 10.24" (109 x 210 x 260mm)
Weight 2.65lbs (1.2kg)

Learn more about the TSC Auto ID Technology 99-039A002-41LF

General

|
Brand
TSC Auto ID
Series
TDP-225
Model
99-039A002-41LF

Printer

|
Print Technology
Direct Thermal/Thermal Transfer Printer
Printer Type
Desktop
Print Speed
127 mm / sec
Max Resolution(B&W)
203 dpi
Memory
4MB Flash Memory
8MB SDRAM
MicroSD card slot for memory expansion, up to 4 GB
Fonts Included
Eight alpha-numeric bitmap fronts
One Monotype Imaging CG Triumvirate Bold Condensed scalable font
Built-in Monotype True Type Font engine
Barcode Type
1D bar code

Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, LESSEY, POSTNET, GS1 DataBar, Logmars, Code 11

2D bar code

PDF-417, Maxicode, DataMatrix, QR code, Aztec

Media Handling

|
Media Type
Continuous, die-cut, tag & fan-fold
Media sizes supported
Media width: 25.4~112 mm (1.0"~ 4.4")
Media thickness: 0.06~0.19 mm (2.3~7.4 mil)
Media core diameter: 25.4 mm (1") & 38.1 mm (1.5")

Connections

|
Interface
Ethernet / USB

Features

|
Features
Perfect size – space saving design

Fast Processor 200 MHz

Standard memory of 4 MB Flash, 8 MB SDRAM and SD card reader for memory expansion up to 4 GB

High quality double-walled clamshell design

Easy ribbon loading

Easy media loading

Durability and reliability

USB 2.0, serial, parallel and Ethernet interfaces are standard

Powerful firmware: TSPL-EZ, file manager, BASIC programming, stand-alone programming

Dimensions & Weight

|
Dimensions
6.73" x 4.29" x 8.23"
Weight
2.65 lbs.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
