Item#: N82E16830111653

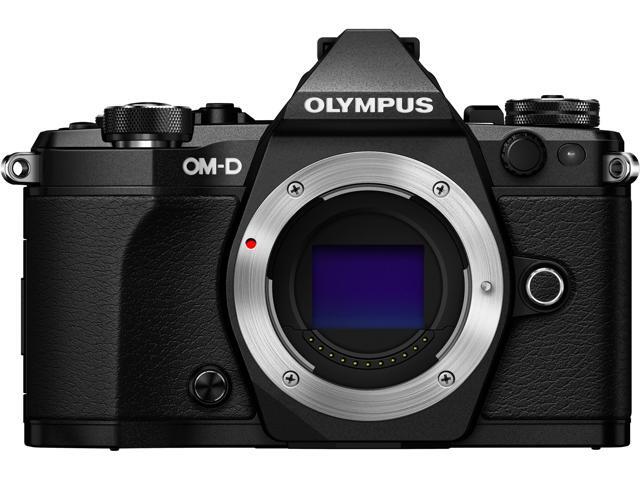

OLYMPUS OM-D E-M5 Mark II V207040BU000 Black 16.1 MP 3.0" LCD Mirrorless Micro Four Thirds Digital Camera (Body)

  • 16MP Live MOS Sensor
  • 2360k-Dot Electronic Viewfinder
  • 3.0" Tilting OLED Monitor
  • Full HD 1080i Video
  • Built-In WiFi
  • 5-Axis VCM Image Stabilization
  • Dustproof and Splash-Proof Construction

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The OLYMPUS OM-D E-M5 Mark II Mirrorless Micro Four Thirds digital camera is an attractive, portable, powerful and element-proof camera great for travel, outdoor life and everyday use. It incorporates a 16MP Live MOS sensor with a TruePic VII Image Processor for superior imaging capability. A 5-axis VCM (voice coil motor) Image Stabilization provides up to five steps of compensation for capturing crystal-clear, blur-free stills and videos even when you're moving. The touch-enabled LCD display allows intuitive adjustment of AF point, exposure and more, and can be rotated and flipped to any angle for easy selfie taking. When not using the LCD monitor for live view, the 2,360k-dot EVF provides a virtually lag-free view with a 1.48x magnification.

A new 40M High Res Shot mode lets you create 40MP image by taking and combining eight images in to one. Evolved movie capability allows you to record Full HD footage with high bit rate of up to 77Mbps and multiple frame rate options. With built-in Wi-Fi, you can control the camera from your smartphone, and instantly share the photos on the spot. Plus, this model is sealed for splashproof, dustproof and freezeproof protection thus it's always ready to capture your beautiful moment when it happens.

  • newegg Upgrade Your Image The high-speed 16 Megapixel Live MOS sensor/TruePic VII image processor combo that has won accolades from professional publications and websites is at the heart of the E-M5 Mark II’s imaging performance. Also available: a 40 Megapixel high-resolution shooting option for landscapes and studio shots that require the maximum possible detail; 10fps burst shooting; a blazing fast maximum shutter speed of 1/8000 sec.; and a high-performance electronic first curtain and a purely electronic shutter for totally silent shooting.
  • newegg Ban the Blur With the E-M5 Mark II, Olympus has once again raised the bar on image stabilization technology, with an industry-leading five steps of compensation - that's the most sophisticated image stabilization in the world!*. No matter how you move the camera – horizontal or vertical shift, pitch, yaw or roll – five-axis IS has you covered. And because the IS system is in the body of the camera, you’ll get blur-free results regardless of which lens you use. (*Based on compensation performance equivalent to 5 shutter speed steps as of February 5 2015)
  • newegg Serious Movies Made Simple Forget about obtrusive rigs that make shooting movies a production. The E-M5 Mark II’s compact size and 5-axis image stabilization make it the world’s best interchangeable lens camera for hand-held video. Pro-level features include high bit rate recording, variable frame rate and focus peaking while filming, and the Movie & Still Compatible lens drive mechanism, or MSC, found in M.Zuiko lenses eliminates auto focus sound for fast, smooth and silent autofocus operation while filming.
  • newegg Discover the ease of wire-free Take complete control of your photography – wirelessly from your smartphone. Thanks to the E-M5 Mark II’s built-in Wi-Fi, you can adjust aperture, shutter speeds and other settings without ever touching the camera. With OLYMPUS Image Share on your phone, you can then share your photos instantly on social network sites.
  • newegg Capture new perspectives Because the touch-screen Vari-angle LCD can be flipped to any angle, you are free to film creative perspectives. Control the microphone and time code on the LCD or use the digital level with ease too.
  • newegg Fully Proofed and Portable From the diamond textured dual control dials, to the 6 direct function buttons, the E-M5 Mark II is a highly accomplished ergonomic photographic tool. All external controls have been arranged for making quick changes to key settings on the fly second nature. Sealed for protection against moisture and dust, the E-M5 Mark II’s durable all metal construction body supports a full array of similarly “proofed” accessories, including the bundled FL-LM3 swivel bounce flash and an optional powered battery grip as well as eight* M.Zuiko Digital weather-sealed lenses. The camera’s shape and materials were specifically chosen to keep the body slim but easy to hold and shoot with all day. (*Including lenses currently under development planned for release in 2015.)

Learn more about the Olympus America Inc. OM-D E-M5 Mark II

Model

|
Brand
OLYMPUS
Model
OM-D E-M5 Mark II
Part
V207040BU000

Details

|
Color
Black
Package Type
Body Only

Image Sensor

|
Image Sensor
MOS
Gross Pixels
17.2 MP
Effective Pixels
16.1 MP
Aspect Ratio
4:3 (Horizontal : Vertical)
Image Stabilization
Built-in 5-axis* sensor-shift image stabilization for movie and still photos
*yaw/pitch/roll/vertical shift/horizontal shift
Image Processor
TruePic VII

White Balance

|
White Balance
Auto WB, 7 Preset WBs, 4 Capture WBs, Custom WB(Kelvin setting)

Viewfinder

|
Viewfinder Type
Electronic
Magnification
Approx. 100% / Approx. 1.30x*1 - 1.48x*2 (-1m-1, 50mm lens, Infinity)
*1: at Finder Style 1, 2 (aspect 4:3) *2: at Finder Style 3 (aspect 4:3)
Eyepoint
Approx. 21mm (-1m-1, Distance from rear lens surface)
Dioptric Adjustment
-4 ~ +2m-1
Mirror
Tilting capability With (mirror display when monitor is in self portrait position)

LCD Monitor

|
LCD
3.0"

Focus

|
Focus Type
Auto & Manual
Focusing Modes
Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF + TR)
AF Points
81-area multiple AF/ All target, group target area (9-area), single target(normal), single target(small)
Focusing Point Selection
81-area multiple AF/ All target, group target area (9-area), single target(normal), single target(small)

Exposure

|
Exposure Control
i Auto, P: Program AE (Program shift can be performed), A: Aperture priority AE,
S: Shutter priority AE, M: Manual, Bulb, Time, Scene select AE, Art Filter,
Underwater wide / macro* , My Set
*Selectable from menu as a function on Fn button
*My set can be set to mode dial function
Exposure Compensation
Still photo + / - 5 EV, movie + / - 3 EV, with selectable EV adjustment steps (1/3, 1/2, 1)
Metering System
Digital ESP metering (324-area multi pattern metering), center-weighted average metering, spot metering, spot metering with highlight control, spot metering with shadow control

Metering range
EV -2 - 20 (using 17mm f2.8, ISO 100)
ISO Sensitivity
AUTO ISO : LOW(approx. 100) -25600 (customizable, Defalut:LOW-1600)
Manual ISO : LOW(approx.100), 200 - 25600, 1/3 or 1 EV steps selectable
AE Lock
With

Shutter

|
Shutter Type
Focal-plane shutter / 1/8000 - 60 sec., with selectable EV adjustment steps (1/3, 1/2, 1)
Shutter Speed
Bulb/Time: selectable exposure time (1/2/4/8/15/20/25/30 min.), with 8-min. default setting
Self-timer
Operation time: 12 sec., 2 sec., custom (Wait time: 1-30sec., Shot interval: 0.5/1/2/3sec., Number of shots: 1-10, Every time AF: ON/OFF)

Flash

|
Flash Mode
Flash Auto, Redeye, Fill-in, Flash Off, Red-eye Slow sync.(1st curtain), Slow sync.(1st curtain), Slow sync.(2nd curtain), Manual1/1FULL~1/64
Flash Control
"TTL Auto, Auto*, Manual, Super FP*(FP-TTL AUTO, FP-MANUAL)
* Available on the external flash"
Flash Exposure Compensation
Up to + / - 3 EV in 0.3, 0.5, 1 EV steps selectable
External Flash
Compatible external flash: FL-50R, FL-36R, FL-300R, FL600R
Control method: Triggered and controlled by the bundled FL-LM3 or FL-600R

Drive System

|
Continuous Shooting Speed
Sequential shooting H mode: approx 10.0 fps (IS OFF, Focus and exposure are fixed at the values for the first shot.)
Sequential shooting L mode: approx 5.0 fps
*When using the M.ZUIKO DIGITAL ED 12-50mm f3.5-6.3 EZ

Function

|
Color Mode
GB, Adobe RGB
Live View Function
Approx. 100% field of view,
exposure compensation preview, WB adjustment preview, gradation preview, face detection preview (up to 8 faces),
grid line, magnification display (x3/x5/x7/x10/x14),
Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image Only)
Playback
Single-frame, Information display, Index display (4/9/25/100 frames), Calendar, Enlargement (2x - 14x), Movie (with sound, FF/REW/Pause), Picture rotation (auto), Slideshow (with sound including BGM, Slide show effects, replaceable BGM), Light Box display

Recording System

|
File Format
DCF, DPOF compatible / Exif, PRINT Image Matching III, MPO compatible
Image Type
RAW (12-bit lossless compression), JPEG, RAW+JPEG, MPO(3D still)
Recording Media
SD / SDHC /SDXC Card

Movie

|
Movie Format
MOV(MPEG-4AVC/v) , AVI(Motion JPEG)
Movie Recording
MOV:
1920x1080 (FHD) / 30p, 25p, 24p / ALL-I (A-I), IPB (SF,F,N)
1920x1080 (FHD) / 60p, 50p / IPB (SF, F, N)
1280x720 (HD) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF,F,N)
*60p: 59.94fps, 50p: 50.00fps, 30p: 29.97fps, 25p: 25.00fps, 24p: 23.98fps
*FHD ALL-I (A-I: approx. 77Mbps)
*FHD IPB (SF: approx. 52Mbps, F: approx. 30Mbps, N: approx. 18Mbps
AVI:
1280x720 (HD) / 30p
640x480 (SD) / 30p
*Frame rates may drop when particular Art Filters and Movie Effect are used
*Class 10 or higher SD card is recommended for shooting movies
*UHS-II or UHS-I U3 card is recommended for ALL-I shooting.
Max. Recording Resolution
1920 x 1080

Lens

|
Compatible Lenses
Olympus Lenses
Lens Mount
Four Thirds Mount

Interface

|
USB
Yes
HDMI
Yes
Built in Wifi
Yes
Mic
Yes

Power Source

|
Battery
BLN-1 Li-ion battery (included)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the Olympus America Inc. OM-D E-M5 Mark II

There are no reviews yet... do you own this product? Write a Review
