Model

Brand

SAMSUNG

Series

NX

Model

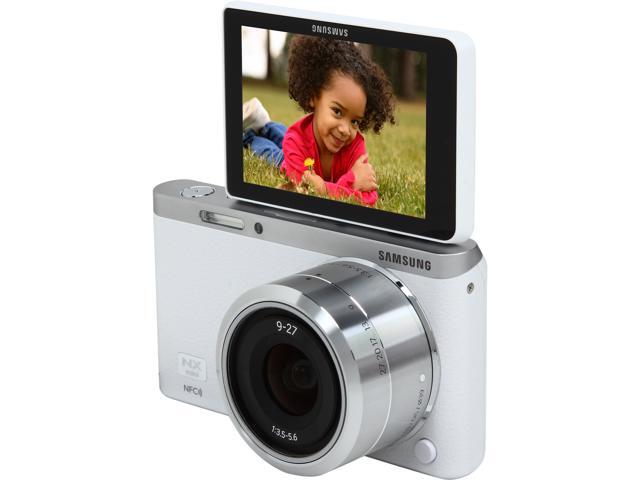

NX Mini

Part

EV-NXF1ZZB2HUS

Details

Color

White

Package Type

Single Lens Kit

Image Sensor

Image Sensor

BSI CMOS

Image Sensor Size

13.2 X 8.8 mm

Gross Pixels

20.9 MP

Effective Pixels

20.5 MP

Color Filter System

RGB primary color filter

Image Stabilization

Type: Lens shift (depends on lens)
Mode: Off/Mode 1/Mode 2

Resolution

JPEG (3:2): 20.0M (5472X3648), 10.1M (3888X2592), 5.9M (2976X1984), 5.0M (2736X1824) (Burst mode only), 2.0M (1728X1152)

JPEG (16:9): 16.9M (5472X3080), 7.8M (3712X2088), 4.9M (2944X1656), 2.1M (1920X1080)

JPEG (1:1): 13.3M (3648X3648), 7.0M (2640X2640), 4.0M (2000X2000), 1.1M (1024X1024)

RAW: 20.0M (5472X3648)

White Balance

White Balance

Auto WB, Daylight, Cloudy, Fluorescent White, Fluorescent NW, Fluorescent Daylight, Tungsten, Flash WB, Custom Set, Color Temperature (Manual)

Viewfinder

Viewfinder Type

Electronic

LCD Monitor

LCD

3.0" 460.8K Touch

LCD Coverage

100%

Focus

Focus Type

Contrast AF

Focusing Modes

Single AF, Continuous AF, Manual Focus, Touch AF & Shutter

AF-assist Beam

Green LED

Focusing Point Selection

1 point (Free selection)

Exposure

Exposure Compensation

+/-3 EV (1/3 EV Step)

Metering System

L 221 (17X13) Block segment
Metering: Multi, Center-weighted, Spot
Metering range: EV 0-18 (ISO160 · 9 mm, F3.5)

ISO Sensitivity

Auto, 160, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3 EV Step)
* Auto ISO settings are selectable up to ISO 3200. You can select ISO 100 and 25600.

AE Lock

Custom button

Shutter

Shutter Type

Electronic shutter

Shutter Speed

Auto: 1/16,000-30 sec.
Manual: 1/16,000-30 sec. (1/3 EV Step)
Bulb (time limit: 4 min.)

Self-timer

2-30 sec. (1 second interval)

Flash

Flash Type

Built-in flash

Flash Mode

Smart Flash, Auto, Auto Red-eye, Fill in, Fill-in Red, 1st Curtain, 2nd Curtain, Off

Flash Range

24 mm (35 mm film equivalent)

External Flash

Samsung NX mini external flash available (SEF7A)
Guide number: 8 (Based on ISO 160, 24 mm), 7 (Based on ISO 100, 24 mm)

Drive System

Drive Modes

Single, Continuous, Burst (5M only), Timer, Bracket (Auto Exposure, White Balance, Picture Wizard, Depth)

Continuous Shooting Speed

JPEG: 6 fps
Burst (5M): 10, 15, or 30 frames per second
RAW: 6 fps

Function

Shooting Modes

Auto, Smart, Program, Aperture Priority, Shutter Priority, Manual

Playback

Single image, Thumbnails (15/28), Slide show, Movie

Recording System

File Format

RAW (SRW (ver.3.0.0)), JPEG (EXIF 2.3), MP4 (Movie), DCF

Color Space

sRGB, Adobe RGB

Recording Media

MicroSD, MicroSDHC, MicroSDXC, UHS-I MicroSD Support

Movie

Movie Format

MP4 (H.264)

Movie Recording

Full HD 1920x1080/30p, 1280x720/30p, 640x480/30p, 320x240/30p

Max. Recording Resolution

1920 x 1080

Lens

Compatible Lenses

Samsung NX-M Lenses

Lens Mount

SAMSUNG NX Mount

Lens Spec

FOCAL LENGTH: 9-27mm (equivalent to 24.3-72.9mm in 35mm format)
F NO.: F3.5 - 5.6

Interface

USB

Yes

A/V Out

NTSC, PAL (selectable)

HDMI

Yes

Built in Wifi

Yes

GPS

GPS Enabled

Power Source

Battery

Rechargeable Ni-MH Battery Pack

Features

Features

Ultra Slim & Light Design

3.0" Flip Up and Touch Screen

Wide Lens for Selfie

9mm Pancake Lens

1/16000sec Shutter Speed

NFC Photo Beam

MobileLink

AutoShare

Remote Viewfinder Pro

Full HD Video Recording (1080@30p H.264)

ISO 100~25600

NX M Mount for NX Lens

Baby Monitor

Adobe Lightroom 5

Dimensions & Weight

Dimensions

2.44" x 4.35" x 0.89" (H x W x D)

Weight

0.34 lb.

Package Contents

Package Contents

NX Mini Camera Smart Compact System Camera
9-27mm lens
SEF-7A external flash
B740AU battery
Micro USB cable
Adapter
Hand Strap
Adobe Photoshop Lightroom 5
Samsung S/W CD
Quick Sales Guide (ENG/SPA)
Warranty Card, USA PRC Card
