Model

Brand

Canon

Model

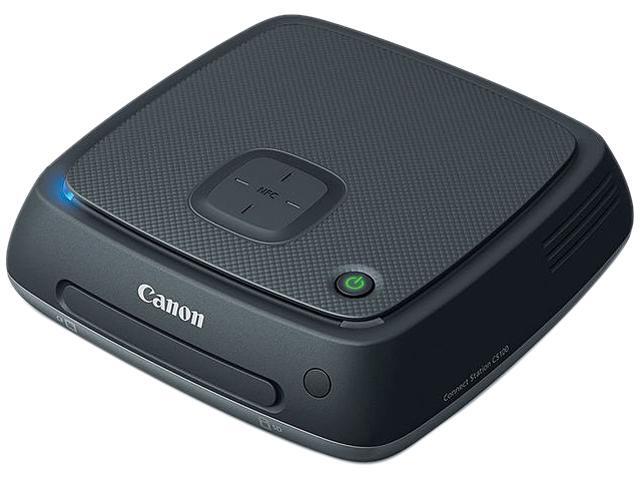

CS100

Part

9899B002

Details

Type

Accessory

Specifications

Build-in Hard Disk
Storage Capacity: 1 TB
* Since part of the disk space is used by the system, the indicated capacity is less than 1 TB.

Wireless Lan
Standard Compliance: IEEE802.11b/g/n
Transmission method: DS-SS modulation (IEEE 802.11b), OFDM modulation (IEEE 802.11g /n)
Transmission range: Approx. 15 m /49.2 ft.
* WIth no obstructions between the transmitting and reeiving antennas and no radio interference
* With an access point equipped with a high-performance antenna
Transmission frequency: 2.412GHz - 2.462GHz
Security: WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES)

Interface
USB:Hi-Speed USB(USB 2.0)
HDMI OUT: Type A, CEC-compatible
Card slot: CF card slot, SD memory card slot
* Supported cards: CF card (Type I or II compatible), SD memory card, SDHC memory card, SDXC memory card (UHS-I not compatible)
* The CFast card is not supported.

Dimensions and Weight
Dimensions (W x H x D): Approx. 155.60 x 51.10 x 155.60 mm / 6.13" x 2.01" x 6.13".
Weight: Approx. 570 g / 20.11 oz. (Body only)

Operation Environment
Working temperature range and humidity: 0 degrees C - 35 degrees C / 32 degrees F - 95 degrees F, 85% or less

Power Consumption
During operation/standby: Approx. 10W / Approx. 9.5W

Remote Controller
Remote Controller CS-RC1
Dimensions (W x H x D): Approx. 41.30 x 15.10 x 125.5mm / 1.63" x 0.59" x 4.94".
Weight: Approx. 42 g / 1.48 oz. (Body only)


Power Adapter
Compact Power Adapter CA-PS00
Rated input: 100 - 240 V AC (50/60 Hz)
DC cord: Approx. 1.8 m / 5.9 ft.
Working temperature range and humidity: 0 degrees C - 40 degrees C / 32 degrees F - 104 degrees F, 85% or less
Dimensions (W x H x D): Approx. 112.00 x 29.00 x 45.00 mm / 4.40" x 1.10" x 1.80". (excluding power cord)
Weight: Approx. 185 g /6.5 oz. (excluding power cord)

Features

Features

Provides up to 1TB of storage exclusively for photos and videos.

Simply tap the CS100 device with your compatible camera or camcorder to automatically import new photos and videos using the NFC and Wi-Fi connectivity. Additional connection options include SD/CF card slots and USB for importing photos and videos from compatible devices.

View photos and videos in clear, crisp Full HD on an HDTV via a convenient HDMI cable connection and using the included Remote Control CS-RC1.

Easily manage and sort photos and videos by albums, date or device name with user-friendly menu.

Wireless printing capability with compatible PIXMA/SELPHY printers.

View or upload/download photos from your compatible smartphone, tablet or PC using a web browser.

Send or receive photos and videos with another Canon Connect Station CS100 device and upload them to SNS through CANON iMAGE GATEWAY.

Supports multiple file formats including JPEG, RAW, MP4, MOV, and AVCHD.

Secure backup and restore capability via USB with an external HDD.
