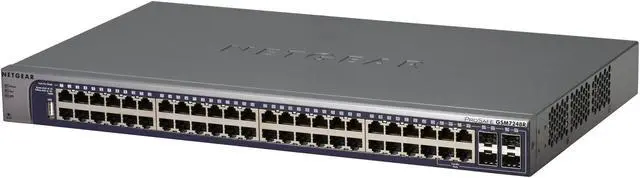

Main image of NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Alt view image 2 of 5 - NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Alt view image 3 of 5 - NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Alt view image 4 of 5 - NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Alt view image 5 of 5 - NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Shop All Netgear Inc. Products

NETGEAR GSM7248R 10/100/1000Mbps Prosafe 48-Port Feature Rich Gigabit L2 Managed Switch with Jumbo Frames Support, Single IP management, ACL, static routes, external RPS 48 x RJ45, 4 x SFP, 1 x RS-232

Name: NETGEAR GSM7248R Prosafe 48-Port Gigabit L2 Managed Switch with Static Routing
Brand: Netgear Inc.
SKU: N82E16833122221
Rating: 5 (1 reviews)

(1) Write a Review

8K MAC Address Table
max support 1.5 MB Buffer Memory
Managed

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Netgear Inc. GSM7248R

Model
Brand	NETGEAR
Model	GSM7248R

Format & Standards
Format	Rackmount
Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
Network Management Type	Managed

Ports & Interface
Primary Ports	48 x RJ45, 4 x SFP, 1 x RS-232
Primary Port Speed	10/100/1000Mbps + 1000Mbps

Data Transmission
MAC Address Table	8K
Switching Method	Store and Forward
Jumbo Frames	Jumbo frame support: up to 9K packet size
Buffer Memory	max support 1.5 MB

Details
Protocols	Layer 2 Services: IEEE 802.1Q Static VLAN (512) IEEE 802.1p Class of Service (CoS) IEEE 802.1D Spanning Tree Protocol IEEE 802.1v Protocol VLAN & Port VLAN and MAC-based VLAN IEEE 802.1 Q-in-Q IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation (LACP) IEEE 802.1x Port Access Authentication IGMP v1, v2 Snooping Support Network storm protection including broadcast, multicast and unicast traffic Static multicast filtering Ingress Rate Limit in 1Kbps increments Weighted Round Robin (WRR) queue technology Layer 3 Services: Static routing ARP
PoE	No
Stackable	No
SNMP	Yes
QoS	Yes
LACP	Yes
Layer	2
Port Mirroring	Yes
Module Support	Yes
LEDs	Per port: Speed, link, activity Per device: Power, fan, RPS status

Power Supply
Power	Power consumption: 71.5W maximum Redundant power supply input: 12V

Dimensions & Weight

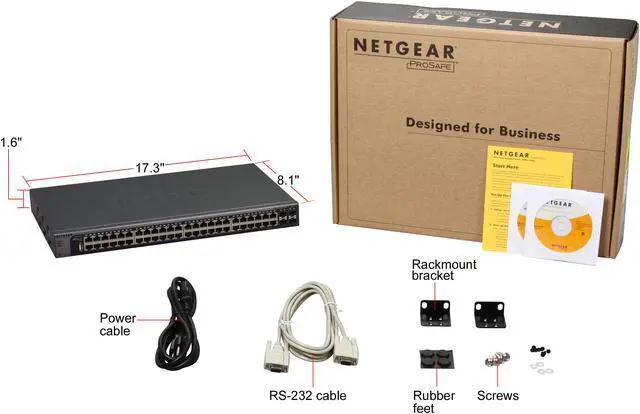

Dimensions	17.3" x 8.1" x 1.6"
Weight	9.13 lbs

Environmental
Temperature	0°C to 55°C (32°F to 131°F)
Humidity	0 - 90%, Non-condensing

Features
Features	Switch Management Specifications: SNMP v1, v2c, v3 with multiple IP addresses RFC 1157, 1902-1907 RFC 768 UDP UDP Relay RFC 854-859 Telnet RFC 951 BOOTP RFC 1213 MIB II RFC 1757 RMON groups 1,2,3, and 9 RFC 1215 SNMP Traps RFC 1493 Bridge MIB RFC 1643 Ethernet Interface MIB RFC 1534 DHCP and BOOTP interoperation RFC 2131, 2132 DHCP and BOOTP RFC 2865 RADIUS (both switch and management access) RFC 2866 RADIUS accounting Private Enterprise MIB Port mirroring support (many-to-one) RFC 2236 IGMP v2 IGMP Querier DiffServ QoS (RFC 2998) DHCP/BOOTP relay-primary and backup (RFC3046, option 82) RFC 2030 Simple Network Time Protocol (SNTP) DHCP Server GARP/GVRP SYSLOG Firmware upgrade via TFTP or HTTP Port description ACL Performance Specifications: Forwarding modes: Store-and-forward Bandwidth: 96 Gbps (non-blocking) Switch latency: 20 us for 64-byte frames (1G to 1G) Address database size: 8K media access control (MAC) addresses Number of VLANs: 512 (1-4061) Number of trunks: 16 Number of queues: 8 Number of static route: 32 Number of routed VLANs: 32 Number of ARP entries: 480 Number of ACL rules: 224 Jumbo frame support: up to 9K packet size Acoustic noise: 48.8 dB Heat Dissipation: 244.101 BTU/hr Mean time between failure (MTBF): 162,303 hours (~19 years) User Interfaces Command Line Interface (CLI) via console port (5 sessions) Web-based management via embedded HTTP server protected with Secure Sockets Layer (SSLv3) or Transport Layer Security (TLS v1) Telnet remote login (5 sessions) securable with Secure Shell (SSH v1.5, v2) For ProSafe Lifetime Warranty please see: http://www.netgear.com/warranty

Additional Information
Date First Available	January 22, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
