Model

Brand

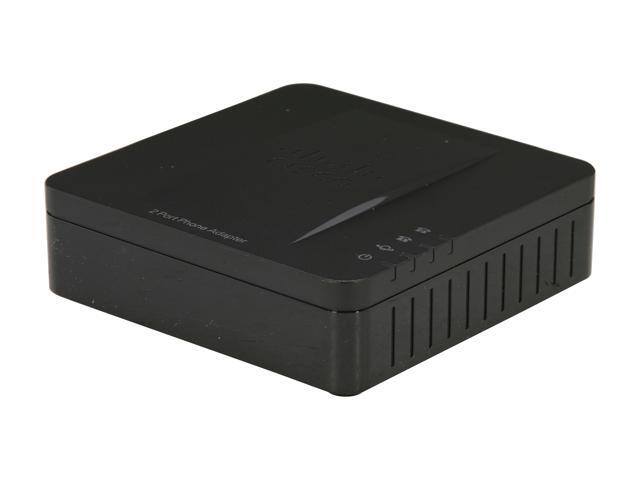

Cisco Small Business

Model

SPA112

Type

Type

Accessories

Spec

Security

Password-protected system reset to factory default
Password-protected administrator and user access authority
Provisioning, configuration, and authentication
HTTPS with factory-installed client certificate
HTTP digest: Encrypted authentication using MD5 (RFC 1321)
Up to 256-bit Advanced Encryption Standard (AES) encryption
SIP Transport Layer Security (TLS)

Ports

1 WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3)
2 RJ-11 FXS phone ports for analog circuit telephone device (tip and ring) Reset button

LEDs

Phone 1, phone 2, Internet, and power

Power

DC input voltage: 5V DC at 2.0A maximum
Power consumption: 5W
Switching type (100–240V) automatic
Power adapter: 100–240V and 50–60 Hz (26–34 VA) AC input, with 1.8m cord

Dimensions

3.98" x 3.98" x 1.10"

Weight

5.40 oz.

Temperature

0ºC to 45ºC

Humidity

10% to 90%, Non-Condensing

Specifications

Data networking:
MAC address (IEEE 802.3)
IPv4 (RFC 791) upgradeable to IPv6 (RFC 1883)
Address Resolution Protocol (ARP)
Domain Name System (DNS) A record (RFC 1706) and SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)
Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516)
Internet Control Message Protocol (ICMP) (RFC 792)
TCP (RFC 793)
User Datagram Protocol (UDP) (RFC 768)
Real Time Protocol (RTP) (RFC 1889) (RFC 1890)
Real Time Control Protocol (RTCP) (RFC 1889)
VLAN tagging (IEEE 802.1p)
Simple Network Time Protocol (SNTP) (RFC 2030)
SIP channels support for both UDP and TCP transport

Voice gateway:
SIPv2 (RFC 3261, 3262, 3263, and 3264)
SIP proxy redundancy: Dynamic through use of DNS SRV A records
Reregistration with primary SIP proxy server
SIP support in network address translation (NAT) networks (including Serial Tunnel [STUN])
Highly secure (encrypted) calling using Secure RTP (SRTP)
Codec name assignment
G.711 (A-law and µ-law)
G.726 (32 kbps)
G.729 A
Dynamic payload
Adjustable audio frames per packet
Dual-tone multifrequency (DTMF): In-band and out-of-band (RFC 2833) (SIP information)

Voice features:
Independent configurable dial plans with interdigit timers and IP dialing (1 per port)
Call progress tone generation
Jitter buffer: Adaptive
Frame loss concealment
Full-duplex audio
Echo cancellation (G.165 and G.168)
Voice activity detection (VAD)
Silence suppression
Comfort noise generation (CNG)
Attenuation and gain adjustments
Flash hook timer
Message waiting indicator (MWI) tones
Visual messaging waiting indicator (VMWI) using frequency shift keying (FSK)
Polarity control
Hook flash event signaling
Caller ID generation (name and number): Bellcore, DTMF, and European Telecommunications Standards
Institute (ETSI)
Streaming audio server: Up to 10 sessions
Music on hold
Call waiting, call waiting and caller ID...
*More information. Please visit Cisco website.

Features

Features

Affordable and Feature-Rich Voice over IP (VoIP)

Toll-quality voice and carrier-class feature support

Large-scale deployment and management

Outstanding security: The Cisco SPA112 supports highly secure, encryption-based methods for communication, provisioning, and servicing.

Compact size: Designed for small spaces, the Cisco SPA112 can be installed as a desktop unit or mounted on a wall.

Comprehensive feature set:
The standards-based Cisco SPA112 is compatible with Internet VoIP provider features such as caller ID, call waiting, voicemail, call forwarding, distinctive ring, and much more to provide a complete, affordable, and highly reliable solution for high-quality VoIP.

Easy installation and changes: The web-based configuration utility enables quick deployment and easy changes.
