TRENDnet TPE-224WS 10/100Mbps + 1000Mbps Gigabit Web Smart PoE Switch

(2) |

Write a Review

24 x 10/100Mbps Auto-MDIX PoE Ports
4 x 10/100/1000Mbps Auto-MDIX Gigabit Ports
2 x 1000Base-SX/LX Mini GBIC ports for optional Mini-GBIC modules(share with port 25,26)
8K MAC Address Table
1MB

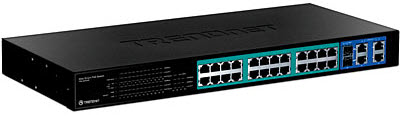

TPE-224WS 24-Port 10/100Mbps Web Smart PoE
Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots

The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a 12.8Gbps switching capacity with Power over Ethernet (PoE) technology and managed layer 2 features at a reduced cost.

Support for SNMP v1, 802.1x, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provide a cost effective, scalable and secure backbone PoE switch solution for SMB networks.

Power over Ethernet (PoE) technology reduces equipment and installation costs by delivering data and power over existing Ethernet cables. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

Overview – TPE-224WS

Reduces equipment cost by delivering data and power over existing network cables

24 x PoE 10/100Mbps ports, 4 x Gigabit Auto-MDIX ports and 2 x shared Mini-GBIC slots

12.8Gbps switching capacity with SNMP v1, 802.1X and STP support

Features 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring

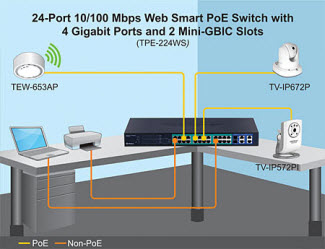

Networking Solution

Standards:

IEEE 802.3af Power over Ethernet
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000base-T
IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.1X Authentication
SNMP v1

Network Media:

Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
PoE: 4-pair UTP Cat. 5, 5e up to 100m

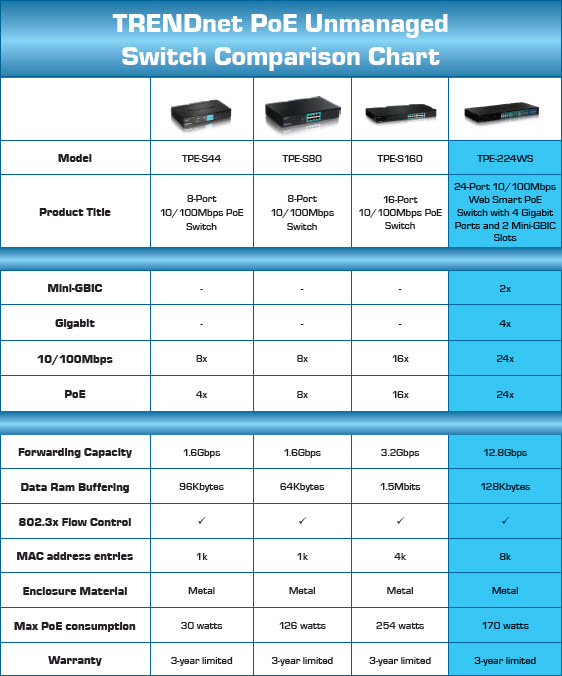

TRENDnet Fast Ethernet Switch Comparison Chart

Package Contents:

TPE-224WS

Multi-Language Quick Installation Guide

CD-ROM (Utility & User's Guide)

Power cord

Rackmount kit

Learn more about the TRENDnet TPE-224WS

Model

Brand: TRENDnet

Model: TPE-224WS

Spec

Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab

Ports: 24 x 10/100Mbps Auto-MDIX PoE Ports
4 x 10/100/1000Mbps Auto-MDIX Gigabit Ports
2 x 1000Base-SX/LX Mini GBIC ports for optional Mini-GBIC modules(share with port 25,26)

Speed: 10/100Mbps + 1000Mbps

MAC Address Table: 8K

Buffer Memory: 1MB

Switching Method: Store and Forward

Protocols: CSMA/CD

Topology: Star

LEDs: Per Unit: Power, System
Per Port: Link/Activity, Speed
PoE: PoE Status

VLAN Support: Yes

Power: 100~240VAC, 50/60Hz

Dimensions: 17.3" x 12.0" x 1.7"

Weight: 9.75 lbs.

Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Humidity: 10% - 90%, Non-condensing

Features

Features: IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
Supports PoE Power up to 15.4 watts for each PoE port
Supports PoE Power maximum up to 170 watts for all PoE port
Supports PoE Powered Device(PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
Extensive Diagnostic LED's on the Front Panel
Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap)
Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode, and Flow Control
Easy configuration via Web browser
Standard 19" (1U) Rack-Mount size (kit included)

Packaging

Package Contents: TPE-224WS
Quick Installation Guide
Power Cord
Resource Disk
Other Accessories

Quick Info

Manufacturer Contact Info

Customer Reviews of the TRENDnet TPE-224WS

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (2) 100% (2) 0% (0) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Bert 1/25/2012 7:51:53 AM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 5/5Great switch Pros: Purchased this switch to enable migration from fast ethernet to gigabit for PCs that have gigabit adapters. Good look and feel (steel case) and easy setup. Gigabit works flawlessly and greatly improves high-resolution medical imaging solution running across standard office network. Cons: none as of yet! Other Thoughts: Have used many various TrendNet networking products with no problems. Very low-cost options in most cases, enabling "Try it. If it doesn't work, you haven't lost much" mentality. (You can always pay more for something else!) Did you find this review helpful? Thanks for the valuable feedback you provided!
N/A 10/2/2010 5:44:27 PM Tech Level: 5/5 Ownership: 5/5 Verified Owner	Rating: 5/5Seriously awesome switch Pros: Inexpensive, great value. Bulletproof Cons: Shared ports a bit confusing Other Thoughts: This switch blows away comparable switches costing 3 times as much. Bought 4 of these now. Never an issue Did you find this review helpful? Thanks for the valuable feedback you provided!
