TRENDnet TPE-S44 Unmanaged 10/100Mbps Switch

(22) |

Write a Review

4 x 10/100Mbps Auto-MDIX POE Ports (1~4)
4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8)
Unmanaged

Reduces equipment cost by delivering data and power over existing network cables
4 PoE and 4 standard 10/100Mbps ports
Flow Control for Full-Duplex mode

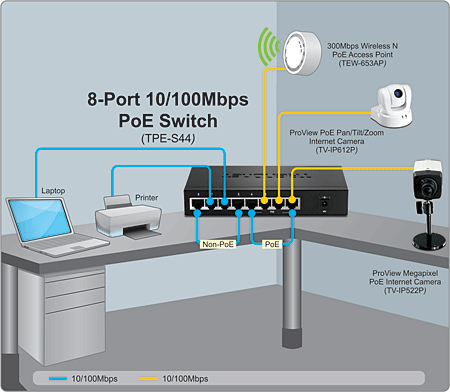

TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
Built-in 4 PoE Ports (Port 1 ~ Port 4)
Supports PoE Power Maximum 15.4 watts for each POE port
Supports PoE Powered Device (PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
Store and Forward Switching Method
96Kbytes RAM Data Buffer and 1K entries MAC Address Table
Extensive Diagnostic LED's on the Front Panel
IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
3-year limited warranty

TPE-S44
Multi-Language Quick Installation Guide
Power Adapter (48V DC, 0.8A)

Learn more about the TRENDnet TPE-S44

Model

Brand: TRENDnet

Model: TPE-S44

Spec

Switch Type: External

Standards: IEEE802.3, IEEE802.3u, IEEE802.3af

Network Management Type: Unmanaged

Jumbo Frames: No

Ports: 4 x 10/100Mbps Auto-MDIX POE Ports (1~4)
4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8)

Speed: 10/100Mbps

Switching Method: Store and Forward

Protocols: CSMA/CD

PoE: Yes

Stackable: No

SNMP: No

QoS: No

LACP: No

Layer: 2

Port Mirroring: No

Module Support: No

Cabling: 10Mbps: Cat 3,4,5 Unshielded Cable
100Mbps: Cat 5, 5E, 6 Unshielded Cable

Topology: Star

LEDs: Per Unit: Power, Power MAX
Per Port: Link/Activity, Speed
PoE: PoE Status, Link/Activity, Speed

Power: 48V DC 0.8A External Power Adapter
6.3 watts max (no PD Device connected)
36.3 watts max (with 30w PoE Device connected)

Dimensions: 6.7" x 3.7" x 1.1"

Weight: 13.8 oz.

Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Humidity: 10% - 90%, Non-condensing

Features

Features: Power over Ethernet:
Up to 15.4 watts per Port; PD classification Identify
PoE Over Current Protection; PoE Circuit Sorting Protection
PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power

IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
Built-in 4 PoE Ports (Port 1 ~ Port 4)
Supports PoE Power Maximum 15.4 watts for each POE port
Supports PoE Powered Device(PD) classification identify
Full Wire-Speed Non-Blocking Reception and Transmission
96Kbytes RAM Data Buffer and 1K entries MAC Address Table
Extensive Diagnostic LED’s on the Front Panel
IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode

Packaging

Package Contents: TPE-S44
USB Extension Cable
Driver Disk

Manufacturer Warranty

Parts: 1 year limited

Labor: 1 year limited

Quick Info

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year

Manufacturer Contact Info

Customer Reviews of the TRENDnet TPE-S44

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (1) All Reviews (22) 91% (20) 5% (1) 0% (0) 0% (0) 5% (1) Verified Owners Video Reviews Mfr. Responses keyword Go page SubmitTopPaginationForm of 3 previousTopPaginationForm\| nextTopPaginationForm
PC_Sniper 4/30/2013 1:55:56 PM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 1/5Not so great Pros: 4 PoE Ports which are still working Cons: 4 standard ports...2 have failed. Other Thoughts: Purchased this for a small church that needs all the ports working. Purchased from Newegg on 9/26/2012. I used to like TrendNet products but as of the last 2 years or so...it seems like all their products are being dumbed down or built just way to cheaply. Manufacturer Response: Dear Valued Customer, Please accept our deepest apologies for any inconvenience this has caused you. We believe your device qualifies a full replacement under TRENDnet's warranty program. Please contact us at sales@trendnet.com with "Newegg TPE-S44 Product Review" in the subject line and someone will assist you to go through the RMA process. We look forward to hearing from you directly and restoring your faith in TRENDnet products. Thanks, TRENDnet Sales Team Did you find this review helpful? Thanks for the valuable feedback you provided!
TechnoMage 11/25/2012 1:44:35 PM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5Great little POE switch Pros: Great little PoE switch. I using this switch to run three Vivotek IP8332 cameras. Cons: None Other Thoughts: I've become a huge fan of PoE. Being able to just run a network cable has made it much easier to put the IP security cameras where I wanted them. Not just where they would be close to power. Did you find this review helpful? Thanks for the valuable feedback you provided!
Al_s14 5/24/2012 8:17:02 AM Tech Level: 4/5 Ownership: 4/5 Verified Owner	Rating: 5/5Perfect Pros: I use it to power up my Vivotek IP8332. Works perfectly. Not one issue yet. Setup was painless and simple. Cons: None. Did you find this review helpful? Thanks for the valuable feedback you provided!
Alan the computer gu 5/16/2012 10:50:12 AM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5Worked like a charm Pros: Cheap, metal case, good power. Cons: It's not free. Did you find this review helpful? Thanks for the valuable feedback you provided!
RF 4/4/2012 4:44:56 PM Tech Level: 5/5 Ownership: 5/5 Verified Owner	Rating: 5/5Truly awesome Pros: Well built, stable power, compact design, and flawless operation Cons: Can't think of any Other Thoughts: I wish someone sold 4- or 8-port PoE midspans, specially without tiny, noisy fans. Until that happens, this little unit is your best friend for affordable PoE deployment in small installations. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
Intimnasc 1/25/2012 6:18:53 AM Tech Level: 4/5 Ownership: 4/5 Verified Owner	Rating: 5/5 Pros: This PoE switch has been perfect for my needs. I built a camera system that6 needed PoE and I shopped for some time for somethuing reliable and sturdy because of the environment I installed this in and am very happy. This switch is installed in my garage in Texas where the temperatures often get over 110-120 degrees in the garage. I am using 3 of the 4 powered ports to run 3 security cameras in my house and all has been performing perfectly. Cons: None I can think of. Other Thoughts: I am so pleased with this product I have sold 2 more to friends of mine thast loved my camera system and they too are building identical camera systems. 2 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
N/A 11/4/2011 3:40:06 PM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 5/5Works as advertised Pros: good deal for the money Cons: can not be wall mounted Did you find this review helpful? Thanks for the valuable feedback you provided!
N/A 10/11/2011 2:46:06 AM Tech Level: 5/5 Ownership: 2/5 Verified Owner	Rating: 5/5Excellent value - small footprint and quiet Pros: Inexpensive, small footprint, quiet, 4 PoE ports, quality Cons: Only 10/100 - not gb Other Thoughts: Worked instantly connecting PoE security cameras. Replaced a D-Link that had the loudest fan ever. 0 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
rpuffd 6/22/2011 10:03:06 AM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 5/5Great bang for the buck Pros: Metal case, great vaue for the money Cons: None so far. Other Thoughts: I have 2 of these, one in a barn and one in the basement powering surveillance cams. Never had one problem yet. I was skeptical at first, never used TrendNet before but they have met my expectations. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
Special K 3/24/2011 11:04:41 AM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/54 POE ports strong Pros: Running four "7w Max" Axis PoE cameras all streaming video over network. 7X4 is 28w, and this device can support up to 30w, so works perfectly for my application. The PoE max isn't flashing with all 4 cameras on it. Cons: wish it looked a little more serious, the funky blue color is bad Other Thoughts: TRENDnet must really be trying to break this network market, with their cheap prices and high quality. Did you find this review helpful? Thanks for the valuable feedback you provided!
