Item#: N82E16833156266

TRENDnet TE100-S80g GREENnet Switch

  • 8 x RJ45
  • 1K MAC Address Table
  • 768Kbits Buffer Memory
  • Pin It
  • Email this page
ICON Loading...


  • GREENnet technology reduces power consumption by up to 40%
  • 8 x 10/100Mbps Auto-Negotiation RJ-45ports
  • Build an energy efficient network in minutes
  • Plug and Play this sturdy metal switch


The compact 8-Port 10/100Mbps GREENnet Switch (model TE100-S80g) provides improved bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 40%.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management required.

Boost your office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.



  • Product Tour
    Intro to GreenNet
  • Product Tour
    Product Spotlight



  • 8 x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet Ports

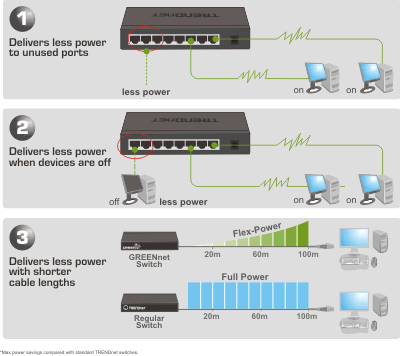

  • GREENnet technology reduces power consumption when:
    1. Ethernet port is not in use
    2. Connected device is turned off
    3. Connected device is in power-saving mode
    4. Based on Ethernet cable length
  • Compliant with IEEE 802.3/IEEE 802.3u standards
  • 1.6Gbps switching fabric
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x flow control support
  • Provides 1k MAC address entries
  • Compliant with Windows, Linux, and Mac Operating Systems
  • Sturdy metal housing
  • Diagnostic LEDs
  • Plug & Play installation
  • 3-year limited warranty







  • TEG-S80g
  • Multi-Language Quick Installation Guide


















Learn more about the TRENDnet TE100-S80g

Model

Brand
TRENDnet
Model
TE100-S80g

Spec

Standards
IEEE802.3, IEEE802.3u, IEEE 802.3x
Ports
8 x RJ45
MAC Address Table
1K
Buffer Memory
768Kbits
Switching Method
Store and Forward
Protocols
CSMA/CD
Topology
Star
LEDs
Power, Link/ACT, 100Mbps
Power
7.5V DC, 1A external power adapter
Dimensions
5.35" x 0.98" x 2.76"
Weight
9.2 oz.
Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
10% - 90%, Non-condensing

Features

Features
Compliant with Windows, Linux, and Mac Operating Systems
Sturdy metal housing
Diagnostic LEDs
Plug & Play installation

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the TRENDnet TE100-S80g

Do you own this product? Write a Review

Filter Results

Go
  • Onlooker
  • 2/2/2013 10:52:29 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsPower Consumption

Pros: Wall mountable, *power efficient(0W will kill-a-watt, so it's less than the amount it registers(<2W).

$6.99 each; free shipping. I went to buy more, but price went back up :( ; I don't think pricing should be left out of reviews! It helps others know what prices to watch for and not get hosed.

Cons: High REPORTED failure rate, short warranty(adding evidence to that).

Other Thoughts: I've read lots of reviews with high failure rates, and I've not owned long enough to say, so 4 out of 5 Stars for now.

The same manufacturer of the AC adapter seems to supply netgear with their adapters. Nice similar metal case also, hmm I wonder if these are manufactured like laptops are these days where some 'unknown' company manufactures devices for many different brands.. IE: netgear, trendnet ultimately come out of same factory/assembly line.

Did you find this review helpful? Yes No

  • SmartJ
  • 1/13/2013 9:11:51 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat little thing

Pros: The Ethernet outlets in my apartment had no switch to connect to, so this was the perfect box to connect my internet hub in all the rooms. I can stream HD from my computer to my PS3 no problem, even though it is not a gibabit ethernet device.

Cons: None yet; it is doing what it is supposed to do.

Did you find this review helpful? Yes No

  • Serenity
  • 8/31/2012 6:40:04 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Got two of these when there was a nice discount on them. Does exactly as advertised.

Found out it can take a beating too. I wasn't paying attention and tugged on the wrong cable when I was messing with stuff under the desk. Flung it into the wall, hits a solid wood footstool on the way down, before landing on the concrete floor. Not a scratch on it, still worked perfectly!

Cons: I didn't buy more of these?

Did you find this review helpful? Yes No

  • N/A
  • 8/9/2012 4:00:45 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsWorked for a month, then FAILED!

Pros: Works for up to a month

Cons: Does NOT work after a month. Quality Control issue most likely. Maybe I'll roll the dice and hope for a better one as a warranty replacement.

Did you find this review helpful? Yes No

  • flippedflop
  • 7/3/2012 11:41:26 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

4 out of 5 eggsGood switch with high failure rate

Pros: Bought three of these over time. The switch performed well with decent throughput in a home network environment. One unit is still active on my network.

Cons: The units experienced a high failure rate. With two units operating one unit had an incorrect front display. Plug the cable into port 1, port 3 link would light up. The same for port 4,5,6. Port 7 & 8 showed up no where. Unit was removed and a spare unit put in its place. Spare power led would blink but not connect. No ports would light up with link or traffic. DOA

Other Thoughts: This unit has a good rating. I am satisfied with the performance of one unit. How did I end up with a 67% failure rate?

Did you find this review helpful? Yes No

  • bomb1946
  • 4/20/2012 7:15:09 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsI like it

Pros: It works. Not much to it. Just plug it in and you're set. I really liked the small form factor.

Cons: none

Other Thoughts: I didn't take the size in to consideration when I purchased, and when i received it and realized it was half the size of average etherNet switch i loved it because it takes less space on my (already cluttered) desk.

Did you find this review helpful? Yes No

  • skinnyJM
  • 4/6/2012 5:35:23 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsDefective product

Pros: Newegg price and free shipping. (1 egg)

Cons: Stopped working after less than 12 hours, not days, not weeks, not years, but HOURS. (0 eggs)

Other Thoughts: Got it, plugged in ethernet cables, plugged in AC adapter. Everything working. Less than 12 HOURS later, power light still on, but no port lights on. Tested with different ports and different router, same result, power on but nobody home. Only paid $15 (Newegg promo code), so not worth cost of sending back. First and last TRENDnet purchase.

Manufacturer Response:

Valued Customer,

We are sorry for any inconvenience this may have caused you. We believe your product is still under warranty and would qualify for a full replacement. Please contact us at sales@trendnet.com, reference "New Egg product review" and someone will contact you immediately to expedite the support and replacement process. We look forward to working with you directly and restoring your faith in TRENDnet products.

Warmest regards,

TRENDnet Sales Team

Did you find this review helpful? Yes No

  • N/A
  • 2/20/2012 4:23:58 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAmazing unmanaged switch

Pros: This works exactly like an unmanaged switch should

Cons: None

Other Thoughts: It's basic and amazing. If you want to screw with VLANs, don't look here.

Did you find this review helpful? Yes No

  • N/A
  • 1/20/2012 10:31:46 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Switch

Pros: Worked right out of the box. Small. Low power.

Cons: None

Did you find this review helpful? Yes No

  • Borich
  • 1/9/2012 6:14:30 AM
  • Tech Level: Low
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsThat Nice

Pros: It make a pretty green light flash nice.

Cons: It not make me any smart.

3 out of 7 people found this review helpful. Did you? Yes No
