Item#: N82E16833156389

TRENDnet TPL-307E2K Powerline AV Adapter Kit with Bonus Outlet Up to 200Mbps

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • IEEE 1901, HomePlug AV, IEEE802.3/3u/3x
  • 1 x 10/100Mbps RJ-45
  • Up to 200Mbps

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

TPL-307E2K 200Mbps Powerline AV Adapter Kit with Bonus Outlet

TRENDnet Logo


TRENDnet's 200Mbps Powerline AV Adapter Kit with Bonus Outlet, model TPL-307E2K, and comes with everything you need to build an HD Powerline network from any electrical outlet. Connect the first adapter to your network and plug the second adapter into any outlet on your electrical system for instant high speed network access.

Never lose an electrical outlet with the built in outlet on the front of the adapters. The compact housing does not block adjacent electrical outlets. A noise filter maintains optimum connection speeds when household devices create electrical background noise.

The adapters will automatically connect with no installation required-TRENDnet recommends pressing the 'Sync' button to automatically change default encryption keys. Use up to 6 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 80%. Quality of Service technology prioritizes video, audio, and online gaming. Advanced AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.

Overview – TPL-307E2K

  • Includes two TPL-307E adapters
  • Never lose an electrical outlet with the built in socket
  • Compact form factor does not block adjacent electrical outlets
  • Advanced noise filter boosts performance
  • Power Save mode reduces electrical consumption by 80%


Networking Solution

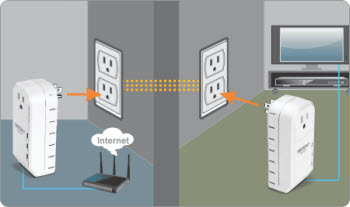

TPL-307E2K Diagram

Standards:

  • IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
  • 1 x 10/100 Mbps Auto-MDIX RJ-45 port
  • 2 ~ 28 MHz

Features:

  • Up to 200 Mbps
  • Up to 6 (max.)
  • Up to 4 Overlapping Powerline Networks (per electrical system)
TPL-307E2K Image

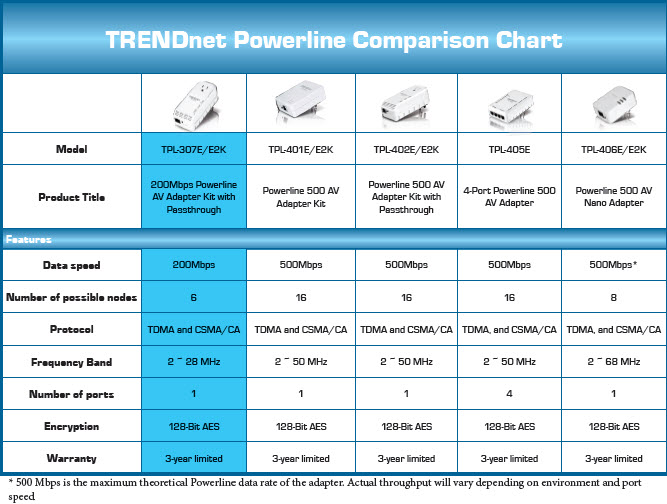

TRENDnet Powerline Comparison Chart

Package Contents:

  • 2 x TPL-307E
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • 2 x network cables (1.5 m/5 ft.)
TPL-307E2K Box

Introduction to Powerline Networking:




Learn more about the TRENDnet TPL-307E2K

Model

|
Brand
TRENDnet
Model
TPL-307E2K

Details

|
Standards
IEEE 1901, HomePlug AV, IEEE802.3/3u/3x
Encryption
128-bit AES Encryption
Ports
1 x 10/100Mbps RJ-45
LEDs
Power (PWR)
Powerline (PL) with Connection Quality Indication:
-Best (Green)
-Better (Amber)
-Good (Red)
-No connection (Off)
Ethernet (ETH) Connection:
-Solid
-Blinking
-Off
Certifications
CE, FCC, HomePlug AV
Powerline Speeds
Up to 200Mbps
Connection Type
RJ45
Connection Speeds
10/100M
Kit Type
Double
Frequency Band
2 ~ 28 MHz
Power Supply
100~240VAC, 50~60Hz
System Requirement
Utility OS Compatibility: Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)

Environmental

|
Temperature
0°C ~ 40°C

Features

|
Features
Interface:
1 x 10/100Mbps Auto-MDIX RJ-45 Port
1 x electrical power socket with noise filtering (12A max. load)

Modulation: OFDM Symbol modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO carrier

Protocols: TDMA and CSMA/CA

Nodes: Up to 6 (max.)

Overlapping Powerline Networks Supported: Up to 4 (per electrical system)

Coverage: Up to 300 m (984 ft.)

Buttons: Sync, Reset

Consumption:
Active mode: 3 Watts (max.)
Standby mode: 0.6 Watts (max.)

Includes two TPL-307E adapters

Never lose an electrical outlet with the built in socket

Compact form factor does not block adjacent outlets

Advanced noise filter boosts performance

Power Save mode reduces electrical consumption by 80%.

Dimensions & Weight

|
Dimensions
4.8" x 2.2" x 2.4" per unit
Weight
Total Weight: 294 g (10.4 oz) / Per Unit Weight: 147 g (5.2 oz)

Packaging

|
Package Contents
2 x TPL-307E
Multi-Language Quick Installation Guide
CD-ROM (Utility & User's Guide)
2 x network cables (1.5 m / 5 ft.)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 45 days
    • Return for replacement within: 1 year
  • This item is covered by Newegg.com's 45/1 Return Policy.
