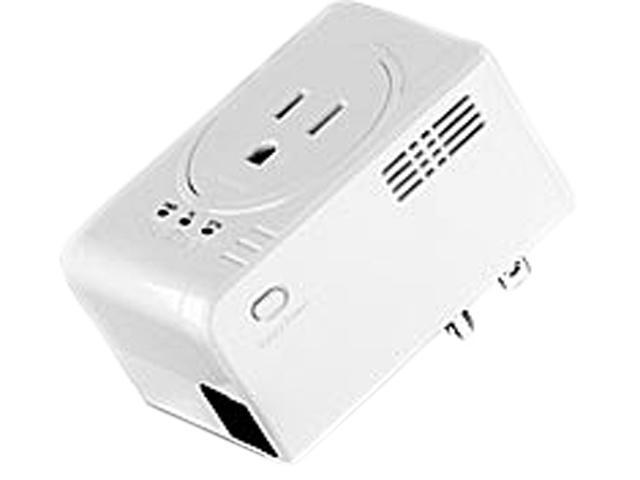

TRENDnet TPL-407E Powerline 500 AV Nano Adapter with Built-In Outlet Up to 500Mbps

(1)

Write a Review

Sold and Shipped by Newegg

IEEE 1901, HomePlug AV, IEEE 802.3/3u
1 x 10/100 Mbps Auto-MDIX RJ-45 port
Up to 500Mbps

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The Powerline 500 AV Nano Adapter with Built-In Outlet, model TPL-407E, uses existing electrical lines to create a secure high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space and offers an additional electrical outlet, built into the front of the housing to power computers and other devices. A noise filter maintains optimum connection speeds when devices such as computers, televisions, and gaming consoles create electrical background noise.

Learn more about the TRENDnet TPL-407E

Model

Brand: TRENDnet

Model: TPL-407E

Details

Standards: IEEE 1901, HomePlug AV, IEEE 802.3/3u

Encryption: 128-bit AES Encryption

Ports: 1 x 10/100 Mbps Auto-MDIX RJ-45 port

LEDs: Power (PWR)
Powerline (PL) Connection
Ethernet (ETH) Connection

Certifications: CE, FCC

Powerline Speeds: Up to 500Mbps

Connection Type: RJ45

Connection Speeds: 10/100M

Kit Type: Single

Frequency Band: 2 ~ 68 MHz

Power Supply: 100~250V AC, 50~60Hz

System Requirement: OS: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

Environmental

Temperature: 0°C ~ 40°C

Features

Features: Modulation: OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier

Protocol: TDMA and CSMA/CA

Nodes: Up to 8 (max.)

Overlapping Powerline Networks: Up to 4 (per electrical system)

Coverage: Up to 300 m (984 ft.)

Buttons: Sync (3 sec.) / Reset (20 sec.)

Two adapters required to start a network (only one adapter included)

500 Mbps networking over existing electrical lines

Never lose an electrical outlet with the built in socket

Compact form factor saves space

Up to 80% power savings.

Dimensions & Weight

Dimensions: 3.07" x 2.17" x 2.32"

Weight: 3.6 oz.

Packaging

Package Contents: TPL-407E
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Network cable (1.5 m / 5 ft.)

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.trendnet.com|
Support Phone: 1-866-845-3673
Support Email: sales@trendnet.com|
Support Website|
View other products from TRENDnet

Customer Reviews of the TRENDnet TPL-407E

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 0% (0) 100% (1) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
ella c. 9/22/2013 10:25:24 AM Ownership: 4/5 Verified Owner	Rating: 4/5works and has plug passthru This review is from: TRENDnet TPL-407E Powerline 500 AV Nano Adapter with Built-In Outlet Up to 500Mbps Pros: Works. Has a plug passthru which was essential as the room it went into only has one outlet. Easy to setup. Works well with switch. Cons: Expensive as you'll need to buy at least two of these to get stated. I didn't realize this and had to buy a second one. Speed is acceptable. Other Thoughts: Remember you'll need at least two of these to get started and it is not available as a kit. I used a wireless router/repeater and the ethernet works fine but wifi can be a pain trying to stream Netflix (however that could be the router/repeater). Make sure you need the extra outlet as these cost twice as much as a kit of the same speed workout the outlet. Did you find this review helpful? Thanks for the valuable feedback you provided!

Filter Results

0% (0)
100% (1)
0% (0)
0% (0)
0% (0)

Verified Owners
Video Reviews
Mfr. Responses

ella c.
9/22/2013 10:25:24 AM
Ownership: 4/5
Verified Owner

Rating: 4/5works and has plug passthru

Pros: Works. Has a plug passthru which was essential as the room it went into only has one outlet. Easy to setup. Works well with switch.

Cons: Expensive as you'll need to buy at least two of these to get stated. I didn't realize this and had to buy a second one. Speed is acceptable.

Other Thoughts: Remember you'll need at least two of these to get started and it is not available as a kit. I used a wireless router/repeater and the ethernet works fine but wifi can be a pain trying to stream Netflix (however that could be the router/repeater). Make sure you need the extra outlet as these cost twice as much as a kit of the same speed workout the outlet.

Did you find this review helpful? Yes
