Item#: 9SIA24G1727610

TRENDnet TEW-753DAP N600 Dual Band PoE Gigabit Access Point

  • Up to 600Mbps Wireless Data Rates
  • IEEE 802.11a/b/g/n, IEEE 802.3/3u/3ab, IEEE 802.3af/az
  • Ethernet Port
  • Pin It
  • Email this page
ICON Loading...



TEW-753DAP

N600 Dual Band PoE Access Point
TEW-753DAP (Version v1.0R)



  • Concurrent dual band 300Mbps wireless N
  • Create up to eight SSIDs per band
  • Define Access Point, WDS AP, WDS Bridge, or Repeater modes
  • No need to install the device near a power source with PoE installation
  • Manage traffic shaping per SSID
  • Off-white low profile housing blends into environment





OVERVIEW

TRENDnet’s N600 Dual Band PoE Access Point, model TEW-753DAP, is a feature rich business class access point with proven concurrent 300Mbps dual band wireless technology. A variety of installation scenarios are supported with Access Point, WDS AP, WDS Bridge, and Repeater modes. Save installation time and costs with PoE.

TEW-753DAPTEW-753DAP

Installation
icon

Low Profile
Off white low profile smoke detector shape blends into most environments

icon

Power over Ethernet (PoE)
Save installation time and costs with a PoE (Optional power port for non-PoE installations)


Performance
icon

Concurrent Dual Band
Proven concurrent 300Mbps dual band wireless N

icon

Gigabit Port
Gigabit port maintains high performance connection to network

icon

Wireless Coverage
Increased coverage with MIMO technology

icon

Backward Compatible
Compatible older wireless G devices


Security
icon

Encrypted Wireless
Support for encryption up to WPA2

Management
icon

Operation Modes
Independently set each band to Access Point, WDS AP, WDS Bridge, or Repeater mode

icon

IPv6
IPv6 support

icon

AP Scan
Integrated wireless scan function helps optimize wireless setup

icon

SSIDs
Up to eight (8) SSIDs per band (16 total) with isolation support

icon

Traffic Shaping
Allocate bandwidth to each wireless SSID

icon

System Logs
Eight system logs aid network troubleshooting

icon

SNMP
Extend network monitoring to this device with SNMP support




TPL-408E TPL-408E TPL-408E
SPECIFICATIONS

Standards

  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 + 5GHz at up to 300Mbps)

Device Interfaces

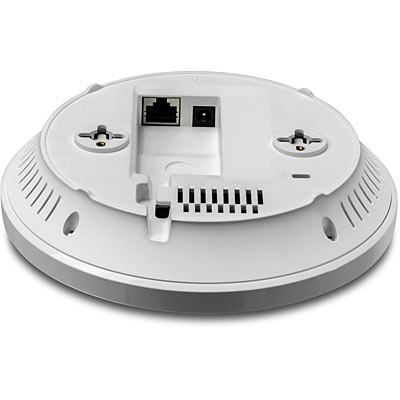

  • 1 x Gigabit PoE port
  • Optional power port
  • Mounting points

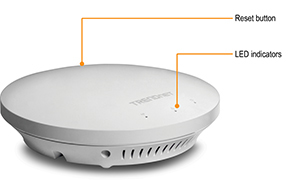

  • LED indicators

Wireless

  • Modes: AP, Repeater, WDS AP, and WDS Bridge
  • Up to 8 SSID per band: 16 total

Security

  • Wireless encryption up to WPA2
  • MAC address filtering

Special Features

  • VLAN tag support
  • SNMP v1 - 3
  • Traffic shaping
  • Disable LEDs
  • Low profile discrete housing
  • IPv6 ready
  • AP scan mode helps optimize wireless setup

Antenna Gain

  • 2.4GHz: 3dBi / 5GHz: 4dBi internal PIFA

Wireless Output Power / Receiving Sensivity

  • 802.11a: FCC/CE: 17dBm / -75dBm (typical) @ 54Mbps
  • 802.11b: FCC/CE: 20dBm / -90dBm (typical) @ 11Mbps
  • 802.11g: FCC/CE: 17dBm / -76dBm (typical) @ 54Mbps
  • 802.11n: FCC/CE: 17dBm / -69dBm (typical) @ 300Mbps 2.4GHz & 5GHz
  • 802.11n: FCC/CE: 18dBm / -70dBm (typical) @ 300Mbps 5GHz

Power

  • Input: 100 ~ 240VAC, 50 - 60Hz
  • Output: 12VDC, 1.25A
  • PoE power (with optional power adapter)
  • Consumption: 12 Watts (Max)

Operating Temperature

  • 32 - 113°F (0 - 45°C)

Operating Humidity

  • Max. 90% non-condensing

Certifications

  • CE
  • FCC

Dimensions

  • 6.5 x 1.6in. (165 x 40mm)

Weight

  • 10oz. (285g)

Warranty

  • Three-year limited

WHAT'S IN THE BOX

TPL-408E
  1. TEW-753DAP
  2. Multi-Language Quick Installation Guide
  3. CD-ROM (Utility & User's Guide)
  4. Network cable 5ft (1.5m)
  5. Power adapter (12V, 1.25A)



Warranty Information

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions






Learn more about the TRENDnet TEW-753DAP

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the TRENDnet TEW-753DAP

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Darin R.
  • 3/15/2014 2:04:35 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsOnce setup they work well

Pros: Muti-Band - Muti-SSID Many Options

Cons: Initial access to the configuration pages was more difficult than normal to get going.

Other Thoughts: Over all a solid product.
