Item#: N82E16833168065

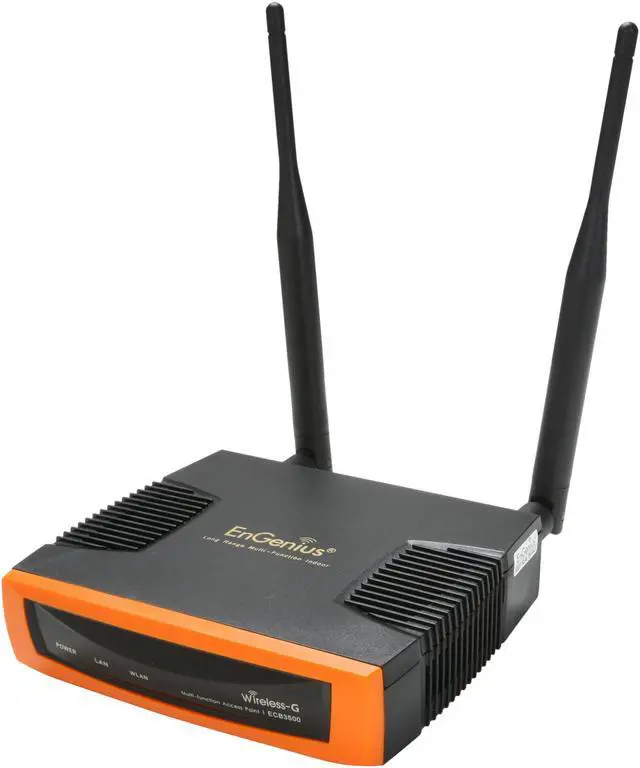

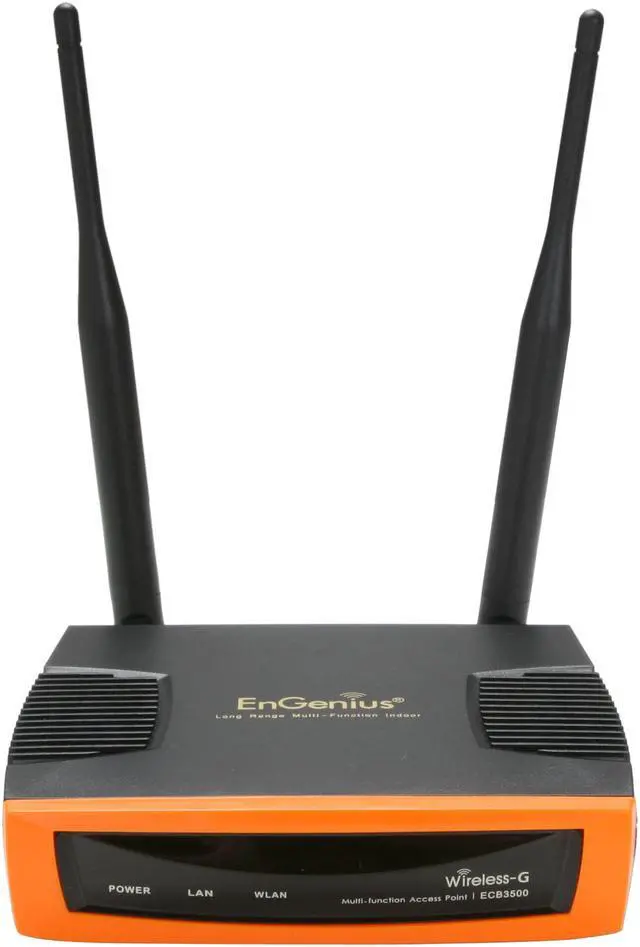

EnGenius ECB3500 Wireless Access Point/Client Bridge Long Range 802.11b/g up to 108Mbps with 5dBi external antenna / 600mW High Power for Long Range

  • Up to 108Mbps Wireless Data Rates
  • IEEE 802.11b/g
  • Ethernet Port
  • 1 x 10/100M
  • 2.4GHz - 2.484GHz
ICON Loading...

ECB3500 is a powerful and robust enterprise-level product that supports 7 multi-functions to operate in every kind of network environment.

It supports high transmit output power and high data rate, and operates in different roles of Access Point / Client Bridge / Universal Repeater / WDS AP / WDS Bridge / AP Router / Client Router. It operates seamlessly in the 2.4GHz frequency spectrum supporting 802.11b (2.4GHz 11Mbps) and SuperG high speed (2.4GHz 108Mbps) wireless standards. It also provides output power level setting, bandwidth selection, and RSSI reading to enable the best transmitting and receiving signal for wireless communication.

For security requirements, ECB3500 can encrypt all wireless transmissions by WPA2 / WPA / WEP data encryption. ECB3500 also supports 802.1x Supplicant in Client Bridge mode and 802.1x Authenticator in Access Point mode. Those are the enhanced securities in both Access Point / Client Bridge mode. MAC Filtering lets you select any stations should have access to your network. User Isolation function could protect user information between clients. ECB3500 equips with the latest security features for your network safety.

  • newegg HIGH 600mW WIRELESS POWER High-powered 600mW wireless power ensures robust signal to overcome long distances, which also offers superior WiFi coverage over leading brands.
  • newegg MULTI-FUNCTIONAL DEVICE As a flexible solution for various wireless applications, ECB3500 offers seven operation modes for different network topologies, including Access Point / Client Bridge / Repeater / AP Router / Client Router / WDS.
  • newegg MULTIPLE WIRELESS NAMES (AP MODE) ECB3500 broadcasts multiple SSID’s in one device, and permits different levels of network access (VLAN Tagging).
  • newegg DUAL HIGH GAIN DETACHABLE ANTENNA DESIGN ECB3500 features Antenna Diversity technology to enhance wireless traffic. A 5dBi antenna delivers wireless power up to 2000mW EIRP. Antenna is upgradeable to increase range and receive sensitivity.
  • newegg 802.3AF POE CAPABLE ECB3500 supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available.
  • newegg QOS TECHNOLOGY Intelligent Quality of Service (Qos) Technology facilitates bandwidth priority for VoIP, video streaming, online gaming.

Learn more about the ENGENIUS TECHNOLOGIES ECB3500

Model

Brand
EnGenius
Model
ECB3500

Spec

Standards
IEEE 802.11b/g
Device Management
Configuration:
Web-based configuration (HTTP)/Telnet
Firmware Upgrade:
Upgrade firmware via web-browser
Keep latest setting when f/w update
Wireless Data Rates
Up to 108Mbps
Security
WEP Encryption-64/128/152 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPAEnterprise (WPA-EAP using TKIP)
802.1x Authenticator (AP mode)
802.1x Supplicant-TTLS (CB mode)
Hide SSID in beacons
Multiple SSIDwith 802.1q VLAN tagging (up to 4 SSIDs)(AP mode)
MAC Filter (AP mode)
L2 isolation (AP mode)
Wireless STA (Client) connected list
Lock to AP MAC (CB mode)
WPA/WPA2
WPA
Frequency Band
2.4GHz - 2.484GHz
Channels
11 for North America
Antenna
Detachable omni antenna
TNC type; Peak Gain=5dBi (Reverse)
Transmitted Power
IEEE802.11g:
26dBm@6~24 Mbps
25dBm@36 Mbps
23dBm@48 Mbps
22dBm@54 Mbps
IEEE802.11b:
27dBm@1~11Mbps
Receiver Sensitivity
IEEE802.11g:
6Mbps@ -92dBm 54Mbps@ -74dBm
IEEE802.11b:
1Mbps@ -97dBm 11Mbps@ -89dBm
Modulation
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Interface
Ethernet Port
LEDs
Power/ Status
LAN (10/100Mbps)
WLAN (Wireless Connection)
Ports
1 x 10/100M
Power Adapter
Power Supply: 90 to 240 VDC !¨¤ 10%, 50/60 Hz (depends on different countries
Active Ethernet (Power over Ethernet, IEEE802.3af)- 48 VDC/0.375A
Device: 12V/1A
Dimensions
4.92" x 4.25" x 1.22"
Weight
0.77 lbs.
Temperature
0°C - 45°C (32°F - 113°F)
Humidity
5% - 95%, Non-Condensing

Features

Features
High 600mw Wireless Power
Ensures robust signal to overcome long distances
Offers superior WiFi coverage than leading brands
Multi-functional Device
Offers multi operation modes for different network topologies
7 Modes: Access Point/Client Bridge/Repeater/Router/Client
Router/WDS
Flexible solution for various wireless applications
Multiple Wireless Names (AP Mode)
Broadcasts multiple SSID's in one device
Permits different levels of network access (VLAN Tagging)
Dual High Gain Detachable Antenna Design
Features Antenna Diversity technology to enhance wireless traffic
5dBi antenna for wireless power up to 2000mW EIRP
Upgradeable antenna to increase range and receive sensitivity
Intelligent Quality Of Service (QOS) Technology
Facilitates bandwidth priority for VoIP, video streaming, online gaming
Power-over-ethernet (802.3af) Capable
Power and data over one single cable for convenient installation
Superg 108mbps Support
Enables high transfer speed ideal for large data payloads (with SuperG Client)

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the ENGENIUS TECHNOLOGIES ECB3500

Do you own this product? Write a Review

Filter Results

Go
  • jmay
  • 5/11/2012 12:01:26 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsGreat for G-class Wireless

Pros: Rock Solid
multiple SSIDs

Cons: only G-class

Other Thoughts: If you want 54Mb/s G-class wireless networking, this is the one. Unit is a solid performer. Never have to reboot or worry about stability. Don't be fooled by 108Mb/s (Super G-Class). If N-class

Did you find this review helpful? Yes No

  • GeekStick
  • 4/24/2012 3:00:09 PM
  • Tech Level: High
  • Ownership: more than 1 year

4 out of 5 eggsGood range.

Pros: The unit is easy to setup and has 600mW of power, I use these units in commercial buildings and can get 60-100' range when in the server room behind closed doors. Line of site I have seen up to 200 feet.

Cons: Once and a great while, every 8-12 months, I have to power cycle them. They do not do well with noisy power. Make sure you have a clean power source.

Other Thoughts: It is bright orange, and that makes it easy to tell the customer what unit needs to be power cycled.

Did you find this review helpful? Yes No

  • N/A
  • 4/16/2012 10:27:39 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsGreat prosumer device

Pros: I bought this for home use because I wanted a WAP that would allow me to map VLANS to SSIDs... not I broadcast 3 SSIDs for the various virtual networks I have configured in my home. Device works non-stop for months on end with no power cycles needed... it gets warm but has been very stable. Coverage is the best I've ever gotten from a single AP - easily better than my Apple Airport Extreme; surprising considering this is only 802.11G. Fully satisfied; would recommend.

Cons: Doesn't include PoE injector.

Did you find this review helpful? Yes No

  • Disappointed
  • 1/9/2012 2:04:46 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsThere's better things out there

Pros: High power

Cons: EnGenius Tech support warns you not to use it as a repeater

Other Thoughts: Called tech support with some general questions about setting these up as repeaters. The tech says 'we don't recommend these to be used as repeaters. You're going to have problems. Any of the other 7 modes are OK, but not as a repeater. We're thinking about taking that out of the list of modes'. Too bad their own website and box packaging says it CAN be used as a repeater. Not going waste more time to configure it then wait to see what kinds of problems crop up. Lots of better brands to choose from at Newegg.

1 out of 2 people found this review helpful. Did you? Yes No

  • ThatGuy
  • 10/17/2011 6:43:27 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Product

Pros: This little thing does exactly what it says it will do. Great at long range applications. This is the second I have bought. I first got them for work so we can program and sit in our trucks and do so. I have it housed in a tool box and converted to run off of 24vdc and 110. Well any way to say the least they get beat around a bit and sometimes sit outside in poor weather conditions and well they just work great....better than any other I have tried now buying one for home. So looking for a great product this is it. Oh yeah the range is excellent to I have been up to 300 yards away and still had good signal (line of sight of course) so thinking about it.. buy one beats netgear, dlink all that garbage hands down

Cons: It is orange

Other Thoughts: I dont mind orange that bad tho

Did you find this review helpful? Yes No

  • N/A
  • 9/27/2011 7:38:28 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAwesome Unit

Pros: This unit is Rock solid. The wireless range that you get out of this unit is great.

Cons: None

Did you find this review helpful? Yes No

  • N/A
  • 9/22/2011 7:30:10 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSignificantly better Access Point

Pros: Transmit power setting by user. Of the various home office access points I have tried (Linksys, Netgear, Belkin, Trendnet), this is the only one that offers this feature. I boosted the power to 28dbm and got instant performance improvement on my network - without any change on the client side (5 clients).

Cons: Documentation (for the non-tech user).

Other Thoughts: I bought this mainly for improving RSSI on my clients in certain corners of the house. And this AP has done the job. Has saved the hassle and costs of upgrading to wireless N network all around. I get a reliable 12-14 Mb/s connection throughout the house - and am streaming high quality video no problem.

Though slightly pricier, it is worth the extra money. Will post in a few weeks on reliability.

Did you find this review helpful? Yes No

  • N/A
  • 9/8/2011 3:23:48 PM
  • Tech Level: Somewhat Low
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsAlright

Pros: Worked great for long range router while it worked

Cons: Crapped out after a lightning storm, couldnt work as it was previously set up, couldnt reset it either. I gave up and tossed it onto Craigslist.

0 out of 3 people found this review helpful. Did you? Yes No

  • jaybyrd024
  • 9/5/2011 12:57:38 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExcellent Access Points..

Pros: Awesome wireless access points that are loaded with features, easy to configure and excellent long range capabilities.

Cons: None.

Other Thoughts: Highly recommend.

Did you find this review helpful? Yes No

  • Jerry
  • 6/27/2011 8:51:22 AM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day

1 out of 5 eggsVerry rude technical support!!!

Pros: EnGenius ECB3500 Looks like it may be a good product?

Cons: I just called technical support to ask a simple question 06-27-2011 ~11:15 am, on what I was asking My Tech Knowledge is only average but I know what I needed for information, the EnGenius technical support would not work with me on this simple question, instead he just hung up the phone, I'm glad I didn't buy this product, I thought it was what I needed but would never purchase another EnGenius product after that!!!!

Other Thoughts: I did try again to get in touch with technical support, they never picked up!!!! They must have caller ID and refuse to pick-up when they don't wont to!!!!

2 out of 9 people found this review helpful. Did you? Yes No
