Item#: N82E16833181529

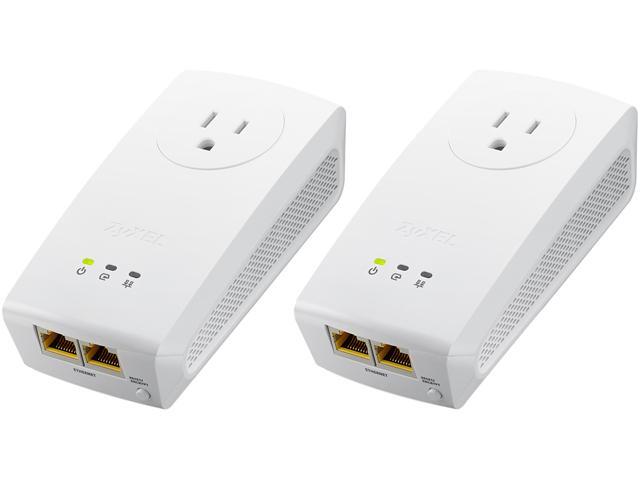

ZyXEL PLA5256KIT HomePlug AV2 SISO AV1000 Powerline Pass-Thru 2-Port Gigabit Ethernet Adapter Kit, up to 1000Mbps

  • HomePlug AV2 compliant
  • Data transfer rates up to 1000 Mbps
  • Backwards compatible with AV1
  • 2 x Gigabit ports to connect up to two devices
  • QoS
  • Plug-and-play design
  • Pass-Thru design

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ZyXEL PLA5256KIT

Model

|
Brand
ZyXEL
Model
PLA5256KIT

Details

|
Standards
Compliant with HomePlug AV2
IEEE 1901 and HomePlug AV standard
Encryption
128-bit AES encryption
LEDs
Power on / off

Powerline network quality
Green: Best
Amber: Better
Red: Good

Ethernet link / activity
Powerline Speeds
Transmit: up to 1000 Mbps
Receive: up to 1000 Mbps
Connection Type
Two 10 / 100 / 1000 Mbps RJ-45 connectors with auto MDI / MDIX support
Kit Type
Double
Frequency Band
2 MHz ~ 86 MHz
Power Supply
Power rating: 100 to 240 V AC, 50 / 60 Hz

Power consumption
Full operation: 5.5 watts max.
System Requirement
Operating system independent: Ethernet: RJ-45
Utility software OS support: Microsoft Windows XP / Vista / 7 / 8

Environmental

|
Temperature
Operating Temperature: 0 degree C to 40 degree C (32 degree F to 104 degree F)
Storage Temperature: -30 degree C to 70 degree C (-22 degree F to 158 degree F)
Humidity
Operating Humidity: 10% to 90% (Non-condensing)
Storage Humidity: 10% to 95% (Non-condensing)

Features

|
Features
High-performance 1000 Mbps for fast data transmission for multiple HD video streams

Two Gigabit LAN ports provide flexible options to connect online with your Internet compatible devices

The AC pass-thru design ensures that no power outlet goes to waste.

Quality of Service (QoS) prioritizes advanced performance of data traffic.

Compliant with IEEE 1901 and HomePlug AV technology

Multi-colored LED lights to indicate network quality

128-bit AES encryption guarantees for secure home network

Dimensions & Weight

|
Dimensions
1.65" x 4.92" x 2.56"
Weight
0.46 lb.

Packaging

|
Package Contents
Powerline adapter
Ethernet cable
Quick start guide
Warranty card
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Customer Reviews of the ZyXEL PLA5256KIT

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Keith S.
  • 2/11/2016 5:09:15 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsSide affect of using this product

Pros: The product works as advertised. If installed as mentioned you get really good speeds.

Cons: - These units get pretty warm when they are only plugged in for a few minutes.
- Caused all other units connected to it to heat up excessively and degraded how they functioned
-They are so large that they cover the other outlet in the plug to the point it could not be used by other three plug connections.

Other Thoughts: I had two of these units connected to a new Netgear wireless router and it heater the router up to the point that it was hot to the touch. Additionally this increased heat caused the WiFi to degrade to a point that units trying to connect to in the same room would not connect. Once I disconnected the ZyXEL units from the router and it cooled down (no heat to the touch) WiFi functioned as expected.

This seemed like a really good option, but after seeing the results, I'm going to run good old dependable Ethernet cables.

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 2/7/2016 9:04:15 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsMaximum Speed From This Powerline Adapter

Pros: I purchased two sets after getting inconsistent speeds with the TP-Link products I was using. My Internet cable speed (Comcast) is 88-89 Mbps and only one of the three TP-Link adapters tested that fast. The other two never speed-tested past 65 Mbps for some reason. I received and installed the adapters today and am happy to say that all three units speed tested at the 88-89 Mbps speed that I get on my desktop that is connected to my modem. I watched a TV show using the Crackle App and the picture quality was much better with the increased speed.

Cons: The unit has different light colors based on the speed. For some reason, one adapter occasionally turns orange (20-80 Mbps) but the speed tests at the maximum, 88-89 Mbps.

Other Thoughts: I am happy with this purchase. Worked as expected.

Side note. I do not use the CAT-5 cables that were included. I have CAT-7 cables and used them instead.

Did you find this review helpful? Yes No
